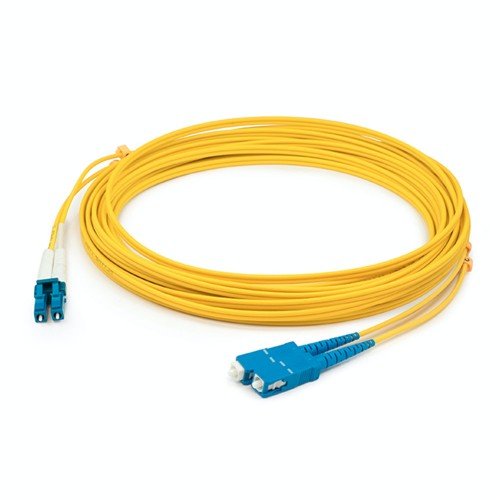

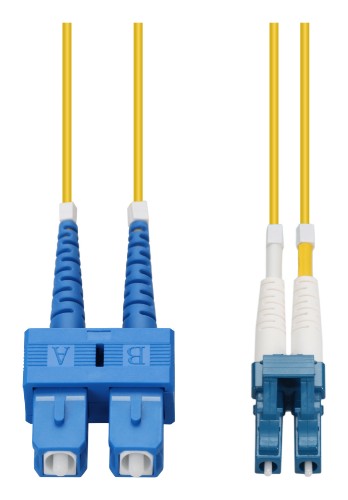

AddOn Networks ADD-SC-LC-70M9SMFP InfiniBand/fibre optic cable 2755.9" (70 m) OFNR Yellow
104.01 CAD
AddOn Networks ADD-SC-LC-70M9SMFP InfiniBand/fibre optic cable 2755.9" (70 m) OFNR Yellow
104.01 CAD
AddOn Networks ADD-SC-LC-70M9SMFP InfiniBand/fibre optic cable 2755.9" (70 m) OFNR Yellow
Enjoy Free Shipping on orders over 2000 CAD
Shipping time varies based your on location.
Ships to: Canada & USA via UPS, DHL, & Canada Post.
Fast Dispatch: Orders before 2 PM EST process same-day.
Options: Standard (Ground) and Express (Air) shipping available.
Heavy Items: Heavy freight usually requires1-2 extra days for Processing
Return Period: Request a return within 14 days of delivery.
Restocking Fee: 20% fee applies to non-defective/change-of-mind returns.
Condition: Items must be returned in original packaging (New or Like New).
Final Sale: Software, licenses, and special orders cannot be returned.
| Features | |
|---|---|
| Cable length | 2755.9" (70 m) |
| Connector material | Ceramic |
| Fibre optic type | OS2 |
| Return loss | 30 dB |
| Connector 1 | LC |
| Connector 2 | SC |
| Cable type | OFNR |
| Full duplex | Yes |
| Core diameter | 9 µm |
| Cladding diameter | 125 µm |
| Insertion loss | 0.35 dB |
| Fiber mode structure | Single-mode |
| Data transfer rate | 10 Gbit/s |
| Compressive strength | 10 |
| Wavelengths supported | 1310,1550 nm |
| Product colour | Yellow |
| Connector 2 gender | Male |
| Connector 1 gender | Male |
| Operating temperature (T-T) | 0 - 60 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Certification | CE, ISO/IEC 11801, TIA/EIA-568-C.3, TIA-604-5 (FOCIS-5), TIA/EIA-568-C.1, GR-409-CORE, ICEA S-83-596 |
| Sustainability | |
| Doesn't contain | Halogen |
| Certificates | |
| Certification | CE, ISO/IEC 11801, TIA/EIA-568-C.3, TIA-604-5 (FOCIS-5), TIA/EIA-568-C.1, GR-409-CORE, ICEA S-83-596 |
| Compliance certificates | RoHS |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 60 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Weight & dimensions | |
| Cable diameter | 0.0787" (2 mm) |
| Cable length | 2755.9" (70 m) |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Technical details | |
| Doesn't contain | Halogen |
| Compliance certificates | RoHS |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
| Shipping (inner) case width | 2.75" (6.99 cm) |
| Shipping (inner) case length | 4.76" (12.1 cm) |
| Shipping (inner) case height | 1.2" (3.05 cm) |
