Logitech 960-001320 video conferencing system Ethernet LAN Group video conferencing system
1/5

Logitech 960-001320 video conferencing system Ethernet LAN Group video conferencing system

Part number 960-001320
5,679.73 CAD
Taxes and shipping calculated at checkout.
5 left

Enjoy Free Shipping on orders over 2000 CAD

Shipping time varies based your on location.

Specifications
Weight
9.275 kg
Shipping + Returns

Shipping Policy

Ships to: Canada & USA via UPS, DHL, & Canada Post.

Fast Dispatch: Orders before 2 PM EST process same-day.

Options: Standard (Ground) and Express (Air) shipping available.

Heavy Items: Heavy freight usually requires1-2 extra days for Processing

Returns & Refunds

Return Period: Request a return within 14 days of delivery.

Restocking Fee: 20% fee applies to non-defective/change-of-mind returns.

Condition: Items must be returned in original packaging (New or Like New).

Final Sale: Software, licenses, and special orders cannot be returned.

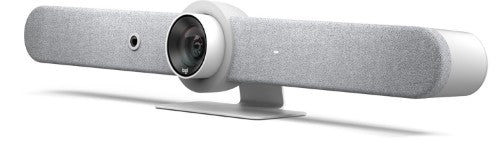

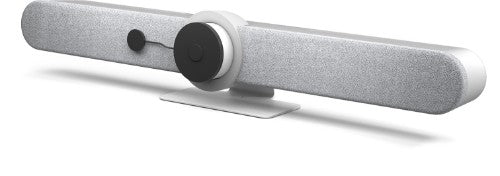

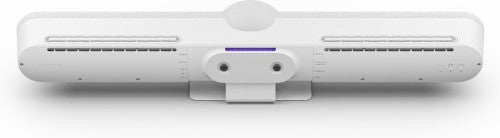

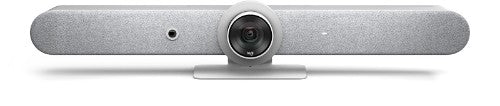

Logitech 960-001320 Rally Bar is Logitech's premier, all-in-one video bar for midsize meeting rooms. Brilliant optics, powerful audio, and remarkable - White. All-in-one video bar features an advanced microphone array, room-filling speakers, and a real PTZ camera in a sleek, easy-to install form factor. Simple to set up with a dedicated PC, laptop, or in appliance mode for a computer-free deployment option. Thoughtful cable management lets you route cables from above or below to minimize visible cabling and prevent accidental disconnections. Multiple mounting options, including available Wall and TV Mounts, provide a finished look and no-drill options for both meeting rooms and mobile carts. Motorized PTZ lens delivers expansive room coverage, outstanding color, and exceptional accuracy at resolutions up to 4K. Always-on AI Viewfinder provides persistent awareness for Right Sight autoframing and room utilization metrics like people count. High-performance speakers, adaptive beamforming mics, and a patented anti-vibration suspension system combine room-filling sound with exquisite sensitivity. Manage Rally Bar together with other meeting room devices in Logitech Sync to resolve issues and identify under-used and over-crowded rooms. What's in box: Rally Bar, Power supply, AC power cord, HDMI cable, USB cable, Lens caps, Remote control and User documentation. General: Built-in Components: 6 beamforming microphones, PTZ camera, 2 speakers, AI Viewfinder, cable management & retention system, table stand, Logitech CollabOS platform, Enclosure: All-in-one enclosure with integrated table stand and patented suspension system to eliminate vibration-induced camera shake and audio interference, Device Management: Logitech Sync, Displays Supported: 2 and Display Resolution: Up to 4k. Camera: Resolution: 4K, 1440p, 1080p, 900p, 720p, and SD at 30fps, Pan: motorized 25 , Tilt: motorized 15 Zoom: 15X HD zoom (5X optical, 3X digital), Diagonal Field of View: 90 , Horizontal Field of View: 82.1 , Vertical Field of View: 52.2 and Total Room Coverage: 132.1 Horizontal x 82.2 Vertical. Speakers: Drivers: Two 2.7" (70mm), Drivers: Two 2.7" (70mm), Output: 90dB SPL @1W, 99dB SPL @8.0W, both +/-2dB at meter, Sensitivity: 90+/-3dB SPL at 1W, meter, THD: 1kHz < 2%,Speaker sampling rate: 48 kHz. Microphones: Frequency response: 90Hz - 16kHz, Sensitivity: >-36dBFS +/-1dB @ 1Pa, Microphone data rate output: 48 kHz, Pickup range: 15 ft / 4.5m, Beamforming elements: Six omnidirectional digital MEMS microphones forming five adaptive acoustic broadside beams Audio processing: AEC (Acoustic Echo Cancellation), VAD (Voice Activity Detector) Noise suppression: AI filter, Add-on Mics: Supports up to 3 additional Rally Mic Pods for larger conference rooms. Interfaces: HDMI Out: 2, HDMI In: 1, USB 3.0: Type A (3), Type C (1), Network: 10/100/1G Ethernet, WiFi: 802.11a/b/g/n/ac (MIMO), External Mic Input: Yes (proprietary input supports optional Rally Mic Pod, Rally Mic Pod Hub, and Rally Mic Pod Extension, Cable), Remote Control: Bluetooth Low Energy Power & Cables, Power Supply: Auto-sensing, Operating voltage/power: 100-240V, 19V, 4.74A, Power Supply Dimensions: 127mm x 51mm x 30mm, DC Cable: 1.5m / 4.9 ft, AC Cable: 1m / 3.28 ft, HDMI 1.4 cable: 2m / 6.5 ft,USB A to USB C 3.0 cable: 2.2m / 7.2 ft, Environmental Operating Temperature: 0 to 40 C, Storage Temperature: -40 to 70 C, Humidity: 10 to 95% , BTU/hr: 57 idle, 64 in meeting Security, Full Disk Encryption: AES-128, Data Encryption: Symmetric Keys, PKI, Device Identity: Protected by device attestation, Device Access: Authenticated using API, Key Protection: Arm TrustZone, RPMP.
Performance
Product type Group video conferencing system
Product colour White
Tilt angle range -15 - 15°
PTZ control Yes
Pan range -25 - 25°
Technical details
Product type Group video conferencing system
Product colour White
Tilt angle range -15 - 15°
PTZ control Yes
Pan range -25 - 25°
Video
HD type 4K Ultra HD
Optical zoom 5x
Digital zoom 3x
Audio
Output level 92/99 dB
Line-out impedance 4 Ω
Output voltage Total Harmonic Distortion (THD) 2%
RMS rated power 8 W
Microphone pick-up range 275.6" (7 m)
Echo cancellation Yes
Built-in speaker(s) Yes
Number of speakers 2
Audio beamforming Yes
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 3
USB connector type USB Type-A, USB Type-C
HDMI ports quantity 3
Microphone in Yes
Ethernet LAN (RJ-45) ports 1
HDMI output ports quantity 2
HDMI input ports quantity 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity 1
Network
Ethernet LAN Yes
Ethernet LAN data rates 10,100,1000 Mbit/s
Wi-Fi Yes
Wi-Fi standards 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Security algorithms 128-bit AES
Camera
Remote control interface Bluetooth
Optical zoom 5x
Digital zoom 3x
Vertical field of view 52.2°
Diagonal field of view 90°
Camera type Single camera
Zoom capability Yes
Privacy type Privacy cover
Privacy camera Yes
Microphone
Microphone sensitivity -36 dB
Microphone frequency 90 - 16000 Hz
Microphone direction type Omnidirectional
Number of microphones 6
Features
Telepresence No
Computer system
Operating system installed CollabOS
Windows operating systems supported Yes
Mac operating systems supported MacOS
Computer case
Operating system installed CollabOS
Operational conditions
Storage temperature (T-T) -40 - 70 °C
Operating temperature (T-T) 0 - 40 °C
Operating relative humidity (H-H) 10 - 90%
Heat dissipation 64 BTU/h
Power
AC input voltage 100 - 240 V
Current 4.74 A
Power source type AC
Number of batteries supported 1
DC output voltage 19 V
Weight & dimensions
Width 35.8" (910 mm)
Depth 5.14" (130.5 mm)
Height 6.46" (164 mm)
Weight 15.6 lbs (7.08 kg)
Package width 8.15" (207 mm)
Package depth 38.9" (989 mm)
Package height 8.58" (218 mm)
Package weight 20.5 lbs (9.28 kg)
Packaging content

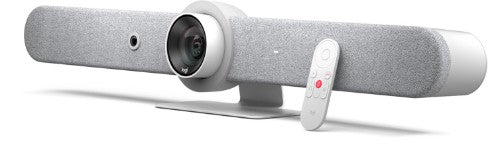

Remote control included Yes
Batteries included Yes
Packaging content Rally Bar Power supply AC power cord HDMI cable USB cable Remote control Lens caps for main camera and AI Viewfinder User documentation
Cables included AC, DC, HDMI, USB Type-A to USB Type-C
Power cable length 98.4" (2.5 m)
HDMI cable length 78.7" (2 m)
AC adapter included Yes
Quick start guide Yes
