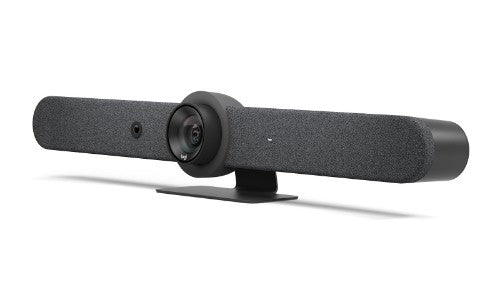

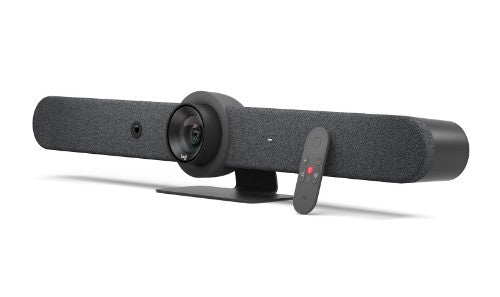

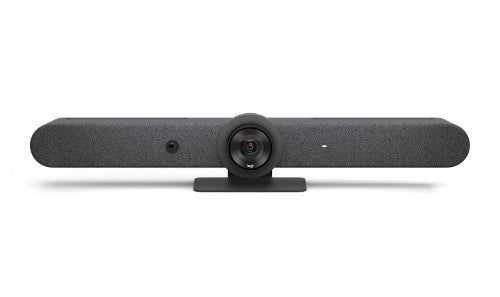

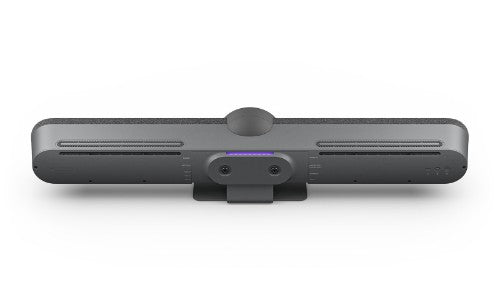

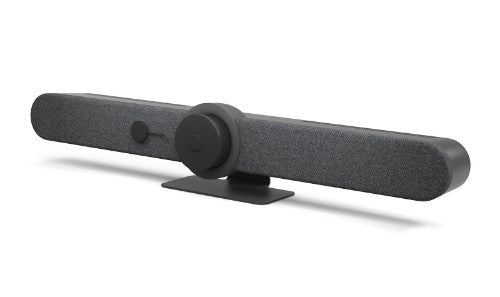

Logitech 960-001308 Rally Bar is Logitech's premier, all-in-one video bar for midsize meeting rooms. Brilliant optics, powerful audio, and remarkable - Graphite. All-in-one video bar features an advanced microphone array, room-filling speakers, and a real PTZ camera in a sleek, easy-to install form factor. Simple to set up with a dedicated PC, laptop, or in appliance mode for a computer-free deployment option. Thoughtful cable management lets you route cables from above or below to minimize visible cabling and prevent accidental disconnections. Multiple mounting options, including available Wall and TV Mounts, provide a finished look and no-drill options for both meeting rooms and mobile carts. Motorized PTZ lens delivers expansive room coverage, outstanding color, and exceptional accuracy at resolutions up to 4K. Always-on AI Viewfinder provides persistent awareness for Right Sight autoframing and room utilization metrics like people count. High-performance speakers, adaptive beamforming mics, and a patented anti-vibration suspension system combine room-filling sound with exquisite sensitivity. Manage Rally Bar together with other meeting room devices in Logitech Sync to resolve issues and identify under-used and over-crowded rooms. What's in box: Rally Bar, Power supply, AC power cord, HDMI cable, USB cable, Lens caps, Remote control and User documentation. General: Built-in Components: 6 beamforming microphones, PTZ camera, 2 speakers, AI Viewfinder, cable management & retention system, table stand, Logitech CollabOS platform, Enclosure: All-in-one enclosure with integrated table stand and patented suspension system to eliminate vibration-induced camera shake and audio interference, Device Management: Logitech Sync, Displays Supported: 2 and Display Resolution: Up to 4k. Camera: Resolution: 4K, 1440p, 1080p, 900p, 720p, and SD at 30fps, Pan: motorized 25 , Tilt: motorized 15 Zoom: 15X HD zoom (5X optical, 3X digital), Diagonal Field of View: 90 , Horizontal Field of View: 82.1 , Vertical Field of View: 52.2 and Total Room Coverage: 132.1 Horizontal x 82.2 Vertical. Speakers: Drivers: Two 2.7" (70mm), Drivers: Two 2.7" (70mm), Output: 90dB SPL @1W, 99dB SPL @8.0W, both +/-2dB at meter, Sensitivity: 90+/-3dB SPL at 1W, meter, THD: 1kHz < 2%,Speaker sampling rate: 48 kHz. Microphones: Frequency response: 90Hz - 16kHz, Sensitivity: >-36dBFS +/-1dB @ 1Pa, Microphone data rate output: 48 kHz, Pickup range: 15 ft / 4.5m, Beamforming elements: Six omnidirectional digital MEMS microphones forming five adaptive acoustic broadside beams Audio processing: AEC (Acoustic Echo Cancellation), VAD (Voice Activity Detector) Noise suppression: AI filter, Add-on Mics: Supports up to 3 additional Rally Mic Pods for larger conference rooms. Interfaces: HDMI Out: 2, HDMI In: 1, USB 3.0: Type A (3), Type C (1), Network: 10/100/1G Ethernet, WiFi: 802.11a/b/g/n/ac (MIMO), External Mic Input: Yes (proprietary input supports optional Rally Mic Pod, Rally Mic Pod Hub, and Rally Mic Pod Extension, Cable), Remote Control: Bluetooth Low Energy Power & Cables, Power Supply: Auto-sensing, Operating voltage/power: 100-240V, 19V, 4.74A, Power Supply Dimensions: 127mm x 51mm x 30mm, DC Cable: 1.5m / 4.9 ft, AC Cable: 1m / 3.28 ft, HDMI 1.4 cable: 2m / 6.5 ft,USB A to USB C 3.0 cable: 2.2m / 7.2 ft, Environmental Operating Temperature: 0 to 40 C, Storage Temperature: -40 to 70 C, Humidity: 10 to 95% , BTU/hr: 57 idle, 64 in meeting Security, Full Disk Encryption: AES-128, Data Encryption: Symmetric Keys, PKI, Device Identity: Protected by device attestation, Device Access: Authenticated using API, Key Protection: Arm TrustZone, RPMP.

Performance
Product type	Group video conferencing system
Product colour	Graphite
Tilt angle range	-15 - 15°
Pan range	-25 - 25°
Technical details
Product type	Group video conferencing system
Product colour	Graphite
Tilt angle range	-15 - 15°
Pan range	-25 - 25°
Video
HD type	4K Ultra HD
Optical zoom	5x
Digital zoom	3x
Supported video modes	720p, 900p, 1440p, 2160p
Maximum frame rate	30 fps
Audio
Output level	90/99 dB
Output voltage Total Harmonic Distortion (THD)	2%
Microphone pick-up range	177.2" (4.5 m)
Built-in speaker(s)	Yes
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
Interface module
Interface module HDMI ports quantity	3
Interface module HDMI input ports quantity	1
Interface module HDMI output ports quantity	2
Network
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Wi-Fi	Yes
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Security algorithms	192-bit AES
Camera
Field of view (FOV) angle	90°
Horizontal field of view	82.1°
Remote control interface	Bluetooth
Optical zoom	5x
Digital zoom	3x
Microphone
Microphone sensitivity	-36 dB
Microphone frequency	90 - 16000 Hz
Number of microphones	6
Features
Telepresence	No
Logistics data
Master (outer) case width	11.8" (300 mm)
Master (outer) case gross weight	10.4 lbs (4.73 kg)
Master (outer) case length	13" (330 mm)
Master (outer) case height	6.3" (160 mm)
Computer system
Windows operating systems supported	Yes
Mac operating systems supported	MacOS
Operational conditions
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 95%
Heat dissipation	64 BTU/h
Power
DC input voltage	19 V
AC input voltage	100/240 V
Current	4.754 A
Number of batteries supported	1
Weight & dimensions
Package width	8.15" (207 mm)
Package depth	38.9" (989 mm)
Package height	8.58" (218 mm)
Package weight	20.5 lbs (9.28 kg)
Packaging content
Remote control included	Yes
Batteries included	Yes
Packaging content	Rally Bar Power supply AC power cord HDMI cable USB cable Remote control Lens caps for main camera and AI Viewfinder User documentation
Cables included	AC, DC, HDMI, USB Type-A to USB Type-C
Power cable length	98.4" (2.5 m)
HDMI cable length	78.7" (2 m)
