In stock
Boasting speeds of up to 35ppm and a built-in Automatic Document Feeder, the DS-530II will easily scan large amounts of documents in no time.
With a slow mode feature1 for scanning crumpled or fragile documents, the ability to scan challenging media has never been easier. The Active Separation Roller System prevents tedious document double feeds ensuring every piece of paper gets scanned and the Double Feed Detection Skip (DFDS) means you can scan difficult media like envelopes or documents with post-it notes. Auto Scan Mode enables the processing of a vast number of documents as manageable amounts, enabling them to be scanned as one file.

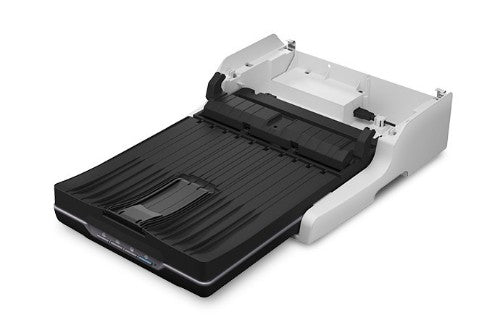

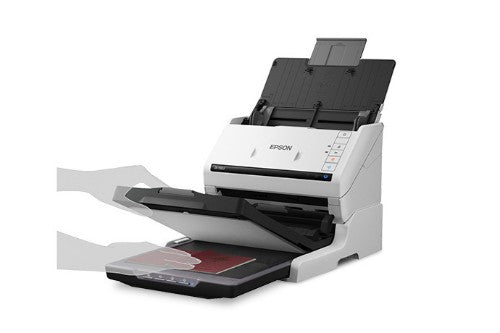

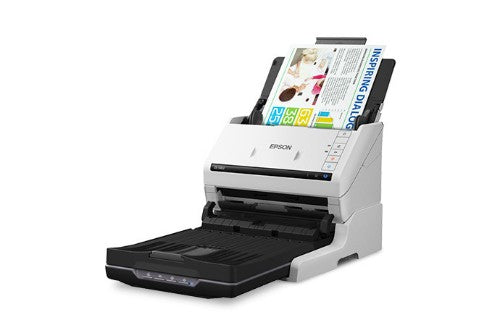

The optional flatbed scanner conversion kit allows effective document processing from stamps to passports and books. Single-pass double-sided scanning ensures rapid document processing, while it's possible to scan a versatile array of media such as paper as thin as 27gsm, or thick card at 413gsm. The A3 carrier sheet speeds up the process by automatically stitching larger documents back together digitally.

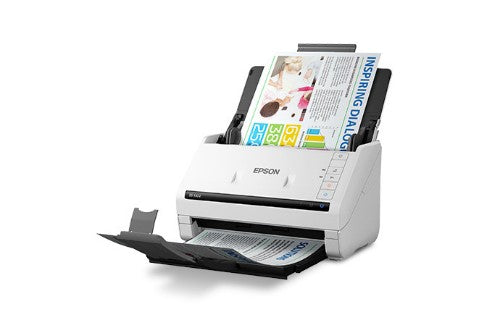

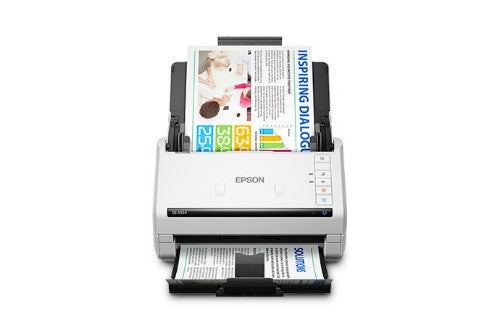

Epson WorkForce B11B261202 scanner Sheet-fed scanner 600 x 600 DPI A4 White
Part number
B11B261202
$556.94 CAD
3-color RGB LED, CIS, 1200 DPI, USB 3.0, 24 V DC
Key Features
- Exceptional Speed – 35ppm / 70 ipm1 scan speeds for efficient and productive scanning
- Optional Network Adaptor – One single unit can be connected to a network so the unit can be shared by multiple users
- Optional Flatbed Scanner Dock – This enables high speed sheet-fed scanning and flatbed scanning for passports, booklets and fragile paper like damaged receipts with one driver
- Scan directly to popular cloud services – scan to Dropbox, Sharepoint®, Evernote®, Google Drive® for efficient file sharing2
- Scan to searchable PDF's – scan and edit documents; save scanned documents as PDF files. OCR software included for easy filing
- Advanced colour and image adjustments – Colour Enhance, Colour Dropout, automatic paper size detection for innovative and productive document management
- Connect to document management software – TWAIN and ISIS drivers (ISIS available via web download) for seamless integration between the scanner and custom built business applications
- 50 sheet ADF capacity – for rapid capture of large multi-page documents
- Powerful Duty Cycle – Scan up to 4,000 sheets per day
Description
The EPSON WorkForce DS-530II document scanner takes efficiency to a new level for business environments where fast and easy document management is required. Scan documents, business cards, and identification cards directly to popular cloud services with the included software. The scanner is very easy to use and includes intuitive one-touch scanning.Boasting speeds of up to 35ppm and a built-in Automatic Document Feeder, the DS-530II will easily scan large amounts of documents in no time.
With a slow mode feature1 for scanning crumpled or fragile documents, the ability to scan challenging media has never been easier. The Active Separation Roller System prevents tedious document double feeds ensuring every piece of paper gets scanned and the Double Feed Detection Skip (DFDS) means you can scan difficult media like envelopes or documents with post-it notes. Auto Scan Mode enables the processing of a vast number of documents as manageable amounts, enabling them to be scanned as one file.

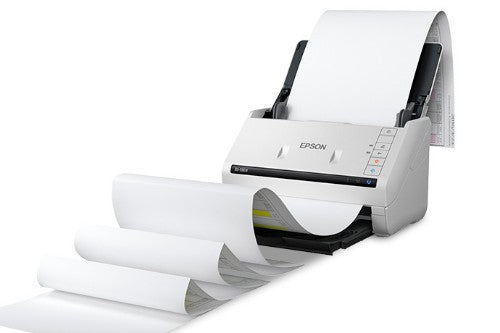

The optional flatbed scanner conversion kit allows effective document processing from stamps to passports and books. Single-pass double-sided scanning ensures rapid document processing, while it's possible to scan a versatile array of media such as paper as thin as 27gsm, or thick card at 413gsm. The A3 carrier sheet speeds up the process by automatically stitching larger documents back together digitally.
Specifications
| Scanning | |
|---|---|
| Maximum scan size | 8.5 x 240" (215.9 x 6096 mm) |
| Optical scanning resolution | 600 x 600 DPI |
| Colour scanning | Yes |
| Duplex scanning | Yes |
| Input colour depth | 30 bit |
| Output colour depth | 24 bit |
| Output greyscale depth | 24 bit |
| ADF scan speed (b/w, A4) | 37 ppm |
| Duplex ADF scan speed (b/w, A4) | 70 ipm |
| Input greyscale depth | 30 bit |
| Design | |
| Built-in display | No |
| Product colour | White |
| Scanner type | Sheet-fed scanner |
| Performance | |
| Sensor type | CIS |
| Light source | RGB LED |
| Daily duty cycle (max) | 4000 pages |
| Scan drivers | ISIS, TWAIN |
| Button functions | Scan |
| Input capacity | |
| Auto document feeder (ADF) input capacity | 50 sheets |
| Paper handling | |
| Maximum ISO A-series paper size | A4 |
| Auto Document Feeder (ADF) media weight | 27 - 413 g/m² |
| Letter | Yes |
| Legal | Yes |
| ISO B-series sizes (B0...B9) | B5 |
| ISO A-series sizes (A0...A9) | A4, A5, A6 |
| Ports & interfaces | |
| USB port | Yes |
| USB version | 3.2 Gen 1 (3.1 Gen 1) |
| Power | |
| Power supply type | AC |
| Power consumption (typical) | 11 W |
| Power consumption (standby) | 5.4 W |
| Power consumption (off) | 0.1 W |
| Input voltage | 24 V |
| Power consumption (sleep) | 1 W |
| Sleep mode | Yes |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| System requirements | |
| Windows operating systems supported | Windows 10, Windows 7, Windows 8, Windows 8.1 |
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina |
| Operational conditions | |
| Operating temperature (T-T) | 5 - 35 °C |
| Storage temperature (T-T) | 25 - 60 °C |
| Operating relative humidity (H-H) | 10 - 80% |
| Certificates | |
| Certification | RoHS |
| Weight & dimensions | |
| Width | 11.7" (296 mm) |
| Depth | 6.65" (169 mm) |
| Height | 6.93" (176 mm) |
| Weight | 8.09 lbs (3.67 kg) |
| Packaging content | |
| Bundled software | Epson Scan 2, Epson Document Capture, OpenText Captiva |
| Other features | |
| Scanner type | Sheet-fed scanner |
| Quantity per pack | 1 pc(s) |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
