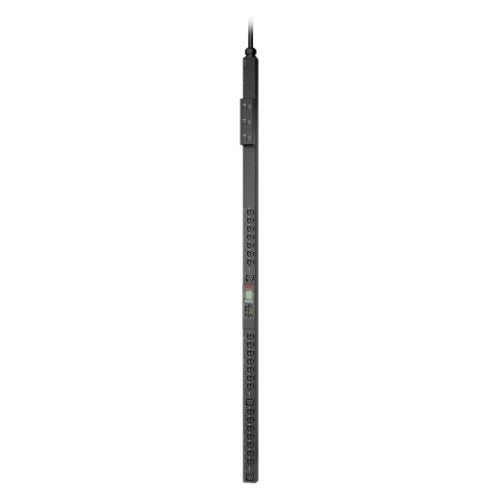

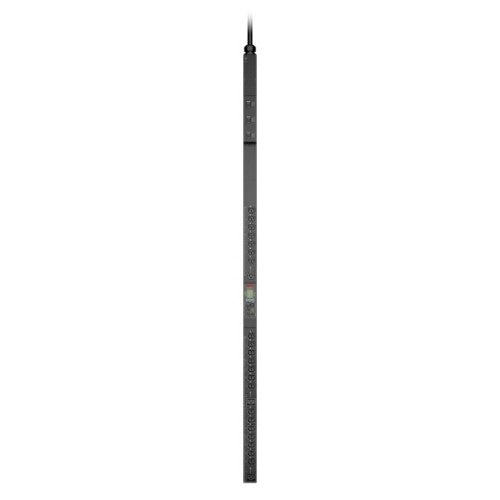

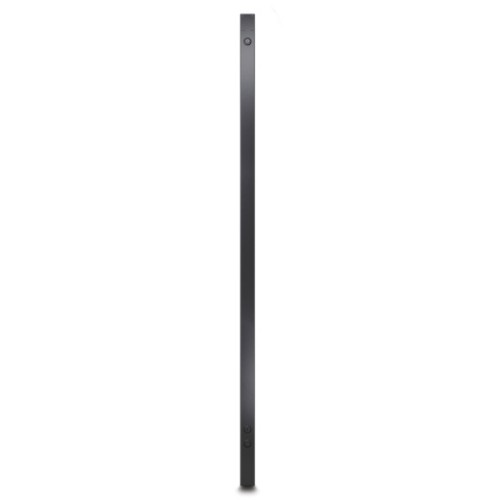

APC NetShelter 9000 power distribution unit (PDU) 24 AC outlet(s) 0U Black
2,601.88 CAD
Skip to product information
Out of stock
APC NetShelter 9000 power distribution unit (PDU) 24 AC outlet(s) 0U Black
Part number
APDU9965
2,601.88 CAD
Taxes and shipping calculated at checkout.
Enjoy Free Shipping on orders over 2000 CAD
Shipping time varies based your on location.
Specifications
Weight
10.489 kg
Shipping + Returns
Shipping Policy
Ships to: Canada & USA via UPS, DHL, & Canada Post.
Fast Dispatch: Orders before 2 PM EST process same-day.
Options: Standard (Ground) and Express (Air) shipping available.
Heavy Items: Heavy freight usually requires1-2 extra days for Processing
Returns & Refunds
Return Period: Request a return within 14 days of delivery.
Restocking Fee: 20% fee applies to non-defective/change-of-mind returns.
Condition: Items must be returned in original packaging (New or Like New).
Final Sale: Software, licenses, and special orders cannot be returned.
Field-replaceable NMC
Integrated Network Management Card/Display Module can be replaced in the field to minimize downtime disruption in the unlikely event of a failure.
High Retention Outlets
With no special power cords required, high retention outlets provide up to twice the holding force to reduce risk of accidental disconnect on 9000 series PDUs.
60C Operating Temperature
Select 9000 series PDUs provide the ability to operate in a maximum ambient air temperature of 60C (140F) at full load ensuring reliability and availability even in today's high density deployments. Other models allow up to 45C (113F).
C13/C15 and C19/C21 Hybrid Outlets
Available on select 9000 series PDUs only, Industry 1st hybrid outlets allow 60C operating temperature at full load, are fully compatible with standard C14 and C20 power cords, and are future proofed for implementation of higher temperature rated devices requiring C16 and C21 power cords.
Hydraulic Magnetic Circuit Breakers
Provide increased availability by maintaining trip current over a wide temperature range.
Integrated Network Management Card/Display Module can be replaced in the field to minimize downtime disruption in the unlikely event of a failure.
High Retention Outlets
With no special power cords required, high retention outlets provide up to twice the holding force to reduce risk of accidental disconnect on 9000 series PDUs.
60C Operating Temperature
Select 9000 series PDUs provide the ability to operate in a maximum ambient air temperature of 60C (140F) at full load ensuring reliability and availability even in today's high density deployments. Other models allow up to 45C (113F).
C13/C15 and C19/C21 Hybrid Outlets
Available on select 9000 series PDUs only, Industry 1st hybrid outlets allow 60C operating temperature at full load, are fully compatible with standard C14 and C20 power cords, and are future proofed for implementation of higher temperature rated devices requiring C16 and C21 power cords.
Hydraulic Magnetic Circuit Breakers
Provide increased availability by maintaining trip current over a wide temperature range.
| Design | |
|---|---|
| PDU types | Switched |
| Mounting | Vertical |
| Product colour | Black |
| Certification | CULus, FCC 15 A, ICES-003 |
| Rack capacity | 0U |
| Ports & interfaces | |

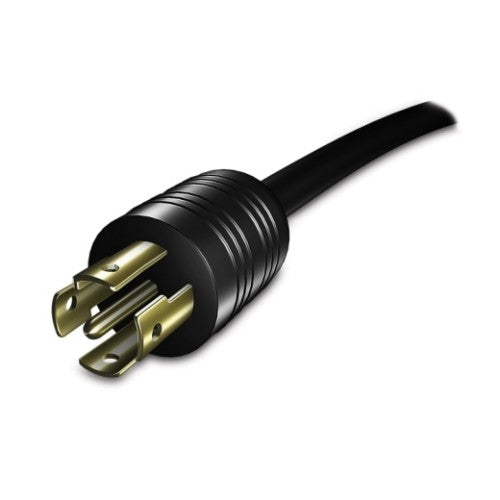

| Power plug | NEMA L21-30P |
| AC outlets quantity | 24 AC outlet(s) |
| AC outlet types | C13 coupler, C15 coupler, C19 coupler, C21 coupler |
| Features | |
| Cable length | 70.9" (1.8 m) |
| Certification | CULus, FCC 15 A, ICES-003 |
| Ergonomics | |
| Cable length | 70.9" (1.8 m) |
| Power | |
| Nominal input voltage | 208 V |
| Maximum power | 8600 W |
| Maximum current | 30 A |
| Output voltage | 208 V |
| Load capacity | 8600 VA |
| Weight & dimensions | |
| Weight | 18 lbs (8.18 kg) |
| Width | 2.2" (56 mm) |
| Depth | 2.01" (51 mm) |
| Height | 72" (1829 mm) |
| Package width | 6.5" (165 mm) |
| Package depth | 4.88" (124 mm) |
| Package height | 80.3" (2040 mm) |
| Package weight | 22.7 lbs (10.3 kg) |
| Packaging data | |
| Package width | 6.5" (165 mm) |
| Package depth | 4.88" (124 mm) |
| Package height | 80.3" (2040 mm) |
| Package weight | 22.7 lbs (10.3 kg) |
| Operational conditions | |
| Operating temperature (T-T) | -5 - 60 °C |
| Storage temperature (T-T) | -25 - 65 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 120000" (0 - 3048 m) |
| Non-operating altitude | 0 - 600000" (0 - 15240 m) |
