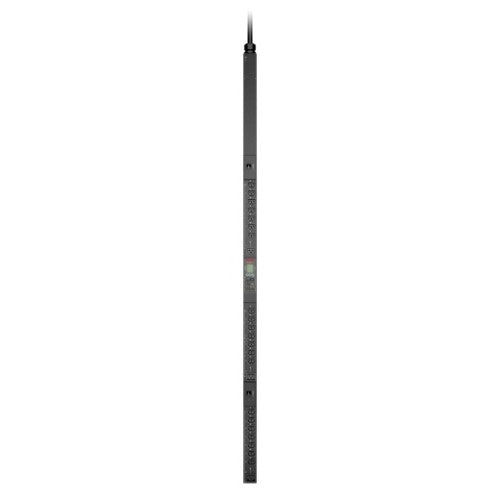

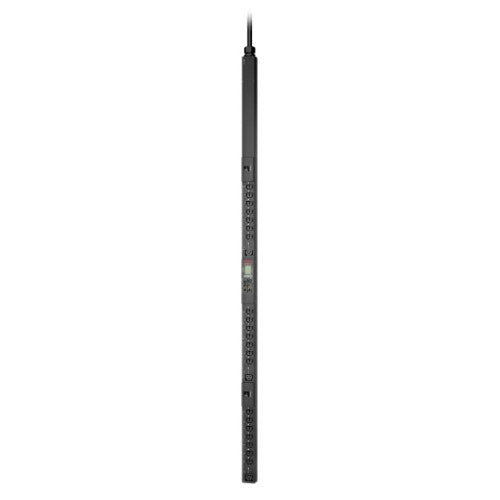

APC NetShelter™ 9000 power distribution unit (PDU) 24 AC outlet(s) 0U Black
Part number
APDU9941
$1,909.17 CAD
Rack PDU, 9000 switched, 0U, 30A, 200V and 208V, 21 C13 and C15, 3 C19 and C21 sockets
Description
The APC Switched Rack PDU distributes reliable power within a rack through a single input and multiple output receptacles The APDU9941 offers advanced load management combined with remote on/off switching control of individual outlets for power cycling, delayed power sequencing, and outlet use management The 0U PDU includes a NEMA L6-30P input plug with 3 05m (10 ft) cord, (21) IEC 60320 C13/C15 and (3) IEC 60320 C19/C21 hybrid outlet receptacles The hybrid outlets allow 60°C operating temperature at full load, are compatible with standard C14 and C20 power cords, and are future-proofed for new C16 and C21 power cords required for higher temperature rated devices The Network Management Card provides enhanced cybersecurity with secured interfaces and modified password policy The rack PDU integrates with EcoStruxure IT through Network Management Card and can be accessed, configured, and managed remotely via Web, SNMP and Command Line Interface Color user-interactive LCD interface details current, real power, voltage, and energy measurements for local user access The outlet level control allows power on/off functionality for power recycling/reboot of remote equipment and restricts unauthorized use of individual outlets The Switched Rack PDU includes a temperature/humidity sensor port, locking IEC outlets when used with locking power cords, low-profile circuit breakers and USB port for local Firmware updates The rack PDU supports daisy-chain of up to 32 PDUs on a single IP address, thereby reducing networking cost The rack PDU comes with a standard three-year warrantySpecifications
| Design | |
|---|---|
| PDU types | Switched |
| Mounting | Vertical |
| Type | Single-phase |
| Product colour | Black |
| Certification | CUL , FCC 15 A, ICES-003, PSE |
| Rack capacity | 0U |
| Ports & interfaces | |

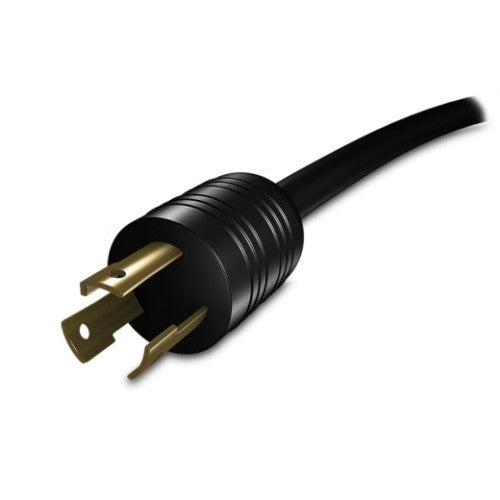

| Power plug | NEMA L6-30P |
| AC outlets quantity | 24 AC outlet(s) |
| AC outlet types | C13 coupler, C15 coupler, C19 coupler, C21 coupler |
| Ethernet LAN (RJ-45) ports | 1 |
| Features | |
| Certification | CUL , FCC 15 A, ICES-003, PSE |
| Power | |
| Nominal input voltage | 90 - 264 V |
| Maximum current | 30 A |
| Nominal output voltage | 200 - 208 V |
| Load capacity | 4992 VA |
| Weight & dimensions | |
| Weight | 18.7 lbs (8.5 kg) |
| Width | 2.17" (55 mm) |
| Depth | 1.81" (46 mm) |
| Height | 72" (1829 mm) |
| Package width | 6.5" (165 mm) |
| Package depth | 4.88" (124 mm) |
| Package height | 80.3" (2040 mm) |
| Package weight | 22 lbs (10 kg) |
| Packaging data | |
| Package width | 6.5" (165 mm) |
| Package depth | 4.88" (124 mm) |
| Package height | 80.3" (2040 mm) |
| Package weight | 22 lbs (10 kg) |
| Packaging content | |
| Manual | Yes |
| Operational conditions | |
| Operating temperature (T-T) | -5 - 60 °C |
| Storage temperature (T-T) | -25 - 65 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 120000" (0 - 3048 m) |
| Non-operating altitude | 0 - 600000" (0 - 15240 m) |
| Technical details | |
| Sustainability compliance | Yes |
| Compliance certificates | RoHS |
