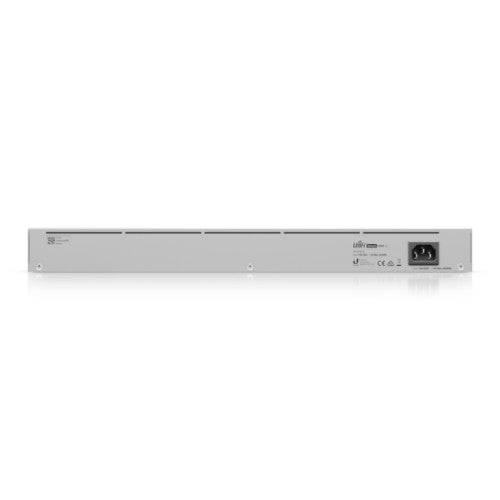

Ubiquiti UniFi USW-48 network switch Managed L2 Gigabit Ethernet (10/100/1000) Silver
Part number
USW-48
$550.00 CAD
Managed, L2, 48x Gigabit Ethernet, 4x 1G SFP, 442.4 x 285 x 43.7 mm, Silver
Key Features
- (48) Gigabit RJ45 ports
- (4) 1G SFP ports
- Layer 2 features
- Fanless, silent cooling
- 1.3" touchscreen display, supports UniFi Network AR
- Managed by UniFi Network Controller (5.13.10 or later)
Description
The UniFi Switch 48 features a rich set of Layer 2 capabilities and fanless, silent cooling for use as an access layer switch. UniFi Network Controller and UniFi Network mobile app allow admins to configure and monitor virtually all of the switch features in an intuitive graphical user interface from anywhere.Specifications
| Management features | |
|---|---|
| Switch layer | L2 |
| Switch type | Managed |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| SFP module slots quantity | 4 |
| Network | |
| 10G support | No |
| Data transmission | |
| Switching capacity | 52 Gbit/s |
| Forwarding rate | 77.376 Mpps |
| Design | |
| Rack mounting | Yes |
| Product colour | Silver |
| LED indicators | LAN, System |
| Housing material | Steel |
| Certification | CE, FCC, IC |
| Performance | |
| Firmware upgradeable | Yes |
| Fanless | Yes |
| Harmonized System (HS) code | 85176990 |
| Power | |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (max) | 40 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Operating temperature (T-T) | -15 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
| Width | 17.4" (442.4 mm) |
| Depth | 11.2" (285 mm) |
| Height | 1.72" (43.7 mm) |
| Weight | 8.6 lbs (3.9 kg) |
| Certificates | |
| Certification | CE, FCC, IC |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
