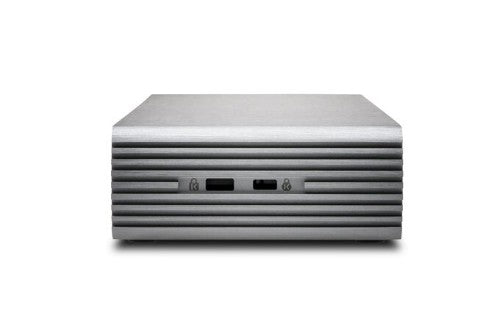

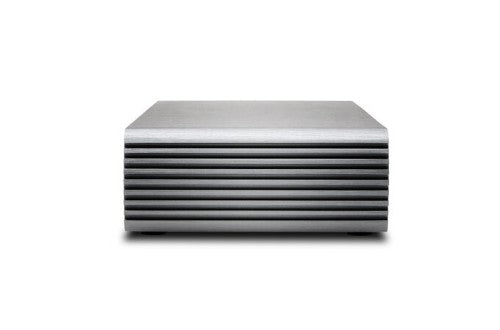

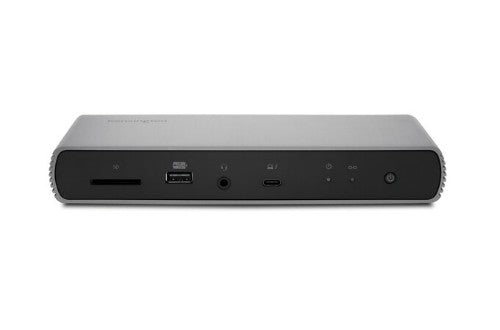

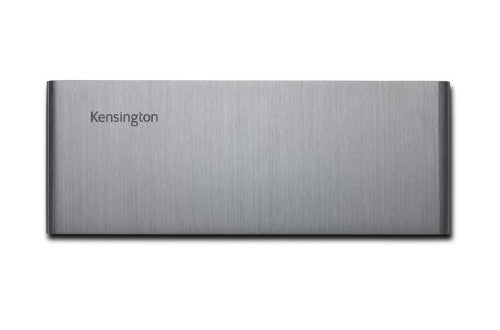

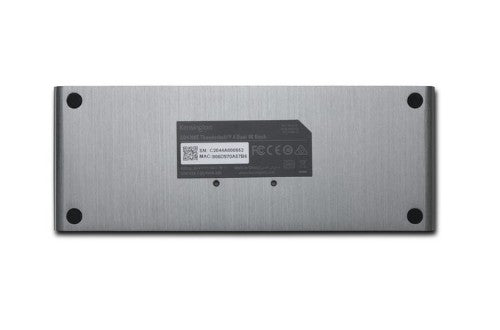

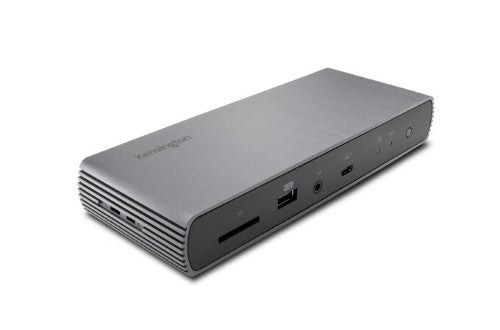

Kensington SD5700T Thunderbolt™ 4 Dual 4K Docking Station with 90W PD - Win/Mac
Part number
K35175NA
$303.89 CAD
Kensington SD5700T Thunderbolt™ 4 Dual 4K Docking Station with 90W PD - Win/Mac, Wired, Thunderbolt 4, 90 W, 3.5 mm, 10,100,1000 Mbit/s, Black, Gray
Key Features
- Best For: Thunderbolt™ 4 Windows 10 laptops and Thunderbolt™ 3 MacBooks running macOS 11 (Big Sur) or later. Supports Single 8K or Dual 4K video
- Connection Technology: Thunderbolt™ 4
- Power Delivery: Supports USB-C PD 3.0 (90W of laptop charging)
- Compatibility: Windows 10 and macOS 11 (Big Sur) or later
- of Monitors Supported: 2
- Video Ports: Thunderbolt™ 4 ports
- Plug & Play: Yes, optional Kensington DockWorks™ software is recommended for the best connection, performance, and security from your Kensington docking station
- System Requirements: Compatible with laptops equipped with Thunderbolt 4 ports
Description
Kensington SD5700T Thunderbolt™ 4 Dual 4K Docking Station with 90W PD - Win/Mac. Connectivity technology: Wired, Host interface: Thunderbolt 4, USB Power Delivery up to: 90 W. Ethernet LAN data rates: 10,100,1000 Mbit/s. Product color: Black, Gray, Compatible memory cards: SD, Data transfer rate: 40 Gbit/s. AC input voltage: 100 - 240 V, Input current: 2.5 A, Output voltage: 20 V. Windows operating systems supported: Windows 10, Mac operating systems supported: Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14...Specifications

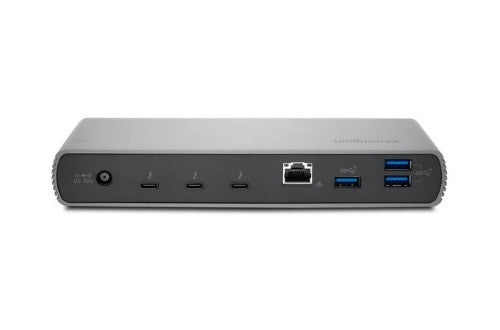

| Ports & interfaces | |
|---|---|
| Connectivity technology | Wired |
| USB 2.0 ports quantity | 1 |
| Host interface | Thunderbolt 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| Headphone connectivity | 3.5 mm |
| DC-in jack | Yes |
| Combo headphone/mic port | Yes |
| USB Power Delivery | Yes |
| USB Power Delivery up to | 90 W |
| Thunderbolt 4 ports quantity | 4 |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN (RJ-45) ports | 1 |
| Performance | |
| Product colour | Black, Gray |
| Card reader integrated | Yes |
| Compatible memory cards | SD |
| Compatibility | FCC, IC, CB, RoHS, ACCO RSL |
| Cable lock slot | Yes |
| Number of displays supported | 2 |
| Country of origin | China |
| Plug and Play | Yes |
| Maximum digital resolution | 7680 x 4320 pixels |
| LED indicators | Link, Power |
| Data transfer rate | 40 Gbit/s |
| Cable lock slot type | Kensington |
| HD type | 8K Ultra HD |
| Housing material | Acrylonitrile butadiene styrene (ABS), Aluminum, Polycarbonate (PC) |
| Key lock | Yes |
| Storage | |
| Card reader integrated | Yes |
| Compatible memory cards | SD |
| Power | |
| AC input voltage | 100 - 240 V |
| Input current | 2.5 A |
| Output voltage | 20 V |
| Output current | 9 A |
| Software | |
| Windows operating systems supported | Windows 10 |
| Mac operating systems supported | Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | 0 - 60 °C |
| Weight & dimensions | |
| Width | 7.68" (195 mm) |
| Depth | 2.95" (75 mm) |
| Height | 1.18" (30 mm) |
| Weight | 15.3 oz (435 g) |
| Package width | 8.46" (215 mm) |
| Package depth | 5.51" (140 mm) |
| Package height | 4.13" (105 mm) |
| Package weight | 3.75 lbs (1.7 kg) |
| Design | |
| Product colour | Black, Gray |
| Cable lock slot | Yes |
| Country of origin | China |
| Windows operating systems supported | Windows 10 |
| Mac operating systems supported | Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina |
| LED indicators | Link, Power |
| Cable lock slot type | Kensington |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Package width | 8.46" (215 mm) |
| Package depth | 5.51" (140 mm) |
| Package height | 4.13" (105 mm) |
| Package weight | 3.75 lbs (1.7 kg) |

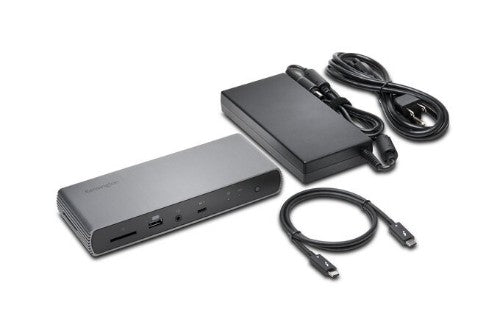

| Packaging content | |
| Quick start guide | Yes |
| Cables included | Thunderbolt |
| AC adapter included | Yes |
| Warranty card | Yes |
| Quantity per pack | 1 pc(s) |
