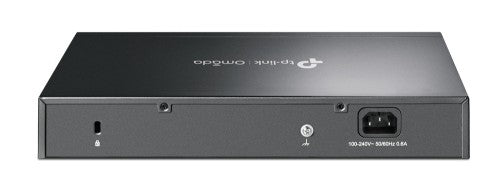

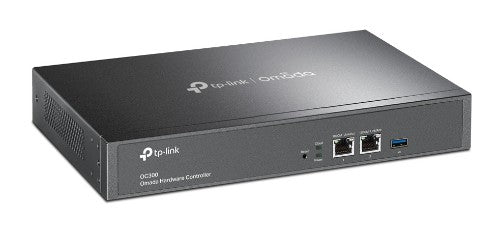

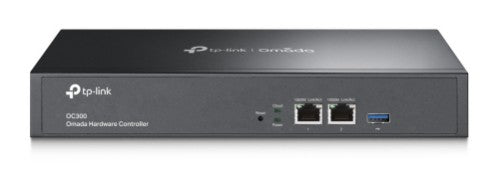

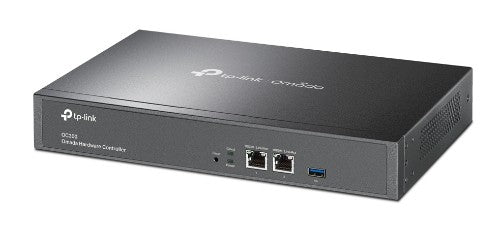

TP-Link Omada OC300 gateway/controller 10, 100, 1000 Mbit/s
192.74 CAD
Skip to product information
In stock
TP-Link Omada OC300 gateway/controller 10, 100, 1000 Mbit/s
Part number
OC300
192.74 CAD
Taxes and shipping calculated at checkout.
Enjoy Free Shipping on orders over 2000 CAD
Shipping time varies based your on location.
Specifications
Weight
1.91 kg
Shipping + Returns
Shipping Policy
Ships to: Canada & USA via UPS, DHL, & Canada Post.
Fast Dispatch: Orders before 2 PM EST process same-day.
Options: Standard (Ground) and Express (Air) shipping available.
Heavy Items: Heavy freight usually requires1-2 extra days for Processing
Returns & Refunds
Return Period: Request a return within 14 days of delivery.
Restocking Fee: 20% fee applies to non-defective/change-of-mind returns.
Condition: Items must be returned in original packaging (New or Like New).
Final Sale: Software, licenses, and special orders cannot be returned.
- Centralized Management: Supports up to 500 Omada access points, 100 Omada routers, a maximum of 100 Omada switches, and a maximum of 5 certain DeltaStream GPON OLTs†
- Free Cloud Access: Manage and monitor with the Omada app or Web UI from anywhere, anytime
- On-Premises Management: Locally monitor and manage devices with the ultimate security and stability
- Industry-Leading Hardware Design: A powerful chipset, durable metal casing, USB 3.0 port for auto backup, and two Gigabit ports
- Easy and Intelligent Network Monitoring: The easy-to-use dashboard makes it simple to see the real-time network status and traffic distribution
- Real-Time Network Topology: Helps IT admins quickly see and troubleshoot connections at a glance
- Easier Network Maintenance: WiFi heatmap simulator, visualizable network report, and batch & multi-site management benefit network maintenance

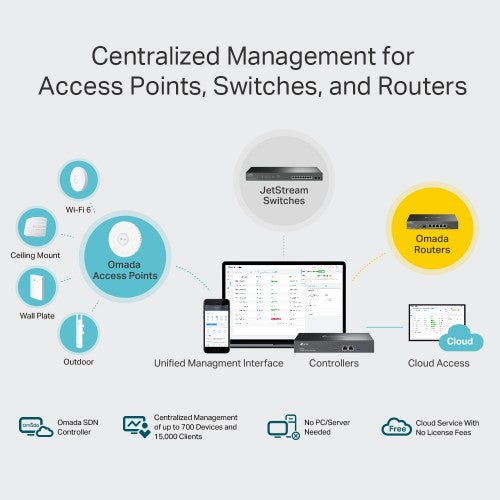

Centralized Management for
Access Points, Switches, and Routers
OC300, the professional on-premises hardware controller for the Omada Software Defined Networking (SDN) platform, provides 100% centralized management of Omada access points, Omada switches, and Omada routers—all controlled from a single interface.

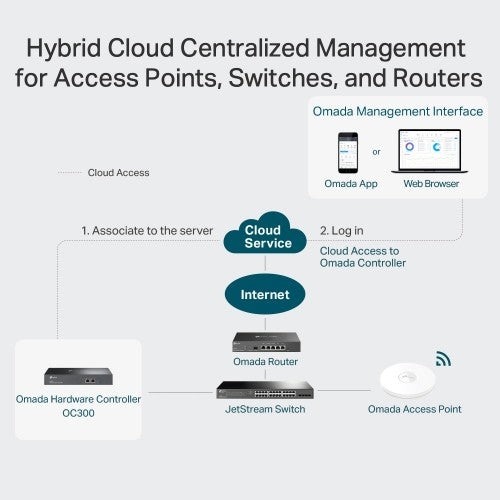

Hybrid Cloud for Maximum Convenience
Featuring hybrid cloud technology, the Omada Hardware Controller OC300 allows you to remotely control the whole network wherever you are in the world with cloud access. Locally manage devices with the ultimate security and stability.

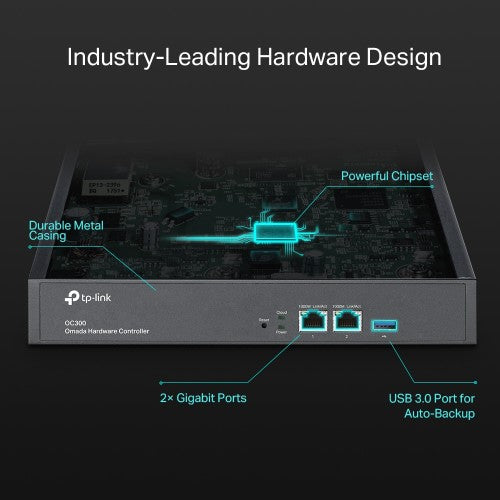

Industry-Leading Hardware Design
Equipped with an advanced design and the latest chipset, OC300 has enough processing power to support the massive management of your business network. Rackmount/desktop design benefits easier and flexible installation.
Easy and Intelligent Network Monitoring
The easy-to-use dashboard makes it easy to see your real-time network status; check network usage and traffic distribution; receive network condition logs, abnormal event warnings, and notifications; or even track key data for better business results. Network topology helps IT admins quickly see and troubleshoot connections at a glance.
Multiple Factors Guarantee Easier Network Maintenance
WiFi Heatmap Simulator
Generate a Wi-Fi solution by simulating the wireless coverage effect of APs in the actual site. Determine the appropriate number and location of APs according to the coverage requirements.
Visualizable Network Report for Conveniently Summary
Help service providers easily report network service quality to their customers through reports. IT administrators also easily report network operation status through reports.
Batch Management, Multi-Site Management, and Remote Firmware Updates
Improve network maintenance without needing to configure on-site or manage devices one by one.
Powerful Scheduling
Maintain your network easily with more agile and effective processing. No manual tasks required.
Greater Convenience with the Omada App
Remotely access and configure your whole network with a tap of your phone from anywhere in the world.
Access Points, Switches, and Routers
OC300, the professional on-premises hardware controller for the Omada Software Defined Networking (SDN) platform, provides 100% centralized management of Omada access points, Omada switches, and Omada routers—all controlled from a single interface.
Hybrid Cloud for Maximum Convenience
Featuring hybrid cloud technology, the Omada Hardware Controller OC300 allows you to remotely control the whole network wherever you are in the world with cloud access. Locally manage devices with the ultimate security and stability.
Industry-Leading Hardware Design
Equipped with an advanced design and the latest chipset, OC300 has enough processing power to support the massive management of your business network. Rackmount/desktop design benefits easier and flexible installation.
Easy and Intelligent Network Monitoring
The easy-to-use dashboard makes it easy to see your real-time network status; check network usage and traffic distribution; receive network condition logs, abnormal event warnings, and notifications; or even track key data for better business results. Network topology helps IT admins quickly see and troubleshoot connections at a glance.
Multiple Factors Guarantee Easier Network Maintenance
WiFi Heatmap Simulator
Generate a Wi-Fi solution by simulating the wireless coverage effect of APs in the actual site. Determine the appropriate number and location of APs according to the coverage requirements.
Visualizable Network Report for Conveniently Summary
Help service providers easily report network service quality to their customers through reports. IT administrators also easily report network operation status through reports.
Batch Management, Multi-Site Management, and Remote Firmware Updates
Improve network maintenance without needing to configure on-site or manage devices one by one.
Powerful Scheduling
Maintain your network easily with more agile and effective processing. No manual tasks required.
Greater Convenience with the Omada App
Remotely access and configure your whole network with a tap of your phone from anywhere in the world.
| Design | |
|---|---|
| LED indicators | Yes |
| Certification | CE, FCC, RoHS |
| Rack capacity | 1U |
| Product colour | Black |
| Performance | |
| Built-in processor | Yes |
| Number of processors installed | 1 |
| Internal memory type | DDR4 |
| Internal memory | 2000 MB |
| Flash memory | 2 MB |
| Control display unit | No |
| Processor manufacturer | ARM |
| Processor family | ARM Cortex |
| Certification | CE, FCC, RoHS |
| Rack capacity | 1U |
| Product colour | Black |
| Protocols | |
| Supported protocols | Routing/NAT/Session Limit/Bandwidth Control VPN (IPSec/L2TP/PPTP/OpenVPN) RADIUS (Authentication/MAC Auth/Accounting) 802.1x |
| Network | |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| VPN support | VPN (IPSec/L2TP/PPTP/OpenVPN) |
| Security | |
| VPN support | VPN (IPSec/L2TP/PPTP/OpenVPN) |
| Security algorithms | SNMP, SSH |
| MAC address filtering | Yes |
| Network address translation (NAT) | Yes |
| Access Control List (ACL) | Yes |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| Management features | |
| Web-based management | Yes |
| Traffic statistics | Yes |
| Syslog | Yes |
| Power | |
| Power consumption (typical) | 9 W |
| Input voltage | 100 - 240 V |
| Input frequency | 50/60 Hz |
| Power consumption (max) | 14.8 W |
| Weight & dimensions | |
| Width | 11.6" (294 mm) |
| Height | 1.73" (44 mm) |
| Depth | 7.09" (180 mm) |
| Package weight | 4.21 lbs (1.91 kg) |
| Package width | 9.84" (250 mm) |
| Package height | 3.15" (80 mm) |
| Package depth | 15.7" (400 mm) |
| Packaging data | |
| Package weight | 4.21 lbs (1.91 kg) |
| Package width | 9.84" (250 mm) |
| Package height | 3.15" (80 mm) |
| Package depth | 15.7" (400 mm) |
| Packaging content | |
| Quick installation guide | Yes |
| Cables included | LAN (RJ-45) |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Technical details | |
| Built-in processor | Yes |
| Package weight | 4.21 lbs (1.91 kg) |
| Number of processors installed | 1 |
| Indication | |
| LED indicators | Yes |
| Memory | |
| Internal memory type | DDR4 |
| Internal memory | 2000 MB |
| Flash memory | 2 MB |
| Display | |
| Control display unit | No |
| Certificates | |
| Certification | CE, FCC, RoHS |
| Features | |
| Built-in processor | Yes |
| Number of processors installed | 1 |
