Industrial PoE Media Converter | 10/100/1000 Mbps | 60 Watts | Open SFP | DIN Rail Mountable

This open SFP PoE fiber media converter offers an easy, inexpensive way to extend the reach of your data and power devices at remote locations using your network over fiber, using the SFP of your choice. It combines the data connectivity of a media converter with the flexible power supply capabilities of a PoE injector

It converts a fiber network link to a PoE-enabled copper RJ45 Ethernet connection to provide data and power to remote PoE devices like security cameras, sensors, wireless, lighting, and more. The converter provides a powerful networking solution for campuses, warehouses, factories or any applications that require PoE and connectivity over long distances.

Designed for Harsh Environments

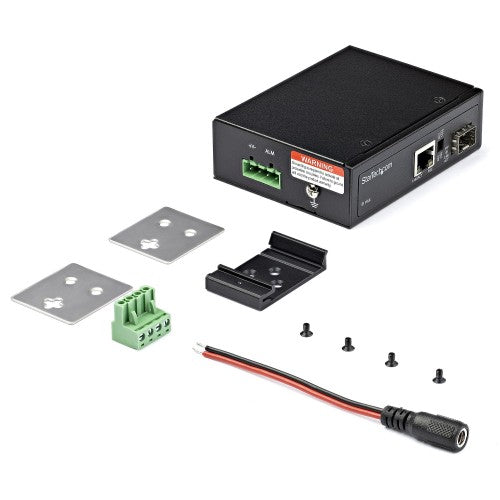

This 60W media converter can be installed almost anywhere you need it as it has been engineered to work in environments with large temperature changes. The converter also includes a set of DIN mounting rails for additional installation options.

OPERATING TEMPERATURE

STORAGE TEMPERATURE

-40°C to 75°C

-40°C to 85°C

-40°F to 167°F

-40°F to 185°F

Up to 60 Watts of Power for Connected Devices

60 watts of available support a wide range of PD devices such as:

Pan-and-Tilt Cameras

Lighting

Cameras

Sensors

WiFi Access Points

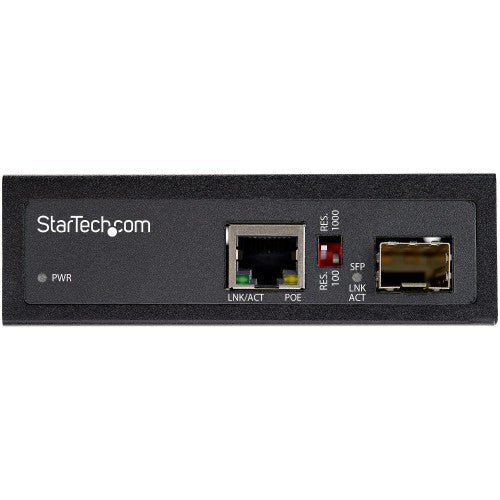

Open SFP Slot to Leverage Your Current Infrastructure

The Gigabit fiber media converter provides a cost-efficient way to connect high powered devices over a fiber link. It features an open SFP slot that lets you choose the MSA compliant Gigabit SFP that best suits your fiber connection mode (single/multimode) and distance requirements.

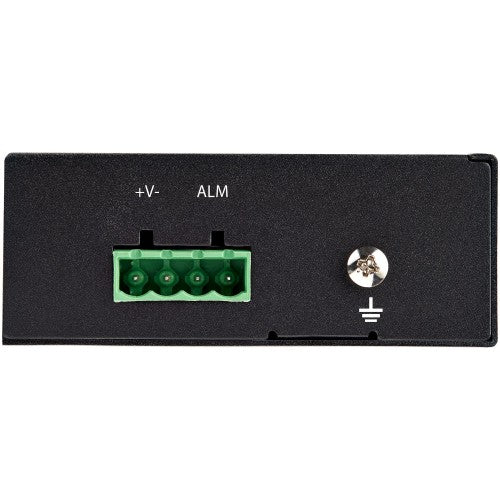

Dual Power Inputs

Accepts terminal block power or coaxial power connectors with the barrel plug adapter, allowing the product to be hardwired or powered using an external power supply (not included), which does not require professional installation.

The IMC1GSFP60W is backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage

- EXTEND, CONVERT, POWER: Fiber to Ethernet media converter with PoE extends & converts fiber to RJ-45 copper; Provides up to 60W of PSE power to PoE/PoE+/PoE++ PD devices like cameras and sensors
- TECH SPECS: 1 Gbps
- 1 x Open SFP (MSA Compliant)

Network
Fiber optic connector	SFP
Maximum data transfer rate	1000 Mbit/s
Flow control support	Yes
Jumbo frames	16000
Networking standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3z
Jumbo frames support	Yes
Duplex system	Full
Auto MDI/MDI-X	Yes
Performance
Flow control support	Yes
Jumbo frames support	Yes
Maximum transfer distance	3937" (100 m)
Fiber mode structure	Multi-mode, Single-mode
Buffer size	512 KB
Mean time between failures (MTBF)	500000 h
Ports & interfaces
Connectivity technology	Wired
Ethernet LAN (RJ-45) ports	1
Fiber ports quantity	1
Fiber optic connector	SFP
Design
Internal	No
DIN rail mounting	Yes
International Protection (IP) code	IP30
Housing material	Aluminum
Product colour	Black
Power
Input voltage	48 - 56 V
Power plug type	Type N
Power over Ethernet (PoE)	Yes
Total Power over Ethernet (PoE) budget	60 W
Weight & dimensions
Width	3.21" (81.5 mm)
Depth	4.09" (104 mm)
Height	1.26" (32 mm)
Weight	5.4 oz (153 g)
Package volume	395 cm³
Package width	8.31" (211 mm)
Package depth	6.38" (162 mm)
Package height	2.52" (64 mm)
Operational conditions
Operating temperature (T-T)	-40 - 75 °C
Storage temperature (T-T)	-40 - 85 °C
Operating relative humidity (H-H)	5 - 95%
Packaging data
Package volume	395 cm³
Package width	8.31" (211 mm)
Package depth	6.38" (162 mm)
Package height	2.52" (64 mm)
Packaging content
Quick installation guide	Yes
Technical details
Harmonized System (HS) code	85176990
Logistics data
Master (outer) case width	14" (355 mm)
Master (outer) case length	13.6" (345 mm)
Master (outer) case height	8.86" (225 mm)
Products per master (outer) case	10 pc(s)
Harmonized System (HS) code	85176990
Other features
Full duplex	Yes
