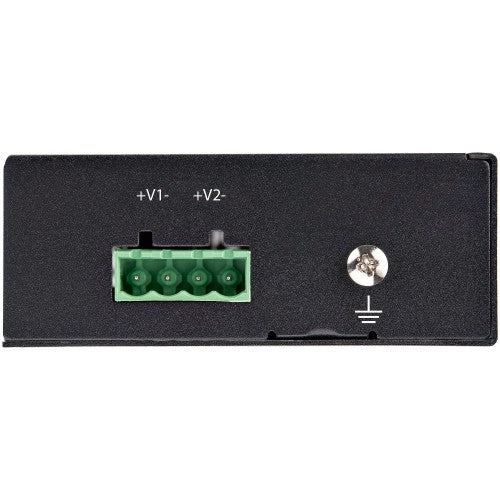

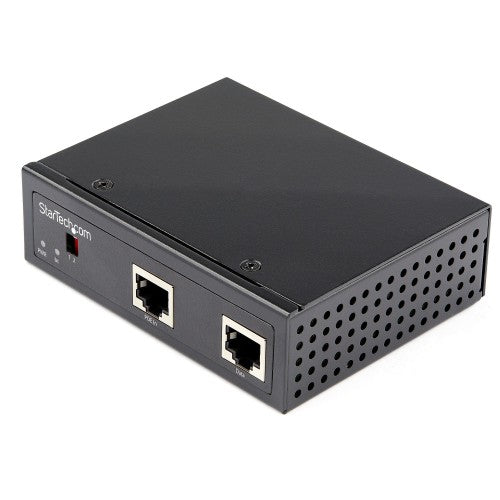

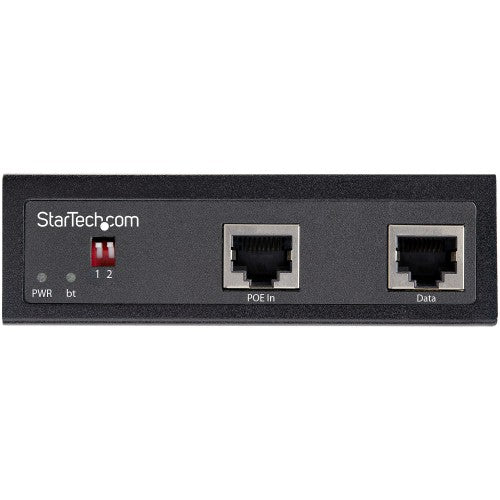

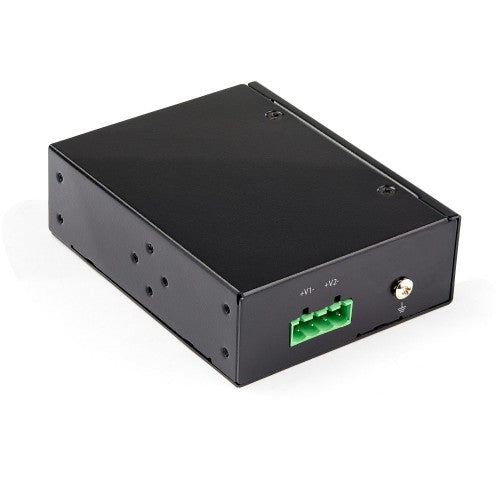

Rugged PoE Splitter | 12-48V DC | IP-30 Aluminum Housing | 1.5A Power Output

Splits a PoE connection (max 90W) into separate data (RJ45) and DC power (terminal block) that can power any device that uses DC power between 12V-48VDC (1.5A). Power non-PoE devices using network infrastructure, where power is not available.

Power Non-PoE Devices

Perfect for using PoE to power older devices while also providing network access for monitoring and control applications. Applications include:

Security (card swipe or proximity boxes)

Environmental monitoring (temperature/moisture sensors)

Telco (analog interface systems/conversion)

Straightforward Deployment

Supports IEEE 802.3af (PoE / Type 1), IEEE 802.3at (PoE+ / Type 2), and IEEE 802.3bt (PoE++ / Type 3) PoE inputs up to 90W and splits data and power. Power output via terminal block can be configured for 12/16/24/48V DC (1.5A).

The configuration is completed by DIP switches and the product can be wall or DIN rail mounted using the included hardware.

Designed for Harsh Environments

Industrial features include -40 C to 75 C operating temperature, IP-30 rated housing, vibration, shock, and free-fall standard testing.

Vibration: EN 60068-2-6

Shock: EN 60068-2-27

Free-Fall: EN 60068-2-32

600,000+ hours MTBF rating using Telcordia/Bellcore at 50 C for long-term reliability.

The POESLT1G48V is backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage

- HIGH POWER GIGABIT PoE SPLITTER: Power non-PoE devices using network infrastructure where power isn't available
- Splits PoE connection (max 90W) into RJ45 data & DC power (terminal block)
- 90W POE IEEE802.3bt: Supports IEEE 802.3af (PoE / Type 1), IEEE 802.3at (PoE+ / Type 2), IEEE 802.3bt (PoE++ / Type 3); power out configured w/ DIP switch for 12/16/24/48V DC (1.5A) via terminal block

Network
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u
Duplex system	Full
Auto MDI/MDI-X	Yes
Power over Ethernet (PoE)	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
Cabling technology	10/100/1000Base-T(X)
Supported network protocols	CSMA/CD
Features
Surge protection	Yes
Maximum operating distance	3937" (100 m)
Product colour	Black
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u
LED indicators	Yes
Certification	CE, FCC, UL
Ports & interfaces
RJ-45 input ports	1
RJ-45 output ports	1
Power
Output current	1.5 A
Total Power over Ethernet (PoE) budget	90 W
Operational conditions
Storage temperature (T-T)	-40 - 85 °C
Operating temperature (T-T)	-40 - 75 °C
Operating relative humidity (H-H)	5 - 95%
Weight & dimensions
Package weight	13.8 oz (392 g)
Package depth	2.52" (64 mm)
Weight	5.29 oz (150 g)
Package width	6.38" (162 mm)
Package length	8.31" (21.1 cm)
Width	3.21" (81.5 mm)
Depth	4.09" (104 mm)
Height	1.26" (32 mm)
Packaging data
Package weight	13.8 oz (392 g)
Package depth	2.52" (64 mm)
Package width	6.38" (162 mm)
Package length	8.31" (21.1 cm)
Packaging content
Quick installation guide	Yes
Technical details
Harmonized System (HS) code	85044095
Compliance certificates	RoHS
Logistics data
Harmonized System (HS) code	85044095
