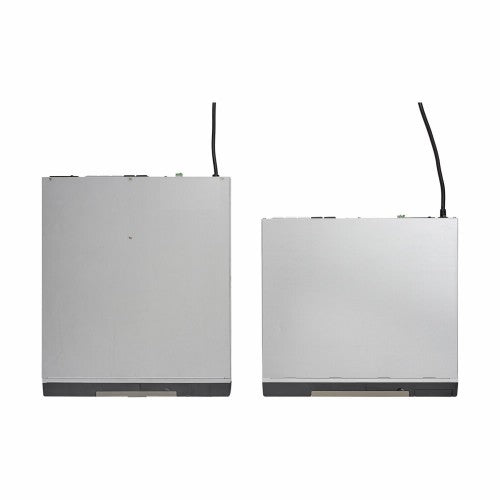

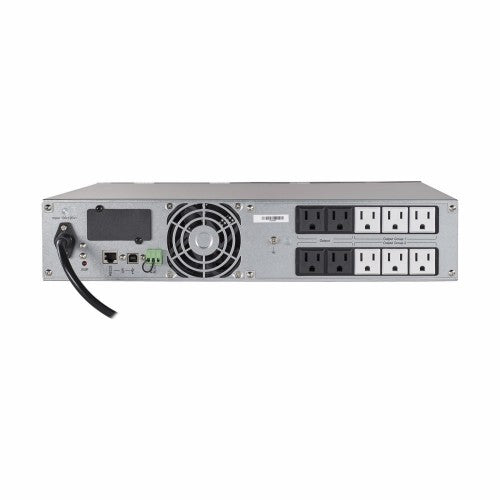

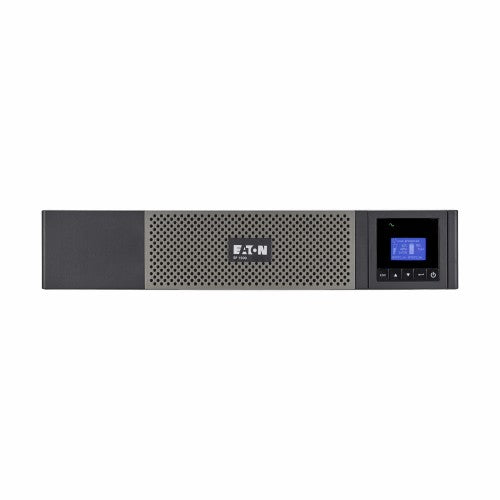

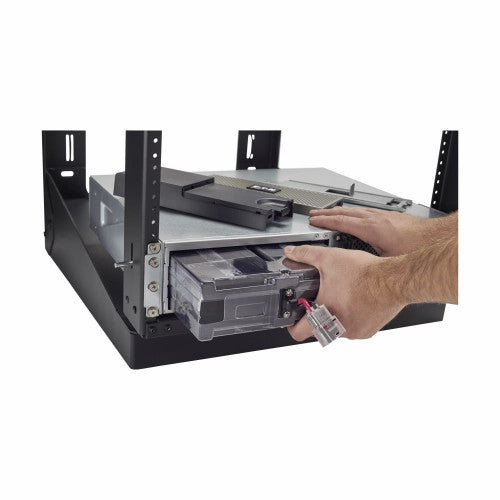

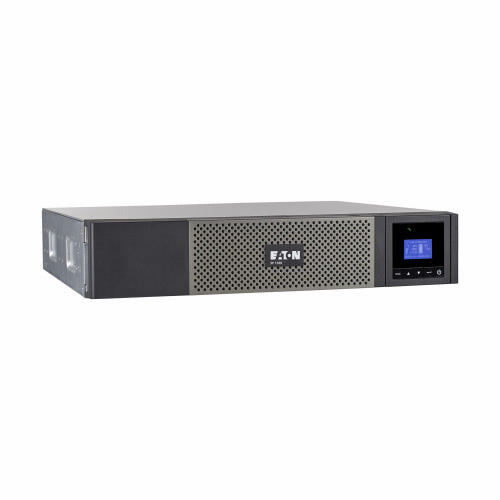

Eaton 5P1500RC uninterruptible power supply (UPS) Line-Interactive 1.44 kVA 1100 W 10 AC outlet(s)
Part number
5P1500RC
$1,159.51 CAD
Line-interactive, 1440 VA, 1100 W, 5-15P In, 10 x 5-15R Out, Rack/tower 2U
Key Features
- Seamless integration with the leading virtualization platforms
- Flexibility with multiple form factors, ideal for high density environments
- Premium protection for servers, network equipment and storage
- Standard communication slot for optional network card
Description
The Eaton 5P UPS delivers reliable enterprise class backup power in tower and rackmount form factors with an efficiency rating of up to 99%. With ENERGY STAR qualified models, the 5P's graphical LCD screen allows you to view UPS status in a single glance and provides more available power than comparable UPSs. When paired with Eaton Intelligent Power Manager software, the 5P allows you to seamlessly manage your connected equipment, even in virtualized environments.Specifications
| Power | |
|---|---|
| Output power capacity | 1.44 kVA |
| Output power | 1100 W |
| Input operation voltage (min) | 89 V |
| Input operation voltage (max) | 151 V |
| Output operation voltage (min) | 102 V |
| Output operation voltage (max) | 132 V |
| Efficiency | 98% |
| Input frequency | 47/70 Hz |
| Performance | |
| UPS topology | Line-Interactive |
| Noise level | 45 dB |
| LED indicators | Yes |
| Features | |
| UPS topology | Line-Interactive |
| Output power capacity | 1.44 kVA |
| Output power | 1100 W |
| Input operation voltage (min) | 89 V |
| Input operation voltage (max) | 151 V |
| Output operation voltage (min) | 102 V |
| Output operation voltage (max) | 132 V |
| Efficiency | 98% |
| Noise level | 45 dB |
| Input frequency | 47/70 Hz |
| Ports & interfaces | |
| AC outlets quantity | 10 AC outlet(s) |
| AC outlet types | NEMA 5–15R |
| Power plug | NEMA 5-15P |
| USB port | Yes |
| Serial interface | Yes |
| Serial interface type | RJ-45 |
| RS-232 ports | 1 |
| Battery | |
| Battery technology | Sealed Lead Acid (VRLA) |
| Design | |
| Form factor | Rackmount/Tower |
| Rack capacity | 2U |
| Product colour | Black, Silver |
| Certification | cULus UL 1778 IEC 62040-2 C1-C2 / EN 55024 / CISPR22 Class B / FCC part 15 Class B UL 497A CE |
| LED indicators | Yes |
| Display type | LCD |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Operating altitude | 0 - 118110.2" (0 - 3000 m) |
| Technical details | |
| Compliance certificates | RoHS |
| Weight & dimensions | |
| Width | 17.4" (442 mm) |
| Depth | 16" (406.4 mm) |
| Height | 3.4" (86.4 mm) |
| Weight | 40.3 lbs (18.3 kg) |
| Packaging data | |
| Quick installation guide | Yes |
| Cables included | RS-232, USB cable |
| Bundled software | Eaton Intelligent Power Manager |
| Certificates | |
| Certification | cULus UL 1778 IEC 62040-2 C1-C2 / EN 55024 / CISPR22 Class B / FCC part 15 Class B UL 497A CE |
| Other features | |
| Nominal output voltage | 120 V |
| Nominal input voltage | 120 V |
| Packaging content | |
| Quick installation guide | Yes |
| Cables included | RS-232, USB cable |
| Bundled software | Eaton Intelligent Power Manager |
