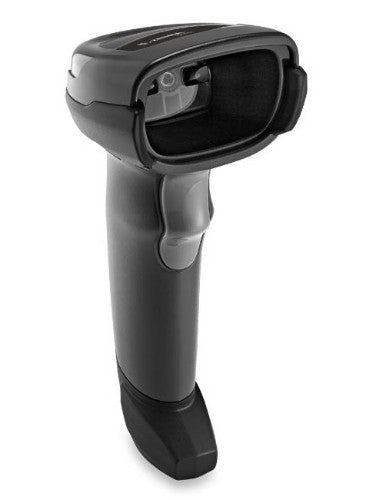

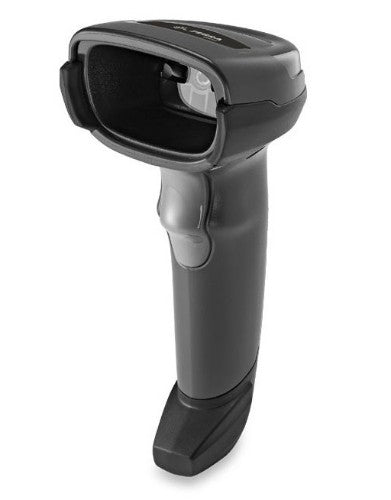

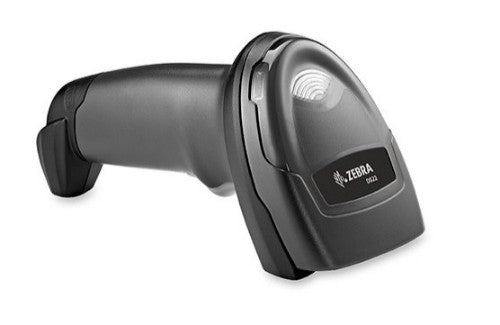

Zebra DS2208 Handheld bar code reader 1D/2D LED Black
243.48 CAD
Skip to product information
In stock
Zebra DS2208 Handheld bar code reader 1D/2D LED Black
Part number
DS2208-SR7U2100AZW
Sale price
243.48 CAD
Regular price
413.16 CAD
Taxes and shipping calculated at checkout.
Save
169.68 CAD
Off
41%
Enjoy Free Shipping on orders over 2000 CAD
Shipping time varies based your on location.
Specifications
Weight
0.162 kg
Shipping + Returns
Shipping Policy
Ships to: Canada & USA via UPS, DHL, & Canada Post.
Fast Dispatch: Orders before 2 PM EST process same-day.
Options: Standard (Ground) and Express (Air) shipping available.
Heavy Items: Heavy freight usually requires1-2 extra days for Processing
Returns & Refunds
Return Period: Request a return within 14 days of delivery.
Restocking Fee: 20% fee applies to non-defective/change-of-mind returns.
Condition: Items must be returned in original packaging (New or Like New).
Final Sale: Software, licenses, and special orders cannot be returned.
AFFORDABILITY AND SIMPLICITY DELIVERED
2D barcodes have made their way to your Point of Sale, appearing on everything from the items your customers are purchasing to printed and electronic coupons and loyalty cards.
Your 1D scanner can’t capture the new 2D codes, leading to exceptions that slow down the check-out process and frustrate customers at that key last personal touchpoint in your store.
But with the DS2200 Series, you can scan it all. You get an affordable 1D/2D imager that doesn’t compromise performance or features for price. And you can choose the model that best fits your POS needs — the corded DS2208 or the cordless DS2278. The DS2200 Series — the affordability your budget demands, with the deployment, ease of use and management simplicity your business requires.
2D barcodes have made their way to your Point of Sale, appearing on everything from the items your customers are purchasing to printed and electronic coupons and loyalty cards.
Your 1D scanner can’t capture the new 2D codes, leading to exceptions that slow down the check-out process and frustrate customers at that key last personal touchpoint in your store.
But with the DS2200 Series, you can scan it all. You get an affordable 1D/2D imager that doesn’t compromise performance or features for price. And you can choose the model that best fits your POS needs — the corded DS2208 or the cordless DS2278. The DS2200 Series — the affordability your budget demands, with the deployment, ease of use and management simplicity your business requires.
| Scanning | |
|---|---|
| Type | Handheld bar code reader |
| Sensor type | LED |
| Scanner type | 1D/2D |
| Linear (1D) barcodes supported | Codabar, Code 11, Code 128, Code 39, Code 93, EAN-13, GS1 DataBar Expanded, Interleaved 2 of 5, MSI, U.P.C. |
| 2D (matrix & stacked) barcodes supported | Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, PDF417, TLC-39 |
| Working distance | 14.5" (36.8 cm) |
| Wavelength | 645 nm |
| Motion tolerance (cm/s) | 13 |
| Tilt reading angle | -65 - 65° |
| Pitch reading angle | -65 - 65° |
| Yaw reading angle | -65 - 65° |
| Optical sensor resolution (W x H) | 640 x 480 pixels |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Standard interfaces | USB, RS-232, RS-485, Keyboard wedge |
| Performance | |
| Product colour | Black |
| International Protection (IP) code | IP42 |
| LED indicators | Yes |
| Certification | EN 60950-1 2ed + A11 + A1 + A12 + A2:2013, IEC 60950-1 2ed + A1 + A2, UL 60950-1, CAN/CSA-C22.2 No. 60950-1-07 IEC 62471 EN 55022 (Class B); EN 55032 (Class B) EN 55024 EN 61000-3-2 EN 61000-3-3 47 CFR Part 15, Subpart B, Class B ICES-003 Issue 6, Class B |
| Design | |
| Product colour | Black |
| Type | Handheld bar code reader |
| International Protection (IP) code | IP42 |
| LED indicators | Yes |
| Certification | EN 60950-1 2ed + A11 + A1 + A12 + A2:2013, IEC 60950-1 2ed + A1 + A2, UL 60950-1, CAN/CSA-C22.2 No. 60950-1-07 IEC 62471 EN 55022 (Class B); EN 55032 (Class B) EN 55024 EN 61000-3-2 EN 61000-3-3 47 CFR Part 15, Subpart B, Class B ICES-003 Issue 6, Class B |
| Power | |
| Power source type | DC |
| Battery technology | Lithium-Ion (Li-Ion) |
| Battery capacity | 2400 mAh |
| Battery life | 100 h |
| Power consumption | 250 mA |
| AC adapter output voltage | 5 V |
| Weight & dimensions | |
| Width | 2.6" (66 mm) |
| Depth | 3.9" (99 mm) |
| Height | 6.5" (165 mm) |
| Weight | 5.7 oz (161.6 g) |
| Packaging data | |
| Charging base | No |
| Cables included | Micro-USB |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Technical details | |
| Harmonized System (HS) code | 84716070 |
| Compliance certificates | RoHS |
| Packaging content | |
| Charging base | No |
| Cables included | Micro-USB |
| Logistics data | |
| Harmonized System (HS) code | 84716070 |
