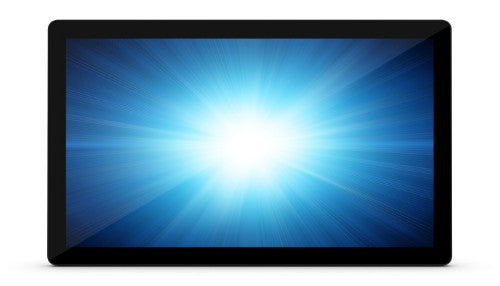

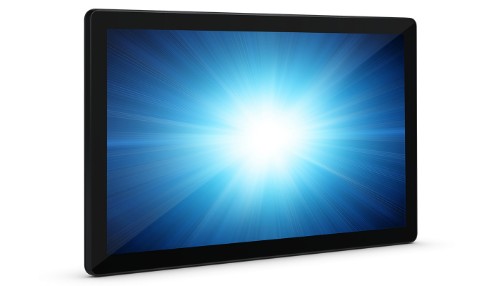

Elo Touch Solutions I-Series E692837 All-in-One PC/workstation Intel® Celeron® J4105 21.5" 1920 x 1080 pixels Touchscreen All-in-One tablet PC 4 GB DDR4-SDRAM 128 GB SSD Wi-Fi 5 (802.11ac) Black
1,567.59 CAD
Skip to product information
Out of stock
Elo Touch Solutions I-Series E692837 All-in-One PC/workstation Intel® Celeron® J4105 21.5" 1920 x 1080 pixels Touchscreen All-in-One tablet PC 4 GB DDR4-SDRAM 128 GB SSD Wi-Fi 5 (802.11ac) Black
Part number
E692837
1,567.59 CAD
Taxes and shipping calculated at checkout.
Enjoy Free Shipping on orders over 2000 CAD
Shipping time varies based your on location.
Specifications
Weight
7.0 kg
Shipping + Returns
Shipping Policy
Ships to: Canada & USA via UPS, DHL, & Canada Post.
Fast Dispatch: Orders before 2 PM EST process same-day.
Options: Standard (Ground) and Express (Air) shipping available.
Heavy Items: Heavy freight usually requires1-2 extra days for Processing
Returns & Refunds
Return Period: Request a return within 14 days of delivery.
Restocking Fee: 20% fee applies to non-defective/change-of-mind returns.
Condition: Items must be returned in original packaging (New or Like New).
Final Sale: Software, licenses, and special orders cannot be returned.
I-Series for Windows
Elo's I-Series for Windows delivers commercial-grade computing with the capabilities, security and enterprise infrastructure of a powerful, Windows-based platform—all in a sleek, yet durable fixed tablet form factor.
Built on a modular platform and available with either 15-inch or 22-inch displays, the I-Series for Windows can be found in installations across the globe, from in-store interaction and point-of-sale to self-service, hospitality and corporate office environments. The uses are virtually unlimited.
Endless Versatility
The Elo I-Series offers versatility across environments. From retail and entertainment to corporate offices and signage, the I-Series is an excellent choice to meet the demands of continuous public use.
Configure with Elo Edge Connect
Built with versatility in mind, the Elo Edge Connect system offers a wide assortment of peripherals that seamlessly attach to the edge of the touchscreen. And you can add or swap them out later as your needs change.
Stands & Mounts
With a standard VESA mount, we give you the flexibility to mount our products however you want.
Windows or Linux. You Choose.
Elo's I-Series utilizes the reliability-tested performance and security of Intel's 8th-generation processors and vPro™ platform. Available with Windows 10 or, for added flexibility, the I-Series offers models with no OS-all pretested with Linux SuSE, Ubuntu and Red Hat operating systems-allowing businesses to get the solution best suited for them.
Get Peace of Mind With EloCare
EloCare is service and support from the people who know your Elo products best. From extended warranties and on-site exchange to advance unit replacement and field services, the highly skilled Elo technical specialists will get you up and running.
Elo's I-Series for Windows delivers commercial-grade computing with the capabilities, security and enterprise infrastructure of a powerful, Windows-based platform—all in a sleek, yet durable fixed tablet form factor.
Built on a modular platform and available with either 15-inch or 22-inch displays, the I-Series for Windows can be found in installations across the globe, from in-store interaction and point-of-sale to self-service, hospitality and corporate office environments. The uses are virtually unlimited.
Endless Versatility
The Elo I-Series offers versatility across environments. From retail and entertainment to corporate offices and signage, the I-Series is an excellent choice to meet the demands of continuous public use.
Configure with Elo Edge Connect
Built with versatility in mind, the Elo Edge Connect system offers a wide assortment of peripherals that seamlessly attach to the edge of the touchscreen. And you can add or swap them out later as your needs change.
Stands & Mounts
With a standard VESA mount, we give you the flexibility to mount our products however you want.
Windows or Linux. You Choose.
Elo's I-Series utilizes the reliability-tested performance and security of Intel's 8th-generation processors and vPro™ platform. Available with Windows 10 or, for added flexibility, the I-Series offers models with no OS-all pretested with Linux SuSE, Ubuntu and Red Hat operating systems-allowing businesses to get the solution best suited for them.
Get Peace of Mind With EloCare
EloCare is service and support from the people who know your Elo products best. From extended warranties and on-site exchange to advance unit replacement and field services, the highly skilled Elo technical specialists will get you up and running.
| Display | |
|---|---|
| Display diagonal | 21.5" |
| Display resolution | 1920 x 1080 pixels |
| LED backlight | Yes |
| Touchscreen | Yes |
| Screen shape | Flat |
| HD type | Full HD |
| Display number of colours | 16.78 million colors |
| Touch technology | Multi-touch |
| Display brightness | 225 cd/m² |
| Detachable display | No |
| 3D | No |
| Native aspect ratio | 16:9 |
| Response time | 14 ms |
| Processor | |
| Processor frequency | 1.5 GHz |
| Processor family | Intel® Celeron® |
| Processor operating modes | 64-bit |
| Processor lithography | 14 nm |
| Processor codename | Gemini Lake |
| Maximum internal memory supported by processor | 8 GB |
| Memory types supported by processor | DDR4-SDRAM, LPDDR4-SDRAM |
| Memory clock speeds supported by processor | 2400 MHz |
| Memory channels supported by processor | Dual |
| ECC supported by processor | No |
| Tjunction | 105 °C |
| Thermal Design Power (TDP) | 10 W |
| PCI Express configurations | 1x2, 1x2+2x1, 1x4, 2x1, 4x1 |
| Maximum number of PCI Express lanes | 6 |
| Conflict-Free processor | Yes |
| Processor model | J4105 |
| Processor boost frequency | 2.5 GHz |
| Processor cores | 4 |
| Processor threads | 4 |
| Processor cache | 4 MB |
| 64-bit computing | Yes |
| Processor socket | BGA 1090 |
| Processor manufacturer | Intel |
| PCI Express slots version | 2.0 |
| Memory | |
| Internal memory | 4 GB |
| Maximum internal memory | 8 GB |
| Internal memory type | DDR4-SDRAM |
| Memory slots | 2 |
| Memory slots type | SO-DIMM |
| Memory clock speed | 2666 MHz |
| Memory layout (slots x size) | 1 x 4 GB |
| Storage | |
| Optical drive type | No |
| Total storage capacity | 128 GB |
| Card reader integrated | No |
| Storage media | SSD |
| SSD capacity | 128 GB |
| Number of SSDs installed | 1 |
| Compatible memory cards | Not supported |
| SSD form factor | M.2 |
| Total SSDs capacity | 128 GB |
| Graphics | |
| Discrete graphics card | No |
| On-board graphics card dynamic frequency (max) | 750 MHz |
| On-board graphics card burst frequency | 750 MHz |
| On-board graphics card base frequency | 250 MHz |
| Maximum on-board graphics card memory | 8 GB |
| On-board graphics card OpenGL version | 4.4 |
| On-board graphics card DirectX version | 12.0 |
| Number of execution units | 12 |
| Number of displays supported (on-board graphics) | 3 |
| On-board graphics card ID | 0x3185 |
| On-board graphics card family | Intel® UHD Graphics |
| Discrete graphics card model | Not available |
| On-board graphics card model | Intel® UHD Graphics 600 |
| On-board graphics card | Yes |
| Audio | |
| Number of speakers | 2 |
| Built-in speaker(s) | Yes |
| RMS rated power | 2 W |
| Camera | |
| Built-in camera | No |
| Optical drive | |
| Optical drive type | No |
| Network | |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 2.0 ports quantity | 4 |
| Headphone outputs | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Design | |
| Product colour | Black |
| Panel mounting interface | 75 x 75,100 x 100 mm |
| VESA mounting | Yes |
| Performance | |
| Product type | All-in-One tablet PC |
| Trusted Platform Module (TPM) | Yes |
| Software | |
| Operating system installed | No |
| Processor special features | |
| Intel® Quick Sync Video Technology | Yes |
| Intel® OS Guard | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel® Secure Key | Yes |
| Intel Enhanced Halt State | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Thermal Monitoring Technologies | Yes |
| Processor package size | 25 x 24 mm |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel 64 | Yes |
| Idle States | Yes |
| Execute Disable Bit | Yes |
| Embedded options available | No |
| CPU configuration (max) | 1 |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Smart Response Technology version | 0.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel Identity Protection Technology version | 1.00 |
| Processor ARK ID | 128989 |
| Intel® Turbo Boost Technology | No |
| Intel® Smart Response Technology | No |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Power | |
| AC adapter power | 100 W |
| AC adapter frequency | 50-60 Hz |
| AC adapter input voltage | 100 - 240 V |
| Multimedia | |
| Built-in camera | No |
| Pen | |
| Pen included | No |
| Weight & dimensions | |
| Package width | 24.6" (625 mm) |
| Package depth | 7.72" (196 mm) |
| Package height | 17.2" (437 mm) |
| Package weight | 15.4 lbs (7 kg) |
| Width (with stand) | 20.7" (525.9 mm) |
| Depth (with stand) | 2.07" (52.6 mm) |
| Height (with stand) | 12.6" (319.2 mm) |
| Weight (with stand) | 11.5 lbs (5.2 kg) |
| Packaging data | |
| Package width | 24.6" (625 mm) |
| Package depth | 7.72" (196 mm) |
| Package height | 17.2" (437 mm) |
| Package weight | 15.4 lbs (7 kg) |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 35 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 5 - 95% |
| Packaging content | |
| AC adapter included | Yes |
| Quick start guide | Yes |
| Logistics data | |
| Harmonized System (HS) code | 84713000 |
| Other features | |
| SSD capacity | 128 GB |
| Processor manufacturer | Intel |
| On-board graphics card | Yes |
| Number of SSDs installed | 1 |
| Detachable display | No |
| 3D | No |
| Harmonized System (HS) code | 84713000 |
