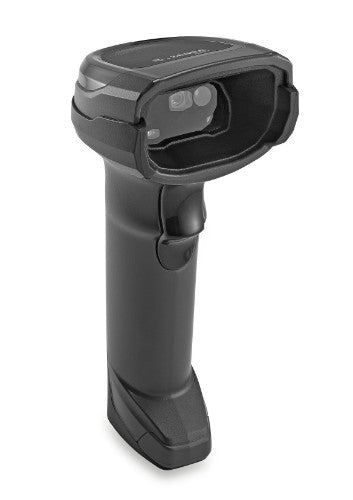

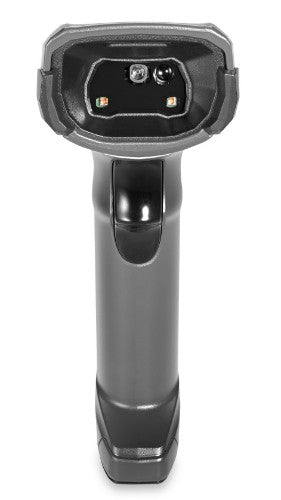

Zebra DS8108-SR Handheld bar code reader 1D/2D LED Black
404.12 CAD
Zebra DS8108-SR Handheld bar code reader 1D/2D LED Black
404.12 CAD
Zebra DS8108-SR Handheld bar code reader 1D/2D LED Black
Enjoy Free Shipping on orders over 2000 CAD
Shipping time varies based your on location.
Ships to: Canada & USA via UPS, DHL, & Canada Post.
Fast Dispatch: Orders before 2 PM EST process same-day.
Options: Standard (Ground) and Express (Air) shipping available.
Heavy Items: Heavy freight usually requires1-2 extra days for Processing
Return Period: Request a return within 14 days of delivery.
Restocking Fee: 20% fee applies to non-defective/change-of-mind returns.
Condition: Items must be returned in original packaging (New or Like New).
Final Sale: Software, licenses, and special orders cannot be returned.
| Scanning | |
|---|---|
| Type | Handheld bar code reader |
| Sensor type | LED |
| Scanner type | 1D/2D |
| Linear (1D) barcodes supported | Codabar, Code 11, Code 128, Code 39, Code 93, GS1 DataBar Expanded, Interleaved 2 of 5, MSI, Plessey, U.P.C. |
| 2D (matrix & stacked) barcodes supported | Aztec Code, Composite Codes, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39 |
| Wavelength | 617 nm |
| Tilt reading angle | 0 - 360° |
| Pitch reading angle | 0 - 60° |
| Yaw reading angle | 0 - 60° |
| Ports & interfaces | |
| Connectivity technology | Wired |
| PC connection | RS-232/USB |
| Standard interfaces | RS-232, USB, Keyboard wedge |
| Performance | |
| Product colour | Black |
| International Protection (IP) code | IP42 |
| Design | |
| Product colour | Black |
| Type | Handheld bar code reader |
| International Protection (IP) code | IP42 |
| Power | |
| Input voltage | 5 V |
| Power consumption | 450 mA |
| Weight & dimensions | |
| Width | 2.6" (66 mm) |
| Depth | 4.21" (107 mm) |
| Height | 6.61" (168 mm) |
| Weight | 5.43 oz (154 g) |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Technical details | |
| PC connection | RS-232/USB |
| Harmonized System (HS) code | 84716070 |
| Logistics data | |
| Harmonized System (HS) code | 84716070 |
