Connects 4 HDMI-Enabled Devices to a Single HDMI Monitor, Keyboard and Mouse
This KVM switch lets you access, control, boot and reboot four computers with HDMI ports and switch between them. In addition to desktop and notebook computers, the switch also connects up to four media centers, video game systems, Blu-ray and DVD players, cable and satellite boxes, DVRs and other HDMI-enabled devices. All computers share one HDMI monitor, USB keyboard and USB mouse, which saves space on your desk or workspace.

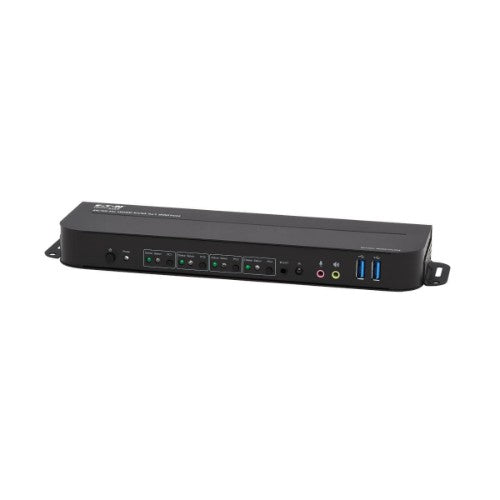

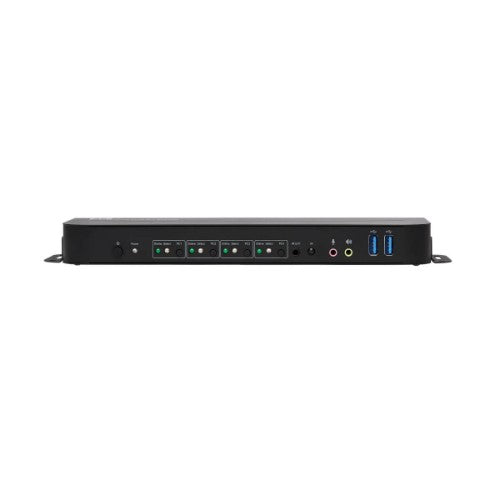

Switching Between Computers Is Fast and Easy
Use the front-panel push buttons, hotkey commands, mouse movement or the included IR remote control for quick and easy toggling between computers. You can also use the Auto Scan feature to scan all connected computers in five-second intervals automatically. LEDs indicate which computer is currently selected. Please note: Mouse Traversal is a permanent feature and cannot be disabled

USB Hub Lets You Share Peripherals Between Computers
Two USB 3.0 hub ports allow you to share USB peripherals, such as printers, hard drives, scanners, webcams and flash drives, between all connected computers. The hub is backward compatible with USB 1.1 devices.

Transmits Crystal-Clear True 4K Video with HDR and 4:4:4 Color
The B005-HUA4 supports Ultra HD resolutions up to 4096 x 2160 (4K x 2K) at 60 Hz, as well as 7.1-channel surround sound and HDR video, providing a wide range of vibrant colors with richer contrast, brighter whites and deeper blacks that pop on your 4K display. HDCP 2.2 compliance allows you to stream 4K Amazon and Netflix content with no complications. This KVM switch also supports 4:4:4 chroma subsampling for top-level PC gaming or using your HDTV as a PC monitor.

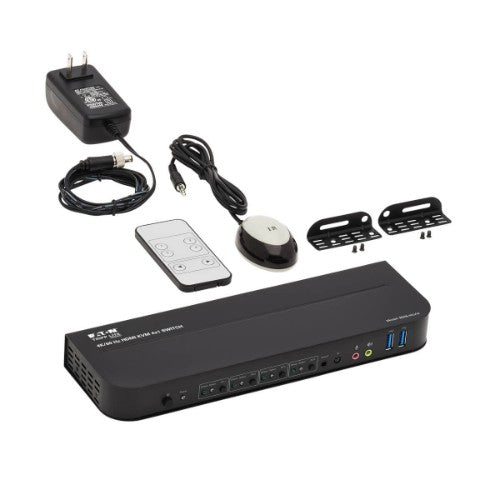

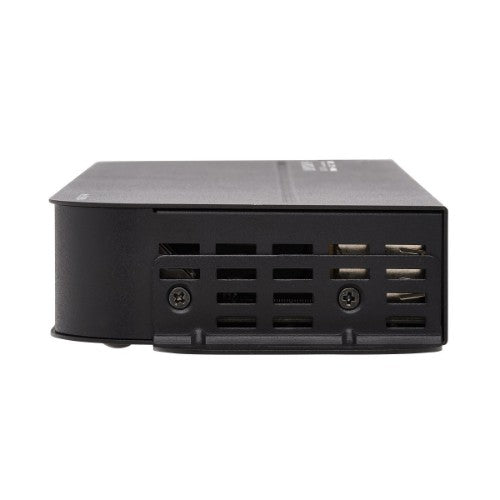

Designed for Convenient Mounting with Included Brackets
The heavy-duty metal housing comes with mounting brackets for permanent installation on a wall or beneath a desk with user-supplied hardware. The included DC power supply connects to any standard AC power source. The plug-and-play B005-HUA4 requires no drivers, so you can connect and use it immediately. It works with all major operating systems, including Windows, macOS and Linux.

Ports & interfaces
Number of computers controlled	4
Keyboard port type	USB
Number of microphone inputs	6
Mouse port type	USB
Video port type	HDMI
Audio connections	Yes
HDMI version	2.0
Headphone outputs	6
HDMI ports quantity	5
DC-in jack	Yes
Console USB ports quantity	2
Console ports	3.5mm headphone, 3.5mm mic, HDMI, USB A
USB hub	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity	2
HDCP	Yes
Performance
Auto scan delay (min)	5 s
Auto scan delay (max)	999 s
Data transfer rate (max)	5 Gbit/s
HD type	4K Ultra HD
Video bandwidth	60 Hz
Plug and Play	Yes
Maximum resolution	4096 x 2160 pixels
Number of users	1 user(s)
HDCP	Yes
Audio channels	7.1
Number of displays supported	4
Design
Product colour	Black
Rack mounting	No
Push button	Yes
LED indicators	Yes
Hot keys	Yes
Certification	CE, FCC, REACH
Housing material	Metal
Country of origin	Vietnam
Display
Built-in display	No
Power
Output voltage	5 V
AC input frequency	50 - 60 Hz
Power source	AC
Output current	3 A
Power consumption (typical)	12.15 W
External power adapter	Yes
Compatible power plug types	AU, EU, UK, US
Input voltage	100 - 240 V
Video
HD type	4K Ultra HD
Video bandwidth	60 Hz
Maximum resolution	4096 x 2160 pixels
Technical details
USB hub	Yes
Compliance certificates	RoHS
Features
Country of origin	Vietnam
Sustainability
Compliance certificates	RoHS
Operational conditions
Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-10 - 80 °C
Operating relative humidity (H-H)	10 - 85%
Storage relative humidity (H-H)	5 - 90%
Weight & dimensions
Width	9.57" (243.1 mm)
Depth	2.95" (74.9 mm)
Height	1.02" (25.9 mm)
Weight	17.6 oz (500 g)
Package width	11" (279.9 mm)
Package depth	7.89" (200.4 mm)
Package height	2.56" (65 mm)
Package weight	24.7 oz (700 g)
Packaging data
Package type	Box
Package width	11" (279.9 mm)
Package depth	7.89" (200.4 mm)
Package height	2.56" (65 mm)
Package weight	24.7 oz (700 g)
Packaging content
Manual	Yes
AC adapter included	Yes
Package type	Box
Certificates
Certification	CE, FCC, REACH
Other features
Push button	Yes
Hot keys	Yes
Logistics data
Country of origin	Vietnam
Master (outer) case width	13.4" (340.1 mm)
Master (outer) case length	11.8" (300 mm)
Master (outer) case height	7.87" (199.9 mm)
Master (outer) case gross weight	9.26 lbs (4.2 kg)
Products per master (outer) case	5 pc(s)
Master (outer) case GTIN (EAN/UPC)	10037332254907
Harmonized System (HS) code	85176200
