M4250 Support for Audio Video Bridging (AVB)
One of the many features designed into the new M4250 product line is full support for Audio Video Bridging (AVB), an industry standard for transporting content over a network. AVB is used most often when very low latency is required such as in live performances when lip sync is critical. All of the AV Line M4250 switches can be optionally licensed for AVB support.

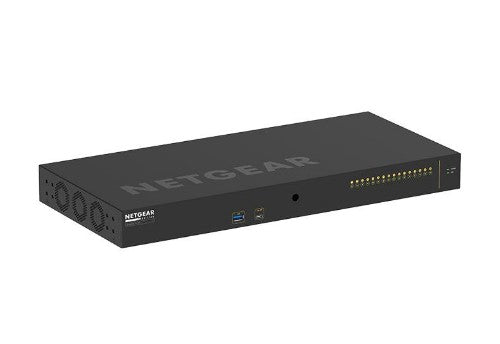

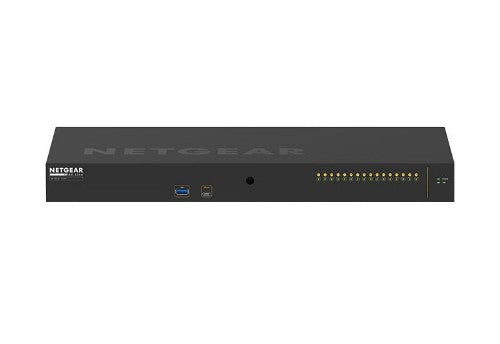

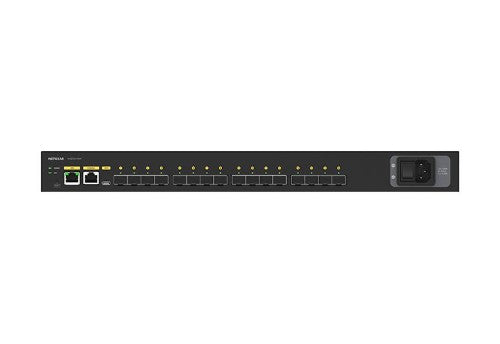

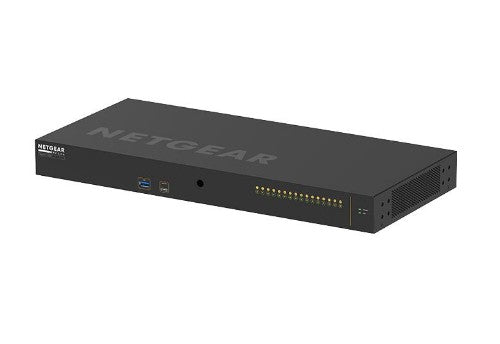

NETGEAR AV LINE M4250-16XF 16X1G/10G MGD SWCH Managed L2/L3 1U Black
Part number
XSM4216F-100NAS
$1,700.47 CAD
AV Line M4250-16XF (XSM4216F) 16x1G/10G Fiber SFP+ Managed Switch
Key Features
- Dedicated AV web-based GUI interface for more specific AV installations
- Color-based AV profiles can be applied to the different ports
- Dante, Q-SYS, AES67 and AVB audio profiles
- AVB requires an AVB4212P-10000S license (sold separately)
- NVX, SVSI, Q-SYS, NDI and Dante video profiles
- Audio / video / control mixed profiles
- Automatic switch interconnect with NETGEAR IGMP Plus
- Common Layer 2 and Layer 3 switching engine across all M4250 models
- Built-in IT web GUI, console, telnet and SSH consistent with other NETGEAR M4xxx series
- Feature set includes static, RIP and PIM routing, DHCP Server and PTPv2
Description
Switching engineered for 1G AV over IP with PoE+, Ultra90 PoE++ and rear-facing ports ensuring a clean integration in AV racks. M4250 switches come pre-configured for standard audio and video signals. When requirements are more specific, an AV user interface offers customization with port-based profiles. For audio Dante, Q-SYS and AES67 profiles are available, as well as an AVB profile requiring an AVB license sold separately. For video the M4250 offers profiles for NVX, SVSI, Q-SYS, NDI, Dante etc. as well as audio/video/control mixed profiles. When multiple switches, NETGEAR IGMP Plus brings automation for you to just connect them together.M4250 Support for Audio Video Bridging (AVB)
One of the many features designed into the new M4250 product line is full support for Audio Video Bridging (AVB), an industry standard for transporting content over a network. AVB is used most often when very low latency is required such as in live performances when lip sync is critical. All of the AV Line M4250 switches can be optionally licensed for AVB support.
Specifications
| Management features | |
|---|---|
| Multicast support | Yes |
| Switch layer | L2/L3 |
| Switch type | Managed |
| Quality of Service (QoS) support | Yes |
| Network | |
| IGMP snooping | Yes |
| IPv6 multicast entries | 2000 |
| IPv4 multicast entries | 2000 |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3x |
| Full duplex | Yes |
| Number of VLANs | 4093 |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Rate limiting | Yes |
| Link aggregation | Yes |
| Broadcast storm control | Yes |
| 10G support | Yes |
| Virtual LAN features | MAC address-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN |
| Virtual LAN features | |
| Number of VLANs | 4093 |
| VLAN support | Yes |
| Virtual LAN features | MAC address-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN |
| Data transmission | |
| Number of VLANs | 4093 |
| MAC address table | 16000 entries |
| Switching capacity | 320 Gbit/s |
| Jumbo frames | 12000 |
| Throughput | 238.08 Mpps |
| Store-and-forward | Yes |
| Latency (1 Gbps) | 1.274 µs |
| Latency (10 Gbps) | 0.811 µs |
| Number of queues | 8 |
| Jumbo frames support | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports type | No |
| SFP+ module slots quantity | 16 |
| Console port | RJ-45/USB Type-C |
| Security | |
| Loop protection | Yes |
| BPDU filtering/protection | Yes |
| Authentication | MAC-based authentication |
| SSH/SSL support | Yes |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| Authentication type | RADIUS |
| DHCP features | DHCP Option 82, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 relay, DHCPv6 server, DHCPv6 snooping |
| Multicast features | |
| Multicast support | Yes |
| IPv6 multicast entries | 2000 |
| IPv4 multicast entries | 2000 |
| Design | |
| Rack mounting | Yes |
| Product colour | Black |
| Form factor | 1U |
| LED indicators | Power, Status |
| Performance | |
| Processor frequency | 1250 MHz |
| Noise level | 56.7 dB |
| Internal memory | 2048 MB |
| Mean time between failures (MTBF) | 778769 h |
| Built-in processor | Yes |
| Processor model | ARM Cortex-A9 |
| Power | |
| Power consumption (typical) | 47.84 W |
| Power source | AC/DC |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 118110.2" (0 - 3000 m) |
| Heat dissipation | 163.33 BTU/h |
| Weight & dimensions | |
| Width | 17.3" (440 mm) |
| Depth | 3.94" (100 mm) |
| Height | 1.7" (43.2 mm) |
| Weight | 3.84 lbs (1.74 kg) |
| Packaging data | |
| Cables included | AC, USB |
| Packaging content | |
| Cables included | AC, USB |
