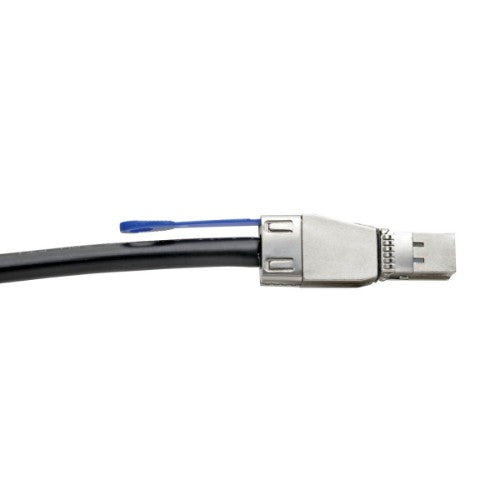

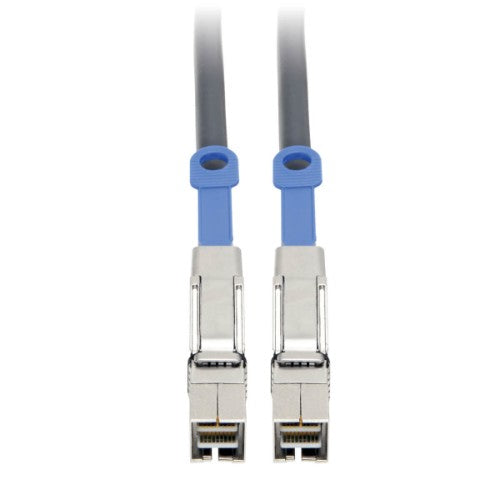

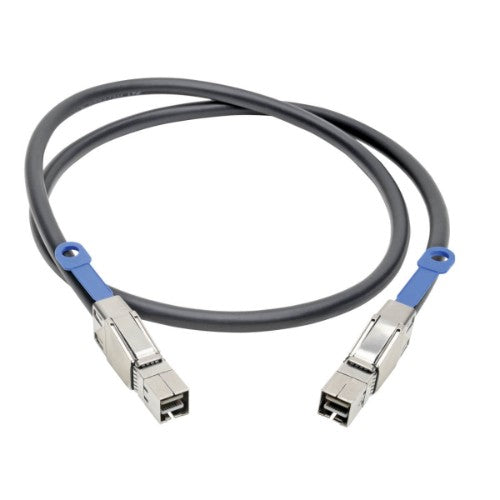

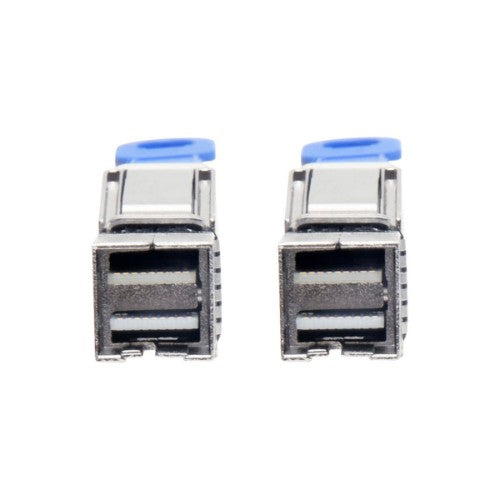

Tripp Lite S528-01M Serial Attached SCSI (SAS) cable 39.4" (1 m) 12 Gbit/s Black, Blue, Metallic
121.95 CAD
Skip to product information
Out of stock
Tripp Lite S528-01M Serial Attached SCSI (SAS) cable 39.4" (1 m) 12 Gbit/s Black, Blue, Metallic
Part number
S528-01M
121.95 CAD
Taxes and shipping calculated at checkout.
Enjoy Free Shipping on orders over 2000 CAD
Shipping time varies based your on location.
Specifications
Weight
0.14 kg
Shipping + Returns
Shipping Policy
Ships to: Canada & USA via UPS, DHL, & Canada Post.
Fast Dispatch: Orders before 2 PM EST process same-day.
Options: Standard (Ground) and Express (Air) shipping available.
Heavy Items: Heavy freight usually requires1-2 extra days for Processing
Returns & Refunds
Return Period: Request a return within 14 days of delivery.
Restocking Fee: 20% fee applies to non-defective/change-of-mind returns.
Condition: Items must be returned in original packaging (New or Like New).
Final Sale: Software, licenses, and special orders cannot be returned.
- Ideal for connecting storage area network (SAN) devices or hard drives
- Protective caps over die-cast zinc housings shield ends from dust and damage
- Convenient pull tabs make it easier to disconnect cable in crowded racks
- Supports data transfer speeds up to 12 Gbps—faster than eSATA, USB 3.0 and Thunderbolt
- Backward compatible with previous SAS versions for sure compatibility with your device
High-Performance Mini-SAS External HD Cable for Connecting SAN Devices
This four-channel InfiniBand cable connects two storage devices with external mini-SAS HD SFF-8644 connectors, such as 12G RAID controllers, SATA hard drives, enclosures and JBOD devices. It supports data transfer rates up to 12 Gbps, which is faster than eSATA, USB 3.0 and Thunderbolt cables. The high-density connectors are surrounded by durable die-cast zinc that is compatible with shielded external connectors. Protective caps defend the connectors against dust and damage. Convenient pull-tabs make it easy to disconnect the cable in crowded racks and other applications. The S528-01M is backward compatible with previous SAS versions to ensure compatibility with your devices.
This four-channel InfiniBand cable connects two storage devices with external mini-SAS HD SFF-8644 connectors, such as 12G RAID controllers, SATA hard drives, enclosures and JBOD devices. It supports data transfer rates up to 12 Gbps, which is faster than eSATA, USB 3.0 and Thunderbolt cables. The high-density connectors are surrounded by durable die-cast zinc that is compatible with shielded external connectors. Protective caps defend the connectors against dust and damage. Convenient pull-tabs make it easy to disconnect the cable in crowded racks and other applications. The S528-01M is backward compatible with previous SAS versions to ensure compatibility with your devices.
| Features | |
|---|---|
| Data transfer rate (max) | 12 Gbit/s |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| AWG wire size | 28 |
| Connector gender | Male/Male |
| Weight | 4.94 oz (140 g) |
| Connector 2 | SFF-8644 |
| Connector 1 | SFF-8644 |
| Product colour | Black, Blue, Metallic |
| Cable length | 39.4" (1 m) |
| Technical details | |
| Package width | 3.94" (100 mm) |
| Package height | 5.31" (135 mm) |
| Cable length | 39.4" (1 m) |
| Master (outer) case GTIN (EAN/UPC) | 10037332222302 |
| Colour | |
| Product colour | Black, Blue, Metallic |
| Ports & interfaces | |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Connector 2 | SFF-8644 |
| Connector 1 | SFF-8644 |
| Weight & dimensions | |
| Weight | 4.94 oz (140 g) |
| Cable length | 39.4" (1 m) |
| Packaging data | |
| Package depth | 0.5" (12.7 mm) |
| Package weight | 4.94 oz (140 g) |
| Package width | 3.94" (100 mm) |
| Package height | 5.31" (135 mm) |
| Logistics data | |
| Master (outer) case width | 7.48" (190 mm) |
| Master (outer) case length | 1" (25.4 mm) |
| Master (outer) case height | 11.8" (300 mm) |
| Master (outer) case gross weight | 3.13 lbs (1.42 kg) |
| Products per master (outer) case | 10 pc(s) |
| Country of origin | China |
| Harmonized System (HS) code | 8544.42.9090 |
| Master (outer) case GTIN (EAN/UPC) | 10037332222302 |
| Other features | |
| Harmonized System (HS) code | 8544.42.9090 |
