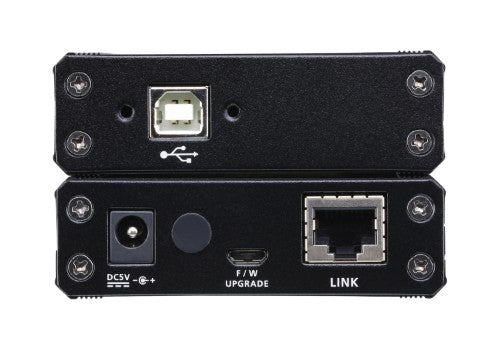

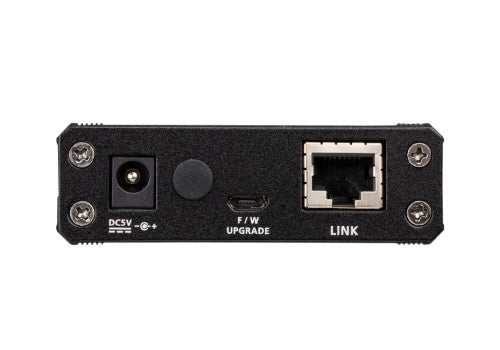

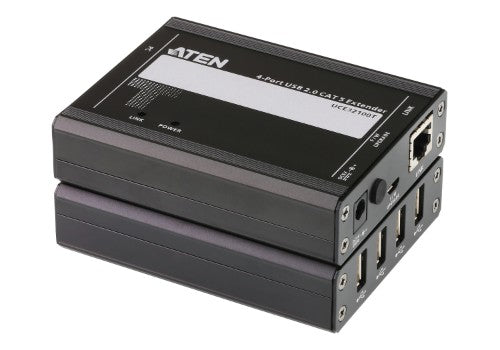

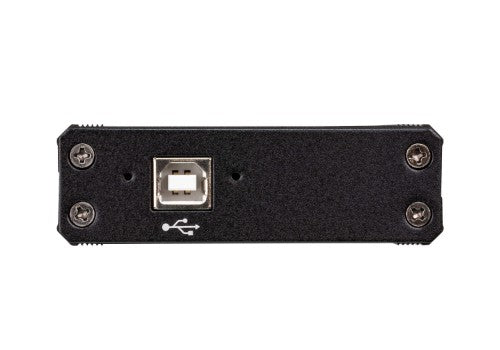

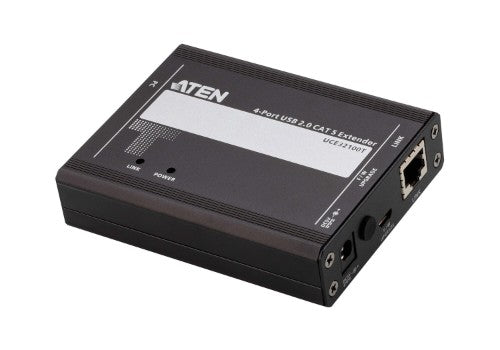

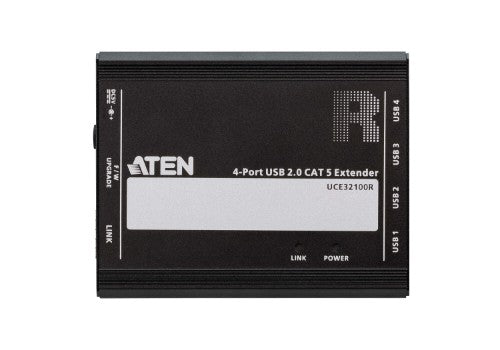

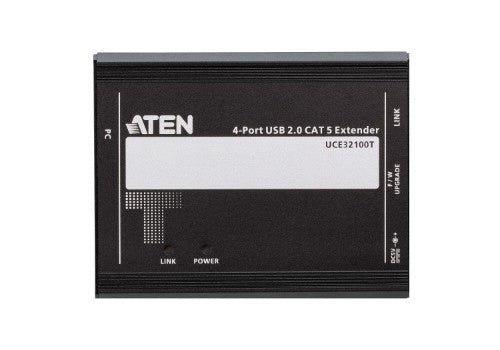

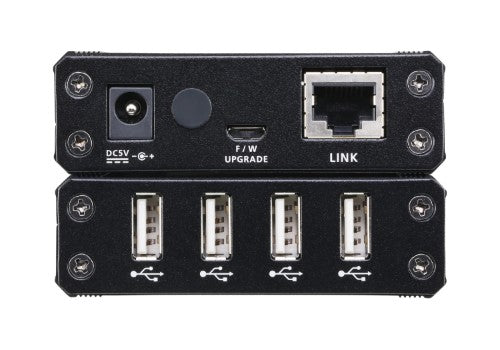

The UCE32100 is a 4-port USB 2.0 CAT 5 Extender is a two-unit device that serves as a Transmitter and a Receiver. It provides a durable, high quality connection that harnesses the full capability of the USB 2.0 standard, to ensure reliable data communication.

The UCE32100 can extend the USB transmission distance of up to 100 meters from your computer via a Cat 5 Ethernet cable. The power supply at the receiver UCE32100 unit helps provide sufficient power to any type of USB device, such as POS, flash drives, webcams, scanners, or printers, etc.

A true plug-and-play solution, the UCE32100 is compatible with all leading operating systems. With its durable metal housing, this high-quality USB extender provides a fast and flexible solution for industrial applications. In addition, the compact size with wall mounting and din rail included enables space-saving installation.

Technical details
Type	Console transmitter & receiver
Maximum transfer distance	3937" (100 m)
LED indicators	Yes
Housing material	Metal
Data transfer rate	25 Mbit/s
Product colour	Black
Cable types supported	Cat5
Ethernet LAN	Yes
Harmonized System (HS) code	84733020
Ports & interfaces
RJ-45 ports quantity	1
USB 2.0 Type-B ports quantity	1
USB 2.0 Type-A ports quantity	4
Weight & dimensions
Width	3.11" (79 mm)
Depth	4" (101.5 mm)
Height	0.961" (24.4 mm)
Weight	7.41 oz (210 g)
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	0 - 80%
Colour
Product colour	Black
Packaging content
Mounting kit	Yes
Manual	Yes
Cables included	AC, USB
AC adapter included	Yes
Power
Power source type	DC
Input voltage	5 V
Logistics data
Harmonized System (HS) code	84733020
