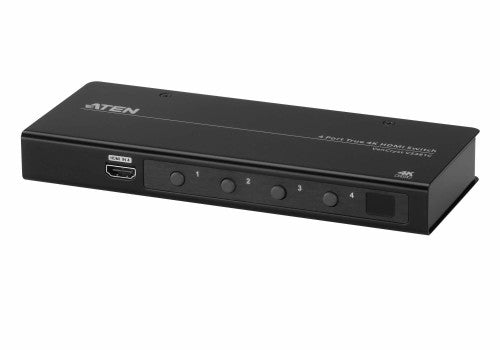

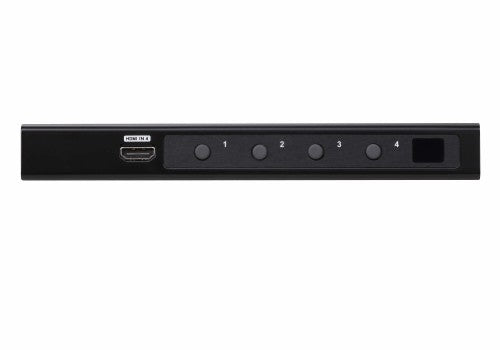

ATEN VS481C video switch HDMI
133.47 CAD
Skip to product information
4 left
ATEN VS481C video switch HDMI
Part number
VS481C
133.47 CAD
Taxes and shipping calculated at checkout.
Enjoy Free Shipping on orders over 2000 CAD
Shipping time varies based your on location.
Specifications
Weight
0.47 kg
Shipping + Returns
Shipping Policy
Ships to: Canada & USA via UPS, DHL, & Canada Post.
Fast Dispatch: Orders before 2 PM EST process same-day.
Options: Standard (Ground) and Express (Air) shipping available.
Heavy Items: Heavy freight usually requires1-2 extra days for Processing
Returns & Refunds
Return Period: Request a return within 14 days of delivery.
Restocking Fee: 20% fee applies to non-defective/change-of-mind returns.
Condition: Items must be returned in original packaging (New or Like New).
Final Sale: Software, licenses, and special orders cannot be returned.
- Allows up to 4 HDMI sources to be connected to one HDMI display
- HDMI 2.0(3D, Deep Color, 4K); HDCP 2.2 compliant
- Superior video quality- True 4k resolutions of 4k x 2k @ 60 Hz (4:4:4)
- Supports HDR10+
- Supports IR extension
- Built-in bi-directional RS-232 serial port for high-end system control
- Auto switching modes for auto port selection
- LED indication of source device status
- Plug-and-play
The ATEN VS481C is designed for applications that require the routing of 4 sources to one compatible display device. It enables the reliable transmission at video resolutions up to True 4K (4096 x 2160 @ 60Hz 4:4:4), data rates up to 18 Gbps, 3D, Deep Color up to 12-bit, and HD lossless audio formats. Integrator-friendly features include Auto Switching modes for auto port selection, bi-directional RS-232, and IR for remote device control.
Engineered to meet today’s demand of True 4K signal transmission and user- oriented design, the ATEN VS481C is a powerful solution for a wide range of settings, such as home theater, meeting rooms, trade shows, and shopping centers.
Engineered to meet today’s demand of True 4K signal transmission and user- oriented design, the ATEN VS481C is a powerful solution for a wide range of settings, such as home theater, meeting rooms, trade shows, and shopping centers.

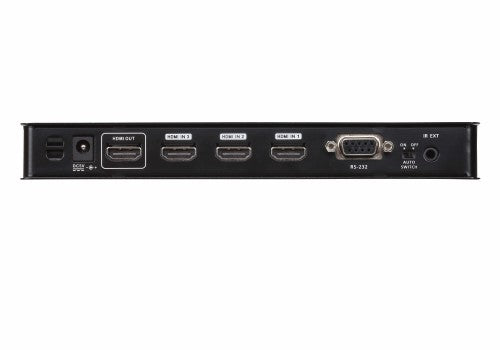

| Ports & interfaces | |
|---|---|
| Video port type | HDMI |
| RS-232 ports | 1 |
| HDMI version | 2.0 |
| HDMI ports quantity | 4 |
| Number of HDMI outputs | 4 |
| DC-in jack | Yes |
| Features | |
| Product colour | Black |
| Input impedance | 100 Ω |
| Remote control type | IR |
| Plug and Play | Yes |
| Maximum resolution | 4096 x 2160 pixels |
| Maximum refresh rate | 60 Hz |
| Maximum operating distance | 118.1" (3 m) |
| Material | Metal |
| LED indicators | Yes |
| HDCP | Yes |
| HD type | HD |
| Colour depth | 12 bit |
| Bandwidth | 18 Gbit/s |
| Bandwidth | 600 MHz |
| 3D | Yes |
| HDCP version | 2.2 |
| Power | |
| Power consumption (typical) | 5 W |
| Power plug type | Type A |
| Weight & dimensions | |
| Width | 32.3" (821 mm) |
| Weight | 16.6 oz (470 g) |
| Height | 9.84" (250 mm) |
| Depth | 7.87" (200 mm) |
| Operational conditions | |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Technical details | |
| Harmonized System (HS) code | 85176990 |
| Logistics data | |
| Products per master (outer) case | 10 pc(s) |
| Harmonized System (HS) code | 85176990 |
