Tripp Lite PDU3XEVSR6G32B power distribution unit (PDU) 30 AC outlet(s) 0U Black
2,812.80 CAD
Skip to product information
Out of stock
Tripp Lite PDU3XEVSR6G32B power distribution unit (PDU) 30 AC outlet(s) 0U Black
Part number
PDU3XEVSR6G32B
2,812.80 CAD
Taxes and shipping calculated at checkout.
Enjoy Free Shipping on orders over 2000 CAD
Shipping time varies based your on location.
Specifications
Weight
10.5 kg
Shipping + Returns
Shipping Policy
Ships to: Canada & USA via UPS, DHL, & Canada Post.
Fast Dispatch: Orders before 2 PM EST process same-day.
Options: Standard (Ground) and Express (Air) shipping available.
Heavy Items: Heavy freight usually requires1-2 extra days for Processing
Returns & Refunds
Return Period: Request a return within 14 days of delivery.
Restocking Fee: 20% fee applies to non-defective/change-of-mind returns.
Condition: Items must be returned in original packaging (New or Like New).
Final Sale: Software, licenses, and special orders cannot be returned.

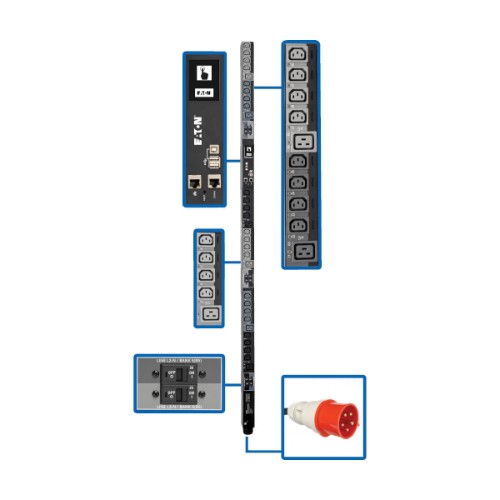

- 23kW 220/230/240V 3-phase switched 1.8m 0U PDU

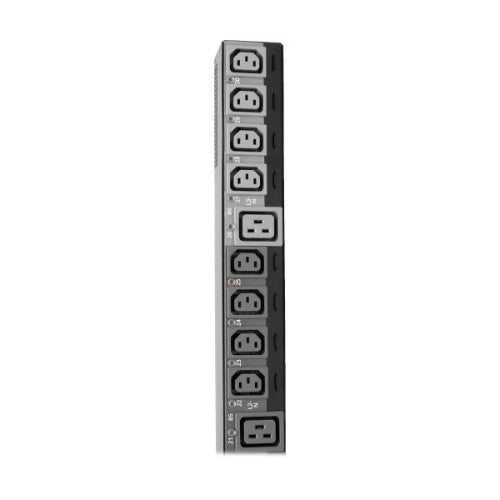

- 30 individually controllable outlets compatible with Eaton Tripp Lite power cords
- Pre-installed GbE-capable WEBCARDLX with latest version of PADM20 for IP-based Auto Probe feature

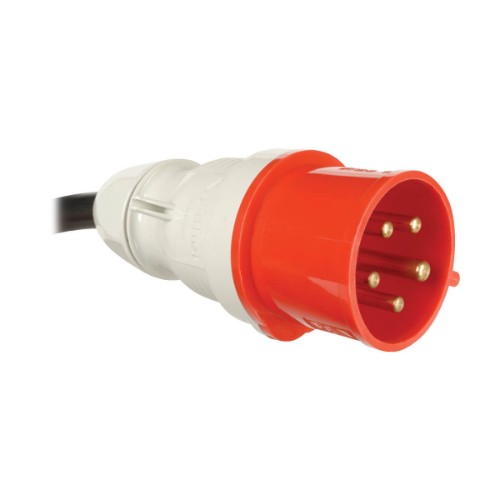

- IEC 309 32A Red 380-415V PDU input with 1.8m power cord

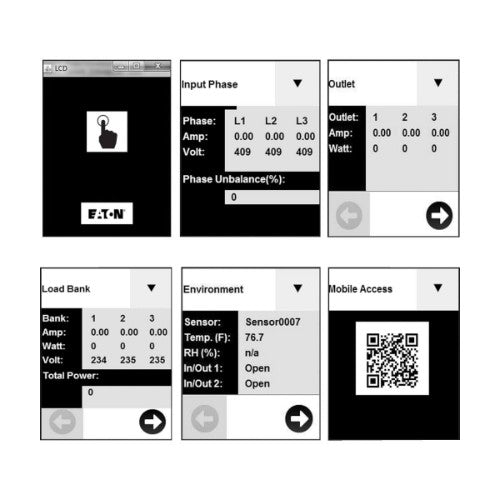

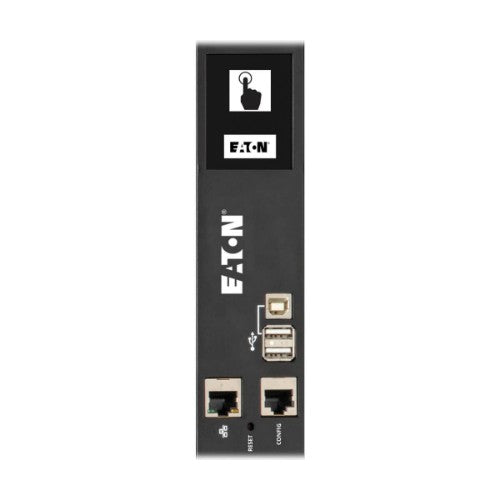

- Touchscreen LCD with mobile access option via QR code
| Design | |
|---|---|
| PDU types | Switched |
| Mounting | Vertical |
| Type | Three-phase |
| Display | LCD |
| Product colour | Black |
| Certification | UL60950-1: 2007 R12.11, IEC 60950-1: 2005+A1:2009, CAN/CSA-C22.2 NO. 60950-1-07+A1:2011, NOM, CE (EN 60950-1), FCC/CE, RoHS, TAA |
| Rack capacity | 0U |
| Housing material | Metal |
| Ports & interfaces | |
| Power plug | IEC309 |
| AC outlets quantity | 30 AC outlet(s) |
| AC outlet types | C13 coupler, C19 coupler |
| Features | |
| LED indicators | Yes |
| Cable length | 72" (1.83 m) |
| Certification | UL60950-1: 2007 R12.11, IEC 60950-1: 2005+A1:2009, CAN/CSA-C22.2 NO. 60950-1-07+A1:2011, NOM, CE (EN 60950-1), FCC/CE, RoHS, TAA |
| Ergonomics | |
| Display | LCD |
| LED indicators | Yes |
| Cable length | 72" (1.83 m) |
| Power | |
| Nominal input voltage | 380-400 V |
| Maximum power | 23000 W |
| Maximum current | 32 A |
| Nominal output voltage | 220-230 V |
| AC input frequency | 50 - 60 Hz |
| Certificates | |
| Certification | UL60950-1: 2007 R12.11, IEC 60950-1: 2005+A1:2009, CAN/CSA-C22.2 NO. 60950-1-07+A1:2011, NOM, CE (EN 60950-1), FCC/CE, RoHS, TAA |
| Compliance certificates | RoHS |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -15 - 60 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 118110.2" (0 - 3000 m) |
| Weight & dimensions | |
| Weight | 15.9 lbs (7.23 kg) |
| Width | 9.69" (246 mm) |
| Depth | 75.9" (1928 mm) |
| Height | 6.89" (175 mm) |
| Package width | 2.17" (55.1 mm) |
| Package depth | 2.52" (64 mm) |
| Package height | 70" (1778 mm) |
| Package weight | 23.1 lbs (10.5 kg) |
| Packaging content | |
| Cables included | AC |
| Manual | Yes |
| Packaging data | |
| Package width | 2.17" (55.1 mm) |
| Package depth | 2.52" (64 mm) |
| Package height | 70" (1778 mm) |
| Package weight | 23.1 lbs (10.5 kg) |
| Technical details | |
| Compliance certificates | RoHS |
| Logistics data | |
| Products per master (outer) case | 1 pc(s) |
| Country of origin | Taiwan |
