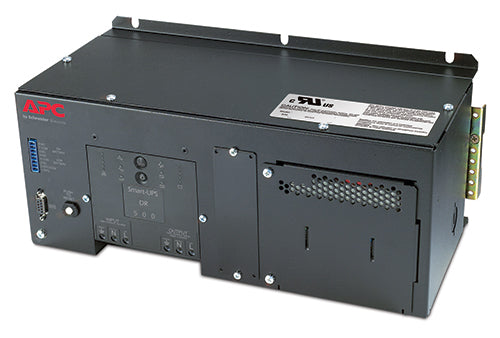

APC SUA500PDR-H uninterruptible power supply (UPS) Line-Interactive 0.5 kVA 325 W

APC SUA500PDR-H uninterruptible power supply (UPS) Line-Interactive 0.5 kVA 325 W

1,188.85 CAD

Skip to product information
APC SUA500PDR-H uninterruptible power supply (UPS) Line-Interactive 0.5 kVA 325 W
1/2

APC SUA500PDR-H uninterruptible power supply (UPS) Line-Interactive 0.5 kVA 325 W

Part number SUA500PDR-H
1,188.85 CAD
Taxes and shipping calculated at checkout.
Out of stock

Enjoy Free Shipping on orders over 2000 CAD

Shipping time varies based your on location.

Specifications
Weight
13.88 kg
Shipping + Returns

Shipping Policy

Ships to: Canada & USA via UPS, DHL, & Canada Post.

Fast Dispatch: Orders before 2 PM EST process same-day.

Options: Standard (Ground) and Express (Air) shipping available.

Heavy Items: Heavy freight usually requires1-2 extra days for Processing

Returns & Refunds

Return Period: Request a return within 14 days of delivery.

Restocking Fee: 20% fee applies to non-defective/change-of-mind returns.

Condition: Items must be returned in original packaging (New or Like New).

Final Sale: Software, licenses, and special orders cannot be returned.

User-replaceable batteries Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR).

Flexible Design Available in a wide range of configurations to suit any operating environment
Multiple mounting methods Allows for standardization on one product for use in different environments.
Plug-and-Play external batteries Ensures clean, uninterrupted power to the loads when adding extra runtime to the UPS.

Automatic restart of loads after UPS shutdown Automatically starts up the connected equipment upon the return of utility power.
Automatic self-test Periodic battery self-test ensures early detection of a battery that needs to be replaced.
Cold-start capable Provides temporary battery power when the utility power is out.
Power conditioning Protects connected loads from surges, spikes, lightning, and other power disturbances.
Wide input voltage range Designed for harsh electrical environments to save battery life.

Intelligent battery management Maximizes battery performance, life, and reliability through intelligent, precision charging.
LED Indicators Provide easy-to-read status of the unit and utility power conditions.
Optional Dry Contact I/O Accessory Each Dry Contact I/O Accessory increases the number of input contacts by 2 and output relays by 1
SmartSlot Customize UPS capabilities with management cards.

Hot-swappable batteries Ensures clean, uninterrupted power to protected equipment while batteries are being replaced.
Technical support Our experienced technical support engineers are available to answer your questions, giving you peace of mind knowing the help you need is there when you need it.
User-replaceable batteries Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR).
Power
Output power capacity 0.5 kVA
Output power 325 W
Input operation voltage (min) 82 V
Input operation voltage (max) 144 V
Surge energy rating 540 J
Efficiency 94%
Emergency Power Off (EPO) Yes
Input frequency 50/60 Hz
Performance
UPS topology Line-Interactive
Surge protection Yes
Waveform Sine
Noise level 55 dB
LED indicators Yes
Features
UPS topology Line-Interactive
Output power capacity 0.5 kVA
Output power 325 W
Input operation voltage (min) 82 V
Input operation voltage (max) 144 V
Surge energy rating 540 J
Efficiency 94%
Surge protection Yes
Emergency Power Off (EPO) Yes
Waveform Sine
Noise level 55 dB
Input frequency 50/60 Hz
Ports & interfaces
RS-232 ports 1
Battery
Number of batteries supported 1
Battery recharge time 2 h
Typical backup time at half load 8 min
Typical backup time at full load 200 min
Design
Product colour Black
LED indicators Yes
Operational conditions
Operating temperature (T-T) 0 - 50 °C
Storage temperature (T-T) -5 - 55 °C
Operating relative humidity (H-H) 0 - 95%
Storage relative humidity (H-H) 0 - 95%
Operating altitude 0 - 118110.2" (0 - 3000 m)
Non-operating altitude 0 - 590551.2" (0 - 15000 m)
Technical details
Compliance certificates RoHS
Weight & dimensions
Width 14.3" (362 mm)
Depth 6.73" (171 mm)
Height 9.76" (248 mm)
Weight 25.4 lbs (11.5 kg)
Package width 11.7" (297 mm)
Package depth 18.9" (481 mm)
Package height 11.7" (297 mm)
Package weight 29.3 lbs (13.3 kg)
Packaging data
Package width 11.7" (297 mm)
Package depth 18.9" (481 mm)
Package height 11.7" (297 mm)
Package weight 29.3 lbs (13.3 kg)
