ATEN VP1920 video switch
674.05 CAD
Skip to product information
Out of stock
ATEN VP1920 video switch
Part number
VP1920
674.05 CAD
Taxes and shipping calculated at checkout.
Enjoy Free Shipping on orders over 2000 CAD
Shipping time varies based your on location.
Specifications
Weight
2.36 kg
Shipping + Returns
Shipping Policy
Ships to: Canada & USA via UPS, DHL, & Canada Post.
Fast Dispatch: Orders before 2 PM EST process same-day.
Options: Standard (Ground) and Express (Air) shipping available.
Heavy Items: Heavy freight usually requires1-2 extra days for Processing
Returns & Refunds
Return Period: Request a return within 14 days of delivery.
Restocking Fee: 20% fee applies to non-defective/change-of-mind returns.
Condition: Items must be returned in original packaging (New or Like New).
Final Sale: Software, licenses, and special orders cannot be returned.
- Multi-format AV Switching with Simplicity
- Supports multi-format 9 Inputs and 2 HDMI outputs:
- • 3 combo inputs (HDMI/VGA, HDMI/DisplayPort, HDMI/AV/YPbPr)
- • 3 HDMI inputs
- • 2 HDMI outputs
- VGA port supports universal analog input formats (RGBHV/RGBs/YCbCr/YPbPr)
- Embed/De-embed Audio–HDMI/DisplayPort audio signals can be extracted to digital/analog audio signals; stereo / composite/component audio can be embedded to digital audio signals
- High-definition Video with Optimum Output
- Superior video quality up to 4096 x 2160@60Hz (4:2:0) / 4096 x 2160@30Hz (4:4:4) (HDMI/DP)
- EDID Expert™ - automatically selects the optimum EDID settings for smooth power-up, high-quality display, and the best video resolution across connected devices
- HDMI (3D, Deep Color, 4K); HDCP 1.4 compliant
- Versatile, Streamlined Operation

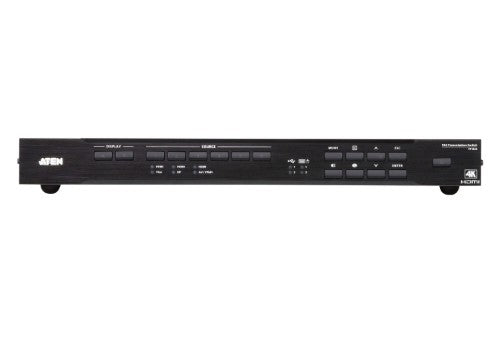

- Multiple control methods via front-panel pushbuttons, RS-232, OSD, and IR remote
- Source preview – quickly identifies and switches to the target content
- Selectable display modes (Matrix, Mirror, or PiP) for different presentation demands
- Auto switching – automatically detects and switches to a new source as soon as it is connected for time-saving and convenience
- Supports stand-by mode for power saving and fast waking up
- Extended Flexibility for USB Peripherals
- USB ports enable keyboard/mouse or touch panel control over the connected computers
- Control focus for keyboard/mouse and USB peripherals can be individually switched to a designated computer source

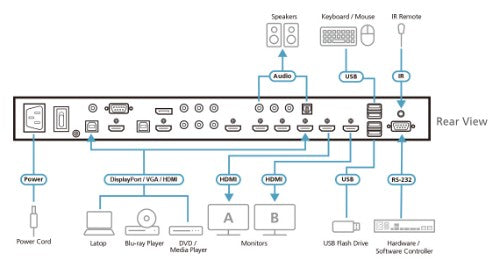

The ATEN VP1920 is a 3-in-1 presentation switch that integrates a video matrix switch, an audio processor, and analog-to-digital converter functions. With nine multi-format inputs to two HDMI 4K outputs, it is designed to boost the efficiency and impact of professional presentations.
With streamlined control from front panel pushbuttons, IR remote controller, OSD, and RS-232, the VP1920 reduces not only system device count, but also lower operation complexity. It is suitable for all small-to-medium sized corporate and education presentation environments, such as meeting rooms, classrooms, training rooms, or any other presentation setting, such as in exhibition centers or hotels.
With streamlined control from front panel pushbuttons, IR remote controller, OSD, and RS-232, the VP1920 reduces not only system device count, but also lower operation complexity. It is suitable for all small-to-medium sized corporate and education presentation environments, such as meeting rooms, classrooms, training rooms, or any other presentation setting, such as in exhibition centers or hotels.

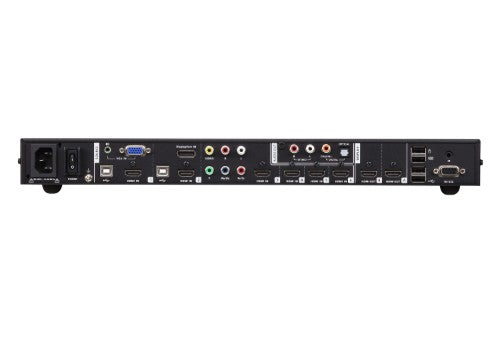

| Ports & interfaces | |
|---|---|
| VGA (D-Sub) output ports | 1 |
| VGA (D-Sub) ports quantity | 1 |
| RS-232 ports | 1 |
| HDMI ports quantity | 8 |
| Number of HDMI outputs | 2 |
| HDMI in | 6 |
| DisplayPorts quantity | 1 |
| Digital audio coaxial out | 1 |
| Composite video in | 1 |
| Component video (YPbPr/YCbCr) in | 1 |
| Audio (L/R) out | 2 |
| Audio (L/R) in | 2 |
| 3.5 mm (1/8-inch) in | Yes |
| Features | |
| Product colour | Black |
| Rack capacity | 1U |
| Heat dissipation | 60 BTU/h |
| Supported graphics resolutions | 1920 x 1200 (WUXGA), 3840 x 2160, 4096 x 2160 |
| Remote control type | IR |
| Rack mounting | Yes |
| Maximum resolution | 4096 x 2160 pixels |
| Maximum operating distance | 590.6" (15 m) |
| Material | Metal |
| LED indicators | Yes |
| HDCP | Yes |
| HD type | 4K Ultra HD |
| Built-in speaker(s) | No |
| 3D | Yes |
| HDCP version | 1.4 |
| Consumer Electronics Control (CEC) support | Yes |
| Extended display identification data (EDID) | Yes |
| Power | |
| AC adapter frequency | 50 / 60 Hz |
| AC adapter input current | 1 A |
| Power consumption (typical) | 7.3 W |
| AC input voltage | 100 - 240 V |
| Weight & dimensions | |
| Width | 17.2" (437.2 mm) |
| Weight | 5.2 lbs (2.36 kg) |
| Height | 1.73" (44 mm) |
| Depth | 6.44" (163.6 mm) |
| Packaging content | |
| User guide | Yes |
| Remote control included | Yes |
| Power cord included | Yes |
| Quantity per pack | 1 pc(s) |
| Operational conditions | |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Technical details | |
| Harmonized System (HS) code | 85176990 |
| Compliance certificates | RoHS |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
| Harmonized System (HS) code | 85176990 |
