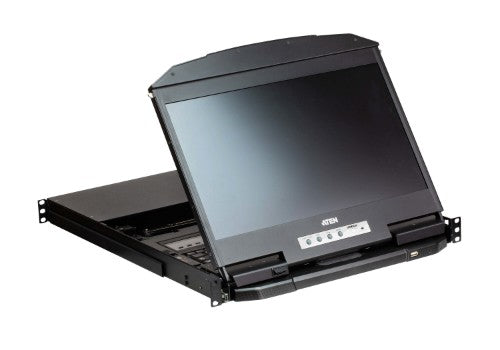

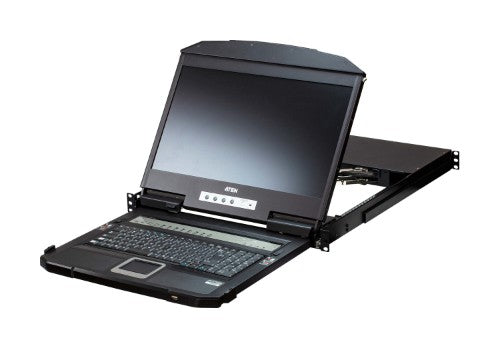

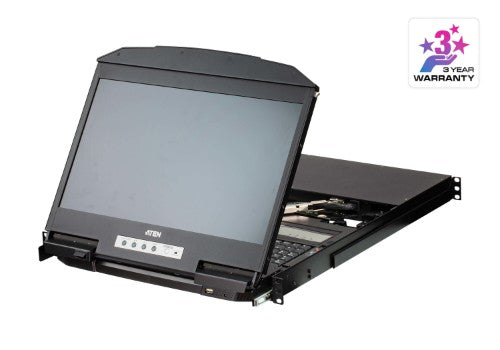

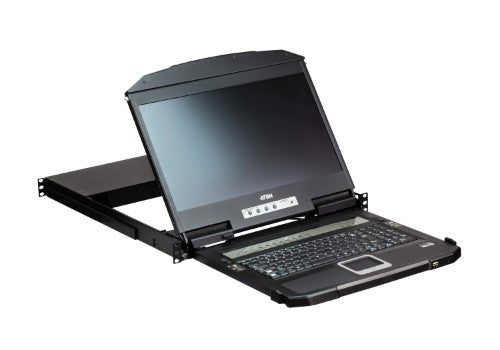

The ATEN CL3884NW LCD KVM Switch offers a space-saving, streamlined approach to KVM switch technology by integrating a keyboard, a 18.5" LED-backlit LCD monitor, and a touchpad in a 1U rack-mountable slide housing. The dual rail design enables the LCD monitor, keyboard and touchpad to operate independently of each other. To maximize space utilization, the keyboard and touchpad modules can slide back to "hideaway" when not in use, while the LCD monitor rotates back, flush against the rack, to allow convenient monitoring of computer activity.

The CL3884NW offers dual console outputs that guarantees users real-time monitoring functionality. Users can control both outputs to display the following display modes: Quad View, Picture in Picture (PiP), Picture by Picture (PbP), and Picture on Picture (PoP). The display modes have different layout options to allow users to customize which sources are being displayed. In addition, being able to cascade up to 2 levels, the CL3884NW can reach up to a maximum of 16 video sources that can be simultaneously displayed and controlled with independent keyboard and mouse.

Featuring Boundless Switching, the CL3884NW allows users to switch control to another computer by simply moving the mouse cursor across a screen border and onto the target computer display without limitations. With patented ATEN technology – Video DynaSync ™, users can enjoy better display resolutions and faster switching between systems. What’s more, the EDID modes are available for smooth power-up, high-quality display that eliminate monitor compatibility issue.

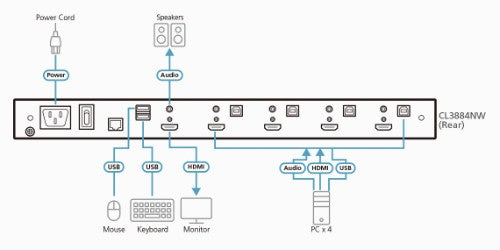

For added convenience, users can choose to manage the computer from an external console. The CL3884NW features a USB peripheral port on the unit’s front panel, ports for the external KVM console (USB keyboard/mouse and HDMI monitor) on the rear panel, and audio ports for connecting audio speakers.

The CL3884NW is a feature-rich LCD KVM switch which exceeds the requirements for control room applications in any industry in terms of its capabilities of optimizing video quality, space utilization, adaptive deployment, and operational versatility.

Note: Optional rack mount kits are available. For more information, refer to Compatible Accessories below.

Ports & interfaces
Number of computers controlled	4
Keyboard port type	USB
USB connector type	USB Type-A
Mouse port type	USB
Audio connections	Yes
Serial ports quantity	1
Serial port type	RJ-45
HDMI ports quantity	5
Console USB ports quantity	2
Console ports	HDMI, USB A
USB 2.0 Type-B ports quantity	4
Performance
Video bandwidth	60 Hz
Maximum resolution	1920 x 1080 pixels
Scan interval	5,10,15,30,60,90 s
Design
Product colour	Black
Rack mounting	Yes
Push button	Yes
LED indicators	Power
Hot keys	Yes
Housing material	Metal
Display
Built-in display	Yes
Display	LED
Display diagonal	18.5"
Power
AC input frequency	50 - 60 Hz
Input current	1 A
Input voltage	100 - 240 V
Video
Video bandwidth	60 Hz
Maximum resolution	1920 x 1080 pixels
Sustainability
Compliance certificates	RoHS
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 85%
Weight & dimensions
Width	24.8" (631 mm)
Depth	18.9" (480 mm)
Height	1.69" (42.8 mm)
Weight	24.7 lbs (11.2 kg)
Technical details
Compliance certificates	RoHS
Other features
Push button	Yes
Hot keys	Yes
