HDMI Quad-Screen Multi-Viewer Connects 4 Audio/Video Sources to One HDMI Display

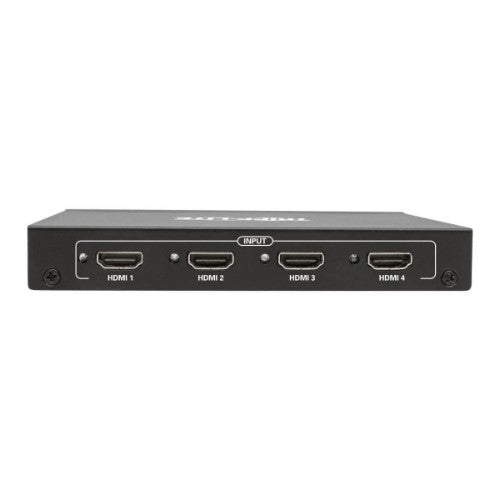

This 4-input HDMI multi-viewer allows you to connect four separate HDMI audio/video sources to one HDMI television, projector or monitor, and then display the video feeds from all four at the same time. For instance, connect a media server, Blu-ray player, security camera and Xbox to your HDTV, and watch the video transmission from all four simultaneously with built-in IR control.
Recommended for Home Theaters, Digital Signage and Other Audio/Video Applications
This HDMI quad multi-viewer is ideal for home theater, digital signage, broadcasting, video conferencing and security monitoring, just to name a few applications. Plus, it helps you avoid the cost of buying additional displays for your source devices and save space by combining four monitors into one.
Choose from Quad, Dual or Full-Screen Mode at the Click of a Button

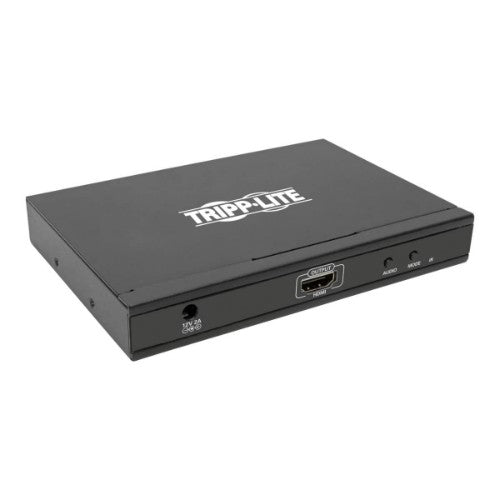

Use the push-button on the unit or the included remote control to select which mode to use. In addition to displaying all four video feeds simultaneously in Quad Mode, you can watch video from two source devices using Dual Mode or just one in Full-Screen Mode. Pressing another button on the unit lets you switch the audio feeds independently of the video, so you can watch video from one HDMI source and hear audio from another. The unit comes with 12 different preset display configurations.
Transmits Crystal-Clear Video up to 1080p for High-Definition Presentations
This HDMI multi-viewer ensures HD performance with video resolutions up to 1080p at 60 Hz (1920 x 1080).
Ready to Use Right from the Package, So You Can Plug and Play Immediately

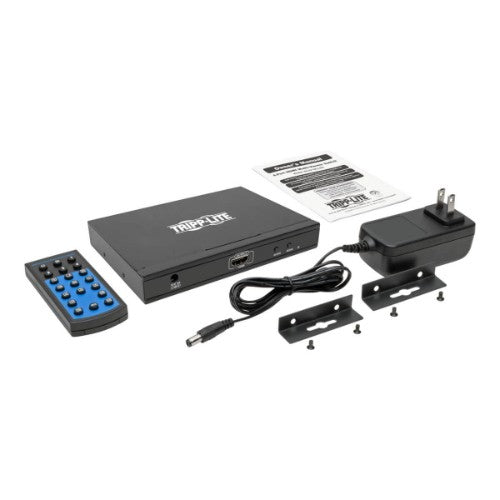

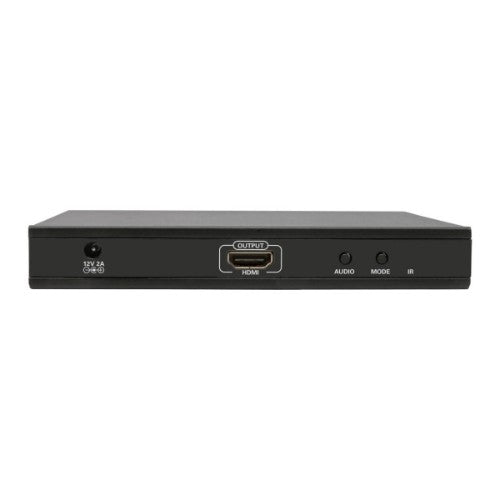

The compact plug-and-play switch requires no software or drivers to download and install. Connect your devices to the HDMI ports with user-supplied HDMI cables (such as P568-Series), and plug the included external power supply (with four international plug adapters to ensure use all over the world) into an AC power source to get started. A red LED indicates the unit is receiving power, and blue LEDs indicate connected HDMI inputs.

Ports & interfaces
Video port type	HDMI
HDMI version	1.3
HDMI ports quantity	5
Number of HDMI outputs	4
HDMI in	1
DC-in jack	Yes
Features
Product colour	Black
Heat dissipation	34.12 BTU/h
Supported video modes	1080p
Plug and Play	Yes
Maximum refresh rate	60 Hz
Material	Iron
LED indicators	Link, Power
HDCP	Yes
Cable length	47.2" (1.2 m)
Country of origin	China
HDCP version	1.2
Power
AC adapter input voltage	100 - 240 V
AC adapter frequency	50/60 Hz
AC adapter input current	0.6 A
AC adapter output voltage	12 V
AC adapter output current	2 A
Power consumption (typical)	10 W
Certificates
Certification	CE, FCC, RoHS, REACH
Weight & dimensions
Width	4.07" (103.4 mm)
Weight	12 oz (340 g)
Height	5.85" (148.5 mm)
Depth	0.839" (21.3 mm)
Packaging data
Package width	7.83" (198.9 mm)
Package weight	24 oz (680 g)
Package type	Box
Package height	3.15" (80 mm)
Package depth	5.83" (148.1 mm)
Packaging content
Plug adapter type	NA, UE, UK, AU
Manual	Yes
Remote control included	Yes
AC adapter included	Yes
Mounting kit	Yes
Operational conditions
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	20 - 90%
Technical details
Compliance certificates	RoHS
Logistics data
Master (outer) case gross weight	30 lbs (13.6 kg)
Products per master (outer) case	20 pc(s)
Master (outer) case width	16.7" (424.9 mm)
Master (outer) case length	12.4" (315 mm)
Master (outer) case height	16.5" (420.1 mm)
Country of origin	China
Master (outer) case GTIN (EAN/UPC)	10037332213997
