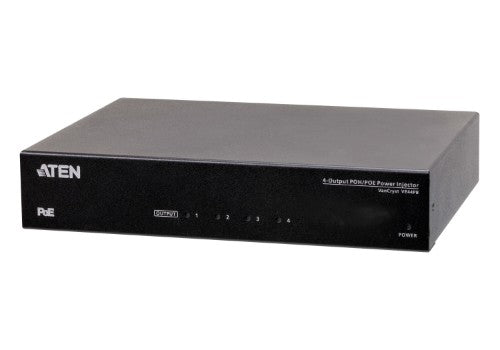

ATEN VE44PB network extender Network transmitter & receiver Black
257.26 CAD
Skip to product information
Out of stock
ATEN VE44PB network extender Network transmitter & receiver Black
Part number
VE44PB
257.26 CAD
Taxes and shipping calculated at checkout.
Enjoy Free Shipping on orders over 2000 CAD
Shipping time varies based your on location.
Specifications
Weight
1.23 kg
Shipping + Returns
Shipping Policy
Ships to: Canada & USA via UPS, DHL, & Canada Post.
Fast Dispatch: Orders before 2 PM EST process same-day.
Options: Standard (Ground) and Express (Air) shipping available.
Heavy Items: Heavy freight usually requires1-2 extra days for Processing
Returns & Refunds
Return Period: Request a return within 14 days of delivery.
Restocking Fee: 20% fee applies to non-defective/change-of-mind returns.
Condition: Items must be returned in original packaging (New or Like New).
Final Sale: Software, licenses, and special orders cannot be returned.
- Supplies power for up to four ATEN Power-over-HDBaseT (PoH) /Power-over-Ethernet (PoE) compatible products over Cat 5e/6/6a cables
- HDBaseT connectivity – extends HDMI connection over a long distance via Cat 6/6a cable
- Offers a data rate up to 10.2Gbps which is compatible with ATEN HDBaseT PoH PD products
- • Compatible ATEN PoH-powered/PoE-powered models:
- VE2812AT, VE2812AEUT, VE2812AUST, VE1812R, VE802R, VK108US, VK112EU, VK224, VK236, VK248, KE8952, or future ATEN PoH-powered/PoE-powered products which follow IEEE 802.3 af standard
- Built-in 8KV/15KV ESD protection
- Plug-and-play without additional settings
- Rack-mountable
- Supplies up to 15.4W of power per PSE port
- Status LEDs to provide an at-a-glance overview of device status, improving real-time monitoring and troubleshooting
- Assured signal quality – usage of the VE44PB power injector does not affect the signal quality of the video, audio, bi-directional RS-232, and Ethernet transmission*
- *The transmission distance maybe reduced to 80% of the original distance.
The ATEN VE44PB is a 4-port power injector for remote power supply for up to four compatible ATEN PoH-powered or PoE-powered devices via Cat 5e/6/6a cables. Deploying the VE44PB in your Pro AV facilities eliminates the need for local power supplies of the connected devices. It supplies up to 15.4W of power per PSE port. Featuring HDBaseT connectivity, the VE44PB can extend HDMI connection over a long distance via Cat 6/6a cables; meanwhile, still ensures unaffected video and image quality. Besides, the status LEDs on its front panel indicates an at-a-glance overview of the connected devices, allowing you to perform real-time monitoring and trouble shooting in the case of emergency. With its compact and rack mountable design, the VE44PB can be flexibly installed anywhere between the transmitter and receiver that require remote PoH / PoE powering.
| Performance | |
|---|---|
| Type | Network transmitter & receiver |
| Plug and Play | Yes |
| Power over Ethernet (PoE) | Yes |
| Data transfer rate | 10.2 Mbit/s |
| Cable types supported | Cat5e, Cat6, Cat6a |
| Technical details | |
| Type | Network transmitter & receiver |
| Plug and Play | Yes |
| Power over Ethernet (PoE) | Yes |
| Data transfer rate | 10.2 Mbit/s |
| Cable types supported | Cat5e, Cat6, Cat6a |
| On/off switch | Yes |
| LED indicators | Yes |
| Network | |
| Cabling technology | 10/100Base-T(X) |
| Networking standards | IEEE 802.3af |
| Ports & interfaces | |

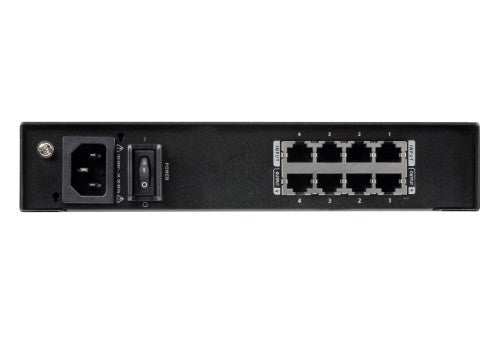

| Ethernet LAN (RJ-45) ports | 8 |
| RJ-45 ports quantity (transmitter) | 4 |
| Power over Ethernet (PoE) ports quantity | 4 |
| DC-in jack | Yes |
| Design | |
| On/off switch | Yes |
| LED indicators | Yes |
| Housing material | Metal |
| Product colour | Black |
| Rack mounting | Yes |
| Power | |
| Power over Ethernet (PoE) | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 1.1 W |
| Power consumption (max) | 1.2 W |
| Total Power over Ethernet (PoE) budget | 15.4 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating temperature (transmitter) | 0 - 80 °C |
| Storage temperature (transmitter) | 0 - 80 °C |
| Weight & dimensions | |
| Width | 6.34" (161 mm) |
| Depth | 8.46" (215 mm) |
| Height | 1.61" (41 mm) |
| Weight | 2.71 lbs (1.23 kg) |
