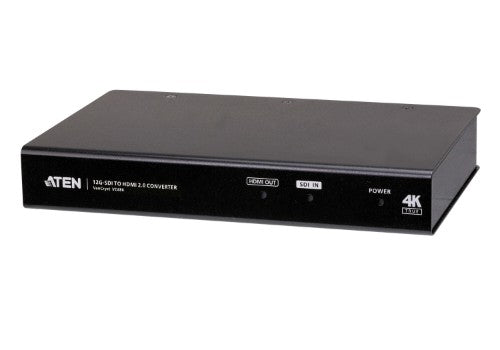

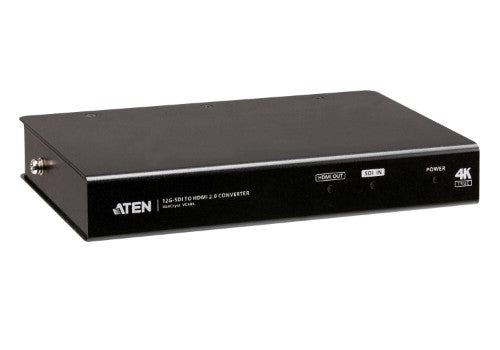

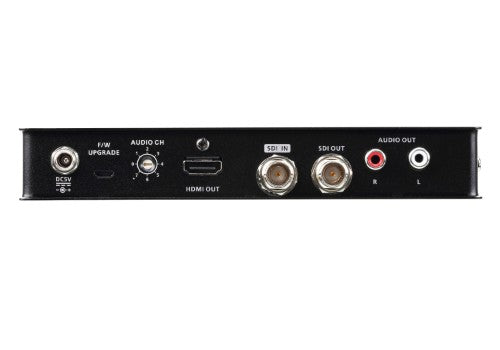

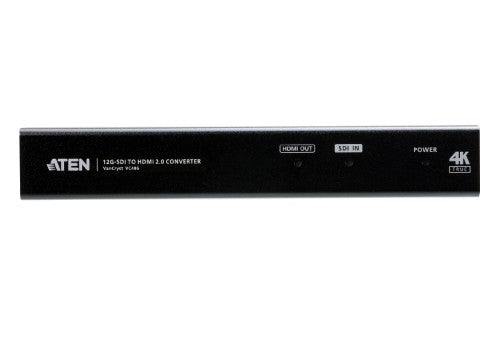

ATEN VC486 video signal converter 3840 x 2160 pixels
648.35 CAD
Skip to product information
Out of stock
ATEN VC486 video signal converter 3840 x 2160 pixels
Part number
VC486
648.35 CAD
Taxes and shipping calculated at checkout.
Enjoy Free Shipping on orders over 2000 CAD
Shipping time varies based your on location.
Specifications
Weight
0.65 kg
Shipping + Returns
Shipping Policy
Ships to: Canada & USA via UPS, DHL, & Canada Post.
Fast Dispatch: Orders before 2 PM EST process same-day.
Options: Standard (Ground) and Express (Air) shipping available.
Heavy Items: Heavy freight usually requires1-2 extra days for Processing
Returns & Refunds
Return Period: Request a return within 14 days of delivery.
Restocking Fee: 20% fee applies to non-defective/change-of-mind returns.
Condition: Items must be returned in original packaging (New or Like New).
Final Sale: Software, licenses, and special orders cannot be returned.
- Converts HD/3G/6G/12G-SDI input signals to an HDMI output in real time
- SDI signal re-clocked for high signal quality
- Supports SDI standard SMPTE-292/424/425-3/2081/2082
- Supports an SDI distance of up to 45 m (12G-SDI), 60 m (6G-SDI), 90 m (3G-SDI) and 150 m (HD-SDI)
- Supported SDI formats:
- • HD-SDI (SMPTE 292M, 296M, up to 1.485 Gbps)
- • 3G-SDI (SMPTE 424M, 425M level A and B, up to 2.97 Gbps)
- • 6G-SDI (SMPTE 2081-1, SMPTE 2081-10, up to 6 Gbps)
- • 12G-SDI (SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1 and SMPTE 2082-10, up to 12 Gbps)
- Supports analog stereo audio output with RCA (R/L) connector
- Automatic detection of input video signals
- Analog Audio channel selection with a 8-step rotary switch
- Locking power connector
The VC486 is a 12G-SDI to HDMI 2.0 Converter that converts HD/3G/6G/12G-SDI input signals to an HDMI output in real time. It supports various transmission distances depending on different SDI formats, including 45 m (12G-SDI), 60 m (6G-SDI), 90 m(3G-SDI), and 150 m (HD-SDI), offering the flexibility for professional video projects. In addition, the converter works with ATEN VC486 Configuration Software, allowing users to configure the device's input, output, and audio settings with ease. The VC486 is a perfect choice for converting SDI signal to HDMI for applications such as broadcasting, medical imaging and industrial inspection.
| Other features | |
|---|---|
| Extended display identification data (EDID) | Yes |
| Housing material | Metal |
| Product colour | Black |
| Reclocking | Yes |
| LED indicators | Yes |
| Features | |
| Extended display identification data (EDID) | Yes |
| Housing material | Metal |
| Product colour | Black |
| Reclocking | Yes |
| LED indicators | Yes |
| Video | |
| Supported video modes | 720p, 1080i, 1080p, 2160p |
| Maximum video resolution | 3840 x 2160 pixels |
| Serial Digital Interface (SDI) standard | SMPTE 292M, SMPTE 424M, SMPTE 425M, SMPTE ST-2081, SMPTE ST-2082 |
| Audio | |
| Line-out balanced impedance | 75 Ω |
| Ports & interfaces | |
| Audio output | HDMI, SDI |
| BNC video output | Yes |
| BNC output ports | 1 |
| Video out | HDMI, SDI |
| Video in | SDI |
| Output interface | HDMI |
| Host interface | SDI |
| Power | |
| Power consumption (typical) | 5.69 W |
| Operating voltage | 5 V |
| Operating current | 3 A |
| Input voltage | 5 V |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 90% |
| Storage relative humidity (H-H) | 20 - 90% |
| Weight & dimensions | |
| Width | 51" (1296 mm) |
| Depth | 7.17" (182 mm) |
| Height | 11.3" (287 mm) |
| Weight | 22.9 oz (650 g) |
| Packaging data | |
| Manual | Yes |
