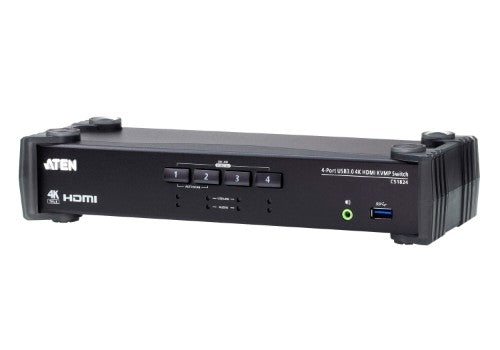

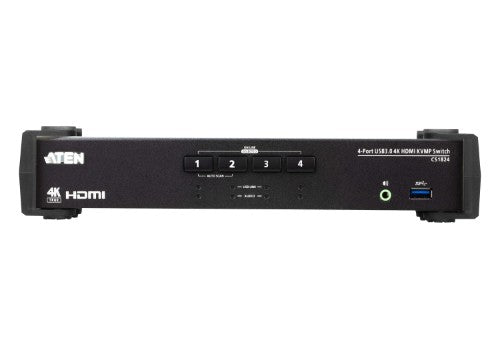

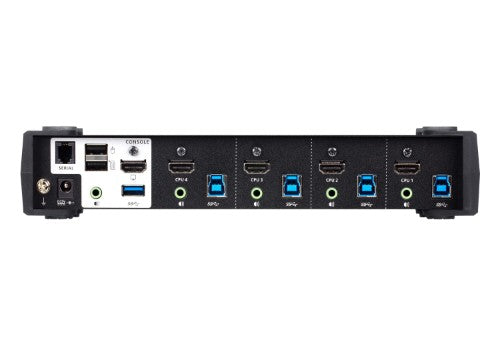

ATEN CS1824 KVM switch Black
529.72 CAD
Skip to product information
Out of stock
ATEN CS1824 KVM switch Black
Part number
CS1824
529.72 CAD
Taxes and shipping calculated at checkout.
Enjoy Free Shipping on orders over 2000 CAD
Shipping time varies based your on location.
Specifications
Weight
0.94 kg
Shipping + Returns
Shipping Policy
Ships to: Canada & USA via UPS, DHL, & Canada Post.
Fast Dispatch: Orders before 2 PM EST process same-day.
Options: Standard (Ground) and Express (Air) shipping available.
Heavy Items: Heavy freight usually requires1-2 extra days for Processing
Returns & Refunds
Return Period: Request a return within 14 days of delivery.
Restocking Fee: 20% fee applies to non-defective/change-of-mind returns.
Condition: Items must be returned in original packaging (New or Like New).
Final Sale: Software, licenses, and special orders cannot be returned.
- One USB keyboard/mouse and one HDMI monitor control four computers and share two USB peripherals
- Supports superior video quality – 4K UHD (3840 x 2160 @ 60Hz) and 4K DCI (4096 x 2160 @ 60Hz)
- Video DynaSync™ – an exclusive ATEN technology that eliminates boot-up display problems and optimizes the resolution when switching among different sources
- Built-in 2-Port USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps data transfer rates
- Audio Mixer Modes – mixes up to two audio sources as audio output
- Computer selection via pushbuttons, hotkeys, mouse1, and RS-232 commands
- ATEN default EDID mode – smooth power-up, high-quality display and resolution optimization to eliminate compatibility issue
- Independent switching of KVM, USB peripheral, and stereo audio focus2
- HDMI 2.0 compliant; HDCP 2.2 compliant
- Supports HD Audio2
- Power on detection
- Auto Scan Mode for monitoring all computers
- Firmware upgradable
- Note:
- 1. Mouse port switching is only supported under mouse emulation mode and by USB 3-key wheel mice.
- 2. HD audio through HDMI channel cannot be switched independently
The ATEN CS1824 KVMP™ Switch offers effortless management of four HDMI interface computers from a single USB keyboard, mouse and HDMI monitor. Supporting the most superior video quality up to 4K DCI (4096 x 2160 @ 60Hz), the CS1824 optimizes user experience of multitasking.
With patented ATEN technology – Video DynaSync™, users can enjoy better display resolution and faster switching between systems. What’s more, the default EDID mode is available for smooth power-up, high-quality display and eliminates monitor compatibility issue.
In addition, the CS1824 features Audio Mixer Mode which mixes audio sources from any two connected computers as audio output, benefiting users to be notified without missing any system alert even the KVM focus is set on other computers. With a built-in USB 3.1 Gen 1 hub, the CS1824 delivers data transfer rates up to 5 Gbps, allowing you to accelerate multimedia operations and share USB peripherals with ease.
Integrating these outstanding functionalities, the CS1824 provides a great advantage for those doing CGI work, graphic design, video post production, etc. to operate multiple tasks smoothly.
With patented ATEN technology – Video DynaSync™, users can enjoy better display resolution and faster switching between systems. What’s more, the default EDID mode is available for smooth power-up, high-quality display and eliminates monitor compatibility issue.
In addition, the CS1824 features Audio Mixer Mode which mixes audio sources from any two connected computers as audio output, benefiting users to be notified without missing any system alert even the KVM focus is set on other computers. With a built-in USB 3.1 Gen 1 hub, the CS1824 delivers data transfer rates up to 5 Gbps, allowing you to accelerate multimedia operations and share USB peripherals with ease.
Integrating these outstanding functionalities, the CS1824 provides a great advantage for those doing CGI work, graphic design, video post production, etc. to operate multiple tasks smoothly.
| Video | |
|---|---|
| HD type | 4K Ultra HD |
| Video bandwidth | 60 Hz |
| Maximum resolution | 4096 x 2160 pixels |
| Ports & interfaces | |
| Number of computers controlled | 4 |
| Keyboard port type | USB |
| USB connector type | USB Type-A, USB Type-B |
| Mouse port type | USB |
| Video port type | HDMI |
| Audio connections | Yes |
| Serial ports quantity | 1 |
| HDMI ports quantity | 5 |
| DC-in jack | Yes |
| Console USB ports quantity | 2 |
| Console ports | 3.5mm headphone, HDMI, USB A |
| USB hub | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity | 2 |
| Performance | |
| HD type | 4K Ultra HD |
| Video bandwidth | 60 Hz |
| Maximum resolution | 4096 x 2160 pixels |
| Scan interval | 1,99 s |
| Design | |
| Product colour | Black |
| Push button | Yes |
| Housing material | Metal, Plastic |
| Power | |
| Output voltage | 5 V |
| Power source | DC |
| Power consumption (typical) | 2.535 W |
| Technical details | |
| USB hub | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Width | 34.6" (880 mm) |
| Depth | 106.3" (2700 mm) |
| Height | 21.9" (555 mm) |
| Weight | 33.2 oz (940 g) |
| Other features | |
| Push button | Yes |
