Trendnet TI-E50 network switch Unmanaged Fast Ethernet (10/100) Black
88.76 CAD
Skip to product information
Out of stock
Trendnet TI-E50 network switch Unmanaged Fast Ethernet (10/100) Black
Part number
TI-E50
88.76 CAD
Taxes and shipping calculated at checkout.
Enjoy Free Shipping on orders over 2000 CAD
Shipping time varies based your on location.
Specifications
Weight
0.486 kg
Shipping + Returns
Shipping Policy
Ships to: Canada & USA via UPS, DHL, & Canada Post.
Fast Dispatch: Orders before 2 PM EST process same-day.
Options: Standard (Ground) and Express (Air) shipping available.
Heavy Items: Heavy freight usually requires1-2 extra days for Processing
Returns & Refunds
Return Period: Request a return within 14 days of delivery.
Restocking Fee: 20% fee applies to non-defective/change-of-mind returns.
Condition: Items must be returned in original packaging (New or Like New).
Final Sale: Software, licenses, and special orders cannot be returned.
- 5 x Fast Ethernet ports
- 1Gbps switching capacity
- Hardened IP30 rated metal switch

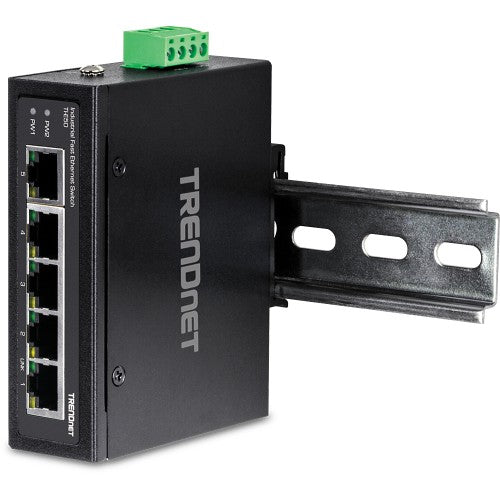

- Includes DIN-Rail mount and wall mount brackets
- Wide operating temperature range of -40° – 75° C (-40° – 167° F)
- Dual inputs provide redundant power with overload current protection
- Power supply sold separately (model: TI-M6024)
- Fanless design for silent operation
TRENDnet's Industrial Fast Ethernet DIN-Rail Switches feature a rugged IP30 rated metal enclosure. These industrial Ethernet switches are designed to withstand high levels of vibration and shock, operate in both low and high temperatures for industrial environments within a -40° – 75° C (-40° – 167° F) wide-temperature range. Redundant power inputs with overload current protection on each industrial Ethernet switch minimizes network downtime.
| Management features | |
|---|---|
| Switch type | Unmanaged |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Network | |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
| Full duplex | Yes |
| Data transmission | |
| MAC address table | 1000 entries |
| Switching capacity | 1 Gbit/s |
| Packet buffer memory | 0.056 MB |
| Forwarding rate | 0.744 Mpps |
| Design | |
| Rack mounting | No |
| Product colour | Black |
| DIN rail mounting | Yes |
| Wall mountable | Yes |
| LED indicators | Yes |
| International Protection (IP) code | IP30 |
| Certification | CE FCC IEC 60068-2-27 IEC 60068-2-32 IEC 60068-2-6 IEC 61000-4-2 IEC 61000-4-4 IEC 61000-4-5 |
| Performance | |
| Mean time between failures (MTBF) | 510304 h |
| Packet buffer memory | 0.056 MB |
| Harmonized System (HS) code | 85176990 |
| Power | |
| Power consumption (max) | 2.24 W |
| Redundant power supply (RPS) support | Yes |
| DC input voltage | 12 - 56 V |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 75 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Weight & dimensions | |
| Width | 4.09" (104 mm) |
| Depth | 3.23" (82 mm) |
| Height | 1.26" (32 mm) |
| Weight | 17.1 oz (486 g) |
| Packaging content | |
| Quick start guide | Yes |
| Certificates | |
| Certification | CE FCC IEC 60068-2-27 IEC 60068-2-32 IEC 60068-2-6 IEC 61000-4-2 IEC 61000-4-4 IEC 61000-4-5 |
| Packaging data | |
| Quick start guide | Yes |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
