ASUS HYPER M.2 X16 CARD V2 interface cards/adapter Internal
74.33 CAD
Skip to product information
Out of stock
ASUS HYPER M.2 X16 CARD V2 interface cards/adapter Internal
Part number
HYPER M.2 X16 CARD V2
74.33 CAD
Taxes and shipping calculated at checkout.
Enjoy Free Shipping on orders over 2000 CAD
Shipping time varies based your on location.
Specifications
Weight
0.556 kg
Shipping + Returns
Shipping Policy
Ships to: Canada & USA via UPS, DHL, & Canada Post.
Fast Dispatch: Orders before 2 PM EST process same-day.
Options: Standard (Ground) and Express (Air) shipping available.
Heavy Items: Heavy freight usually requires1-2 extra days for Processing
Returns & Refunds
Return Period: Request a return within 14 days of delivery.
Restocking Fee: 20% fee applies to non-defective/change-of-mind returns.
Condition: Items must be returned in original packaging (New or Like New).
Final Sale: Software, licenses, and special orders cannot be returned.
- New two-phase power solution with up to 14 Watt output supports the latest NVMe drives
- Large heatsink reduces M.2 SSD temperatures for unthrottled transfer speeds and enhanced reliability
- Support for up to four PCIe 3.0 M.2 drives with transfer bandwidth up to 128Gbps
- Intel VROC technology and AMD Ryzen Threadripper support enables creation of bootable NVMe RAID arrays using CPU PCIe lanes
RAID on CPU
Hyper M.2 x 16 card V2 is compatible with Intel® Virtual RAID on CPU (VROC) and the AMD Ryzen Threadripper platform for NVMe RAID support. Unused CPU PCle lanes can be assigned to storage, allowing you to create a bootable RAID array with multiple M.2 SSDs.
Design for unthrottled transfer speed

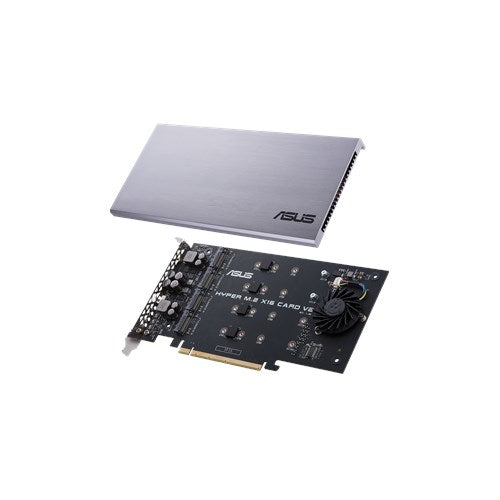

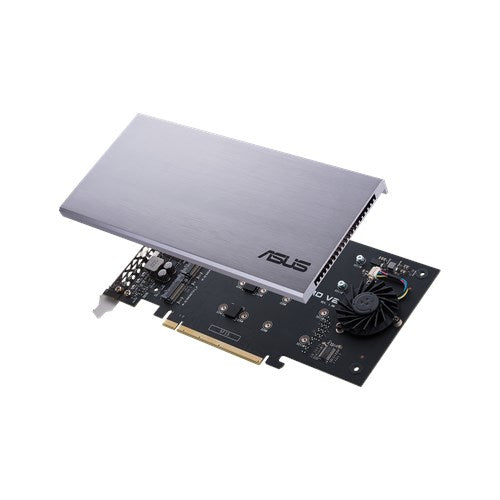

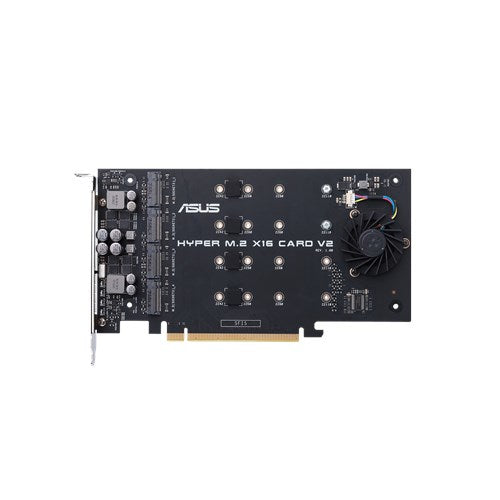

The ASUS Hyper M.2 x16 V2 card provides four M.2 slots to let you expand your system with high-performance SSD storage. Designed for the latest generation of NVMe drives, the card features an upgraded power supply that provides up to 14W of power per drive, as well as a large heatsink and active fan to ensure drives stay cool for optimum performance.
One card, 4X the bandwidth
Hyper M.2 x16 is designed specifically for Intel Virtual RAID on CPU (VROC) and the AMD Ryzen Threadripper platform for NVMe RAID support and features four M.2 slots, providing up to 128 Gbps of bandwidth per card.
Hyper M.2 x 16 card V2 is compatible with Intel® Virtual RAID on CPU (VROC) and the AMD Ryzen Threadripper platform for NVMe RAID support. Unused CPU PCle lanes can be assigned to storage, allowing you to create a bootable RAID array with multiple M.2 SSDs.
Design for unthrottled transfer speed
The ASUS Hyper M.2 x16 V2 card provides four M.2 slots to let you expand your system with high-performance SSD storage. Designed for the latest generation of NVMe drives, the card features an upgraded power supply that provides up to 14W of power per drive, as well as a large heatsink and active fan to ensure drives stay cool for optimum performance.
One card, 4X the bandwidth
Hyper M.2 x16 is designed specifically for Intel Virtual RAID on CPU (VROC) and the AMD Ryzen Threadripper platform for NVMe RAID support and features four M.2 slots, providing up to 128 Gbps of bandwidth per card.
| Ports & interfaces | |
|---|---|
| Internal | Yes |
| Host interface | PCIe |
| Output interface | M.2 |
| Number of M.2 (M) slots | 1 |
| Expansion card standard | PCIe 3.0 |
| Performance | |
| Bandwidth | 128 Gbit/s |
| Design | |
| Internal | Yes |
| Features | |
| Bandwidth | 128 Gbit/s |
| Weight & dimensions | |
| Width | 7.95" (202 mm) |
| Depth | 0.512" (13 mm) |
| Height | 3.78" (96 mm) |
