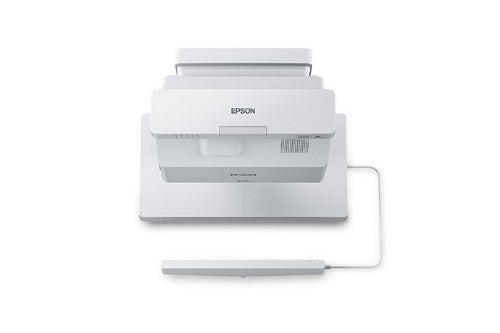

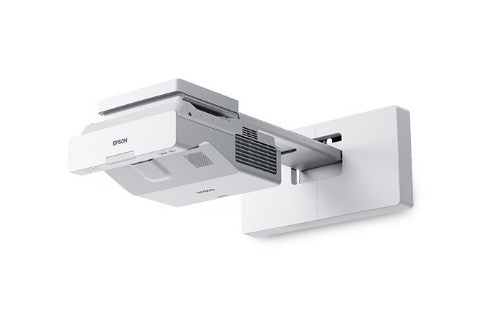

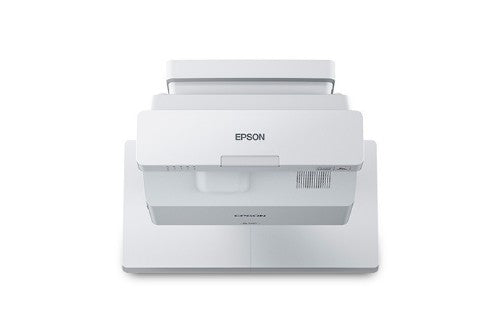

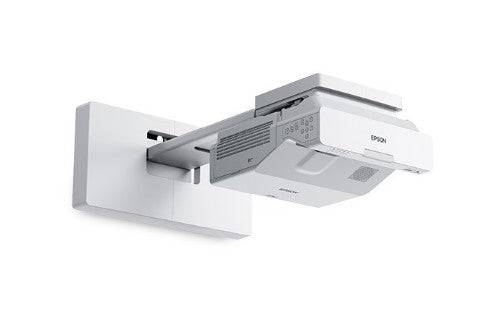

Create engaging, collaborative learning environments with this ultra-bright interactive laser display. Maximize engagement and productivity in the classroom with the dynamic BrightLink 735Fi interactive laser display. Providing 3,600 lumens of color and white brightness1, Full HD 1080p and 3LCD technology, the BrightLink 735Fi delivers ultra-bright, true-to-life 16:9 images up to 100" and 110" 16:6 ultra-wide displays, which allows users to share content from devices2 and the built-in electronic whiteboard at the same time. A convenient and seamless solution, the BrightLink 735Fi supports wireless interactivity using Miracast and features a virtually maintenance-free, 20,000-hour laser light source engine with no lamps to replace ever3. Designed to enhance classroom collaboration, the BrightLink 735Fi offers up to 75 percent more interactive space vs. 75" flat panels4 and allows multiple users to share and create content without a PC. BrightLink Interactive Displays Transforming today’s meeting spaces and learning environments. BrightLink features 3LCD technology for bold, brilliant color displays in settings with ambient light. BrightLink displays transform meeting spaces and classrooms into immersive collaborative environments where productivity is enhanced, creativity is on display, and participants fully-engaged. With images up to 120˝, flexible displays breathe new life into ordinary walls and dry erase boards, eliminating the need for dedicated electronic boards or space consuming flat panels.

Projector
Projector brightness	3600 ANSI lumens
Projection technology	3LCD
Projector native resolution	1080p (1920x1080)
Screen size compatibility	100 - 110"
Native aspect ratio	16:9
Supported aspect ratios	16:6
Contrast ratio (dynamic)	2500000:1
Number of colours	1.07 billion colors
White light output	3600 ANSI lumens
Matrix type	3-panel (p-Si TFT active)
Keystone correction, vertical	3°
Keystone correction, horizontal	3°
Colour light output	3600 ANSI lumens
Light source
Light source type	Laser
Service life of light source	20000 h
Lens system
Zoom ratio	1.35:1
Zoom capability	Yes
Focus	Manual
Fixed focal length	0.146" (3.7 mm)
Throw ratio	0.26 - 0.36
Zoom type	Manual
Video
Full HD	Yes
3D	No

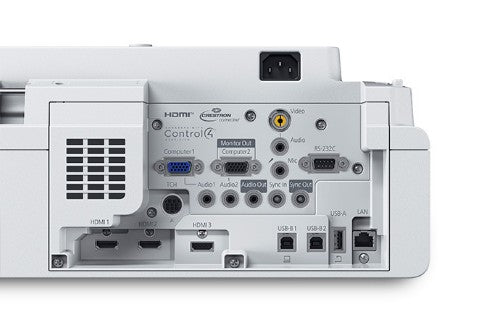

Ports & interfaces
HDBaseT port	No
USB 2.0 Type-B ports quantity	2
VGA (D-Sub) ports quantity	2
HDMI ports quantity	3
HDMI connector type	Full-size
USB 2.0 ports quantity	3
Composite video in	1
Serial interface type	RS-232C
PC in (D-Sub)	Yes
PC Audio in	Yes
DVI port	No
USB 2.0 Type-A ports quantity	1
Network
Smart TV	Yes
Ethernet LAN	Yes
Wi-Fi	Yes
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Ethernet LAN (RJ-45) ports	1
Features
Interactive	Yes
Interactive input supported	Interactive pen/Touch
Noise level	36 dB
Projection modes	Ceiling, Front, Rear
Design
Market positioning	Education
Product colour	White
Power
Power source	AC
Power consumption (typical)	267 W
Power consumption (standby)	2 W
Power consumption (PowerSave)	0.5 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Software
Windows operating systems supported	Windows 10, Windows 7, Windows 8, Windows 8.1
Mac operating systems supported	Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina
Operational conditions
Operating temperature (T-T)	5 - 40 °C
Weight & dimensions
Width	14.1" (358.1 mm)
Depth	15.6" (396.2 mm)
Height	5.25" (133.3 mm)
Weight	12.7 lbs (5.76 kg)
