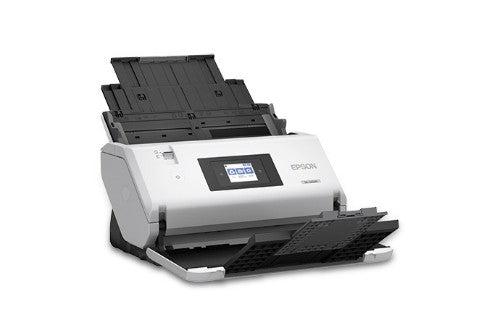

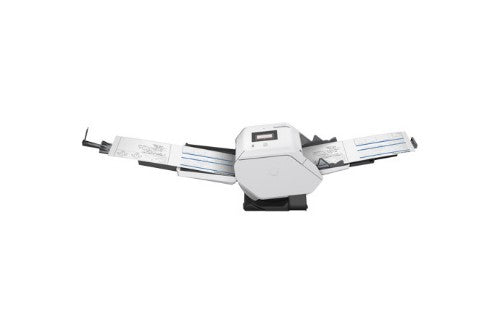

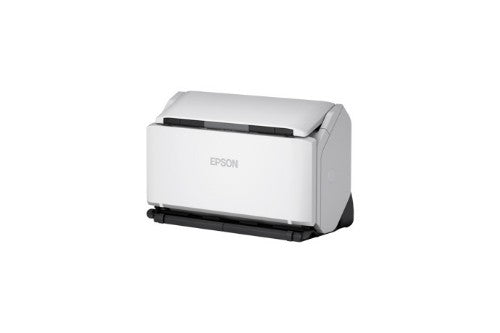

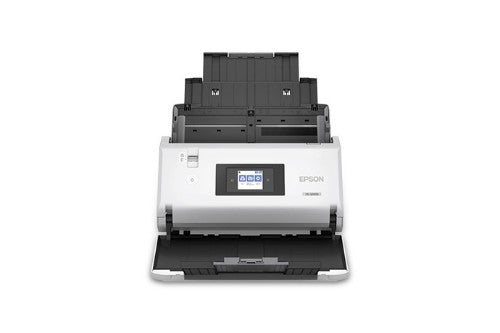

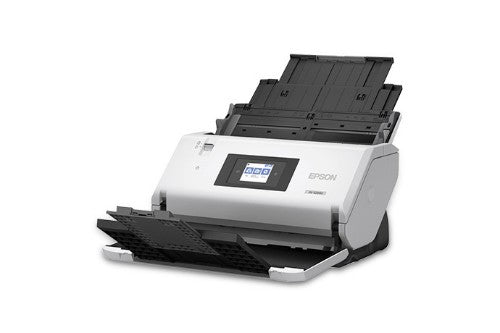

Ultra fast, versatile and compact scanner for high-volume business needs. Designed for busy offices, the DS-32000 large-format document scanner makes it easy to take on any project. It offers speeds up to 90 ppm and includes a host of productivity features, such as a 120-sheet Auto Document Feeder, dual-sided scanning, a programmable 2.7" touchscreen and a paper-protection function — all in a flexible design. With versatile paper support, it provides vertical and horizontal feed options. Accommodating sheets up to 12" x 17", it can also scan folded pages, plastic cards, sealed envelopes, passports and more. The compact DS-32000 fits your workspace and makes storage easy. Plus, it delivers a 40,000-page peak daily duty cycle. Fast speeds up to 90 ppm/180 ipm Built for busy offices 120-sheet Auto Document Feeder; plus, peak daily duty cycle of 40,000 sheets Flexible feed options vertical feed for high-volume scanning; horizontal feed for sealed envelopes, folded papers and delicate sheets. Reliability you can count on industry-leading service and support; 3-year limited warranty with next-business-day replacement Versatile paper support scan documents up to 12" x 17", folded pages, plastic cards, sealed envelopes, passports and more Easy to use large, 2.7" touchscreen display for easy access to scan jobs, settings and maintenance features

Scanning
Maximum scan size	12 x 220" (304.8 x 5588 mm)
Optical scanning resolution	600 x 600 DPI
Colour scanning	Yes
Duplex scanning	Yes
Input colour depth	30 bit
Output colour depth	24 bit
Output greyscale depth	8 bit
Output monochrome depth	24 bit
Input greyscale depth	10 bit
Design
Built-in display	Yes
Product colour	White
Display	LCD
Display diagonal	2.7"
Touchscreen	Yes
Scanner type	Sheet-fed scanner
Colour display	Yes
Performance
Sensor type	Dual CIS
Light source	White LED
Scan file formats	BMP, JPEG, PDF, PNG, PPTX, TIFF, XLSX
Daily duty cycle (max)	40000 pages
Scan to	E-mail, FTP, HTTP, PC, USB
Scan drivers	ICA,ISIS,TWAIN,WIA
Scanning noise level	67 dB
Ultrasonic double sheet detection	Yes
Sound pressure level (max)	53 dB
Input capacity
Auto document feeder (ADF) input capacity	120 sheets
Paper handling
Maximum ISO A-series paper size	A3
Scanning media types supported	Business Card, Plastic Card, Post Card(JPN)
Maximum scan area (ADF)	12 x 220" (304.8 x 5588 mm)
Minimum scan area (ADF)	2 x 2.72" (50.8 x 69 mm)
Auto Document Feeder (ADF) media weight	20 - 413 g/m²
Legal	Yes
ISO A-series sizes (A0...A9)	A3,A4,A5,A6,A7,A8
Ports & interfaces
USB port	Yes
USB version	3.2 Gen 1 (3.1 Gen 1)
Power
Power supply type	AC
Power consumption (typical)	20 W
Power consumption (standby)	11 W
Power consumption (off)	0.1 W
Input voltage	100 - 240 V
Power consumption (sleep)	1.4 W
Sleep mode	Yes
Packaging data
Quantity per pack	1 pc(s)
System requirements
Windows operating systems supported	Windows 10,Windows 7,Windows 8,Windows 8.1,Windows Vista,Windows XP
Server operating systems supported	Windows Server 2003,Windows Server 2008,Windows Server 2008 x64,Windows Server 2012 R2,Windows Server 2016
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Operational conditions
Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	25 - 60 °C
Operating relative humidity (H-H)	15 - 80%
Storage relative humidity (H-H)	15 - 85%
Weight & dimensions
Width	14.6" (371 mm)
Depth	8.19" (208 mm)
Height	8.62" (219 mm)
Weight	12.8 lbs (5.8 kg)
Packaging content
Cables included	USB
Bundled software	Epson Document Capture (Mac), Epson Document Capture Pro (Windows), Epson Scan 2
Other features
Scanner type	Sheet-fed scanner
Quantity per pack	1 pc(s)
Logistics data
Quantity per pack	1 pc(s)
