Managed and configured by the UniFi Network Controller with UniFi mobile app support, the USW-Lite-8-PoE offers Layer 2 switching protocols and features. The UniFi Network Controller and mobile app allow admins to configure and monitor virtually all of the switch features in a graphical user interface from anywhere.

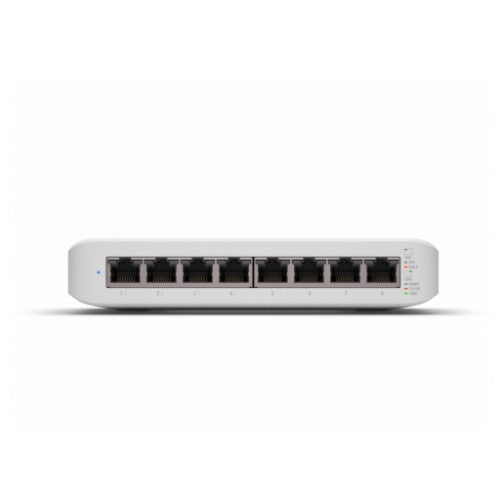

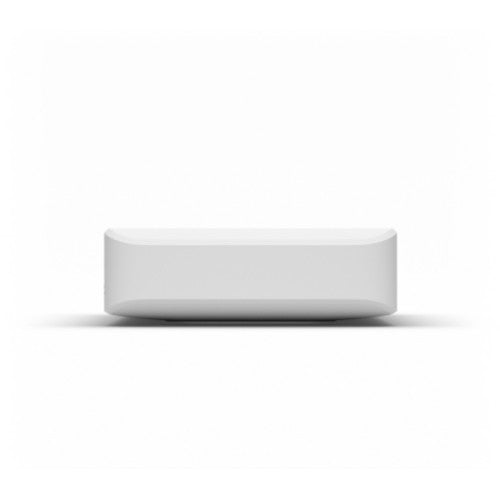

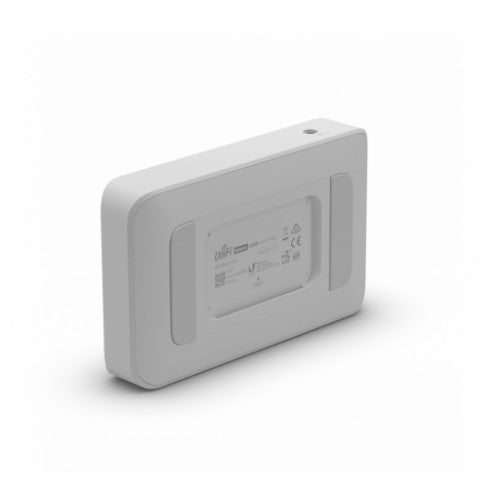

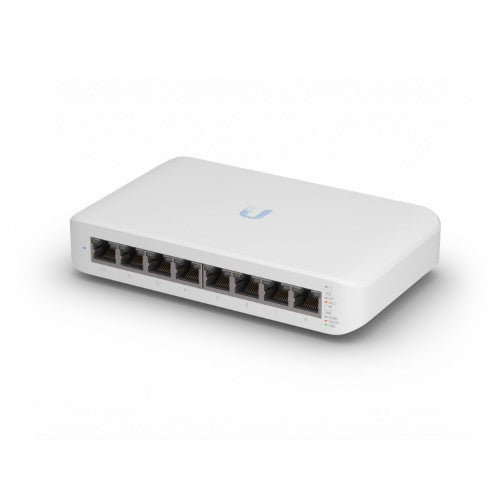

Ubiquiti UniFi Switch Lite 8 PoE Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) White
Part number
USW-LITE-8-POE
$152.77 CAD
Layer 2, 8 x RJ45, 4 x 802.3at PoE+, Gigabit Ethernet, 99.6 x 163.7 x 31.7 mm
Key Features
- (8) Gigabit RJ45 ports including (4) 802.3at PoE+ ports
- Managed by UniFi Controller (5.13.10 or later)
- External 60W power adapter

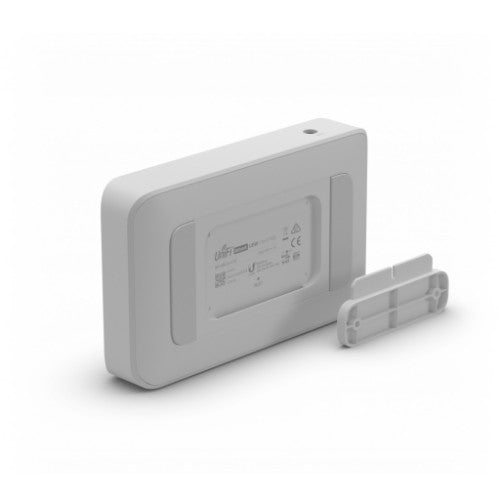

- Wall-mountable (Kit included)
Description
The USW-Lite-8-PoE is a fully managed Layer 2 switch with eight Gigabit Ethernet ports for your RJ45 Ethernet devices. Four ports also offer auto-sensing 802.3at PoE+ that provide up to a total PoE wattage of 52W for UniFi Access Points or other PoE devices.Managed and configured by the UniFi Network Controller with UniFi mobile app support, the USW-Lite-8-PoE offers Layer 2 switching protocols and features. The UniFi Network Controller and mobile app allow admins to configure and monitor virtually all of the switch features in a graphical user interface from anywhere.
Specifications
| Management features | |
|---|---|
| Switch layer | L2 |
| Switch type | Managed |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |

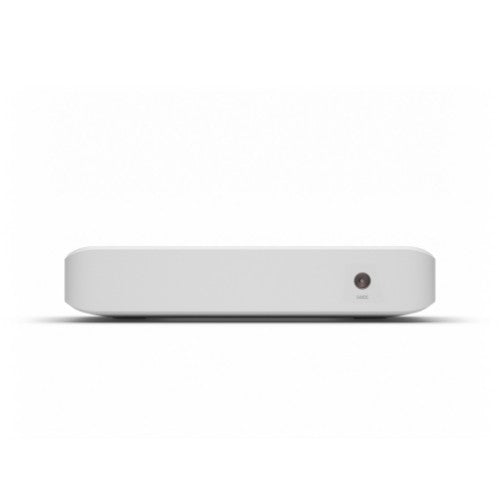

| Power connector | DC-in jack |
| Network | |
| Networking standards | IEEE 802.3at |
| 10G support | No |
| Data transmission | |
| Switching capacity | 8 Gbit/s |
| Design | |
| Rack mounting | No |
| Stackable | No |
| Product colour | White |
| Wall mountable | Yes |
| LED indicators | Yes |
| Power | |
| Power supply included | Yes |
| Power consumption (typical) | 60 W |
| Number of power supply units | 1 |
| DC input voltage | 54 V |
| Power connector | DC-in jack |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) power per port | 30 W |
| Power over Ethernet plus (PoE+) ports quantity | 4 |
| Power over Ethernet (PoE) type supported | PoE+ |
| Operational conditions | |
| Operating temperature (T-T) | -15 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
| Width | 6.44" (163.7 mm) |
| Depth | 3.92" (99.6 mm) |
| Height | 1.25" (31.7 mm) |
| Weight | 15.9 oz (450 g) |
| Performance | |
| Stackable | No |
| Harmonized System (HS) code | 85176990 |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
