Ubiquiti UF-Instant network transceiver module Fiber optic 2.488 Mbit/s SFP
54.31 CAD
Skip to product information
Out of stock
Ubiquiti UF-Instant network transceiver module Fiber optic 2.488 Mbit/s SFP
Part number
UF-INSTANT
54.31 CAD
Taxes and shipping calculated at checkout.
Enjoy Free Shipping on orders over 2000 CAD
Shipping time varies based your on location.
Specifications
Weight
0.045 kg
Shipping + Returns
Shipping Policy
Ships to: Canada & USA via UPS, DHL, & Canada Post.
Fast Dispatch: Orders before 2 PM EST process same-day.
Options: Standard (Ground) and Express (Air) shipping available.
Heavy Items: Heavy freight usually requires1-2 extra days for Processing
Returns & Refunds
Return Period: Request a return within 14 days of delivery.
Restocking Fee: 20% fee applies to non-defective/change-of-mind returns.
Condition: Items must be returned in original packaging (New or Like New).
Final Sale: Software, licenses, and special orders cannot be returned.
- High-Performance GPON CPE
- Up to 2.4 Gbps Downstream and 1.2 Gbps Upstream GPON structure
- Supports up to 20 km GPON Links
- Powerful Layer 2/3 Management Features
- (1) GPON WAN Port, SC/APC
- (1) 1Gbps SFP interface

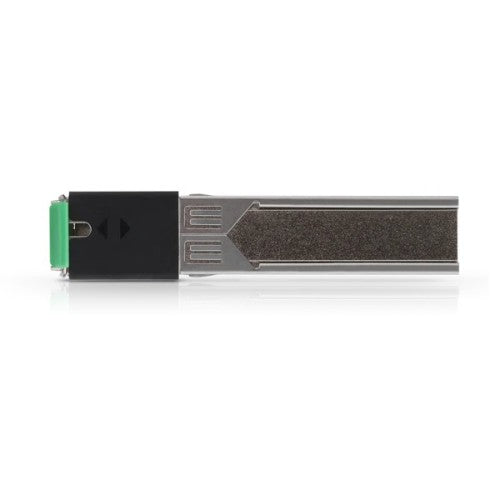

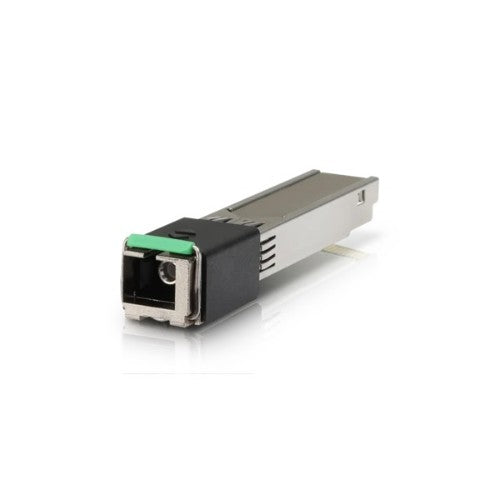

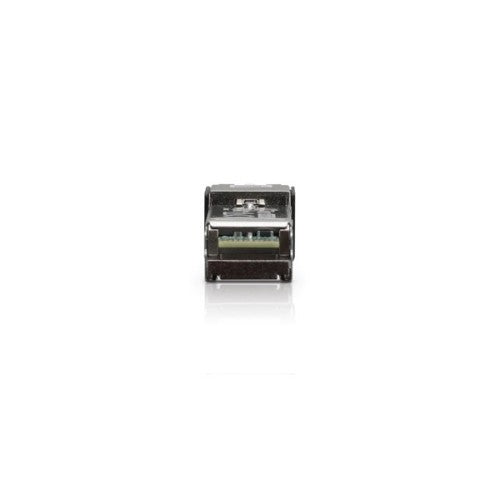

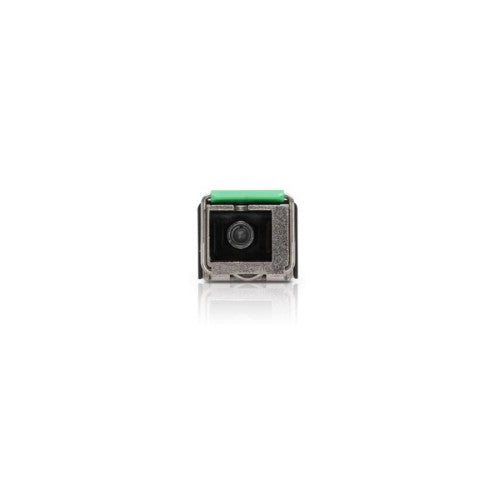

The U Fiber Instant is a high‑performance GPON CPE in the form factor of an SFP module. It features an SGMII Ethernet LAN port and is powered by SFP.
| Network | |
|---|---|
| SFP transceiver type | Fiber optic |
| Interface type | SFP |
| Maximum data transfer rate | 2.488 Mbit/s |
| Performance | |
| Product colour | Black, Metallic |
| SFP transceiver type | Fiber optic |
| Interface type | SFP |
| Maximum data transfer rate | 2.488 Mbit/s |
| Maximum transfer distance | 787401.6" (20000 m) |
| Tx power (min) | 1.5 dBmW |
| Tx power (max) | 5 dBmW |
| Rx power (min) | -28 dBmW |
| Rx power (max) | 8 dBmW |
| Harmonized System (HS) code | 85369010 |
| Features | |
| Product colour | Black, Metallic |
| Certification | CE, FCC, IC |
| Power | |
| Input voltage | 3.3 V |
| Power consumption (typical) | 2 W |
| Operational conditions | |
| Operating temperature (T-T) | -10 - 45 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
| Width | 2.73" (69.5 mm) |
| Depth | 0.539" (13.7 mm) |
| Height | 0.445" (11.3 mm) |
| Weight | 1.06 oz (30 g) |
| Certificates | |
| Certification | CE, FCC, IC |
| Logistics data | |
| Harmonized System (HS) code | 85369010 |
| Quantity per pack | 1 pc(s) |
