The 3D TLC SSD provides outstanding transfer speeds. Improved system startup, data access, application loading, and backup times are typically realized when upgrading systems from a traditional spinning disk hard drive to a 3D TLC SSD. SLC Cache is included and further enhances read/write and IOPS ratings. The 3D TLC SSD is an ultra-low-power storage solution with DevSleep support, providing improved notebook battery life and lower cooling costs in datacenters. 3D TLC SSDs are compatible with any operating system and work in both SATA and SAS environments.
Reduced Power Requirements
• No moving parts
• Super-low operating and standby power needs
• Power requirements notably reduced over a typical HD
Fast Performance
• Virtually zero spin up or seek times
• Zero rotational latency
• High sustained data transfer rate Reliable
• No volatile memory elements
• Improved resistance to shock & vibration
• Predictable and manageable failure modes reduce IT costs
Improved Operation
• Noise and vibration free
• Virtually no heat emissions

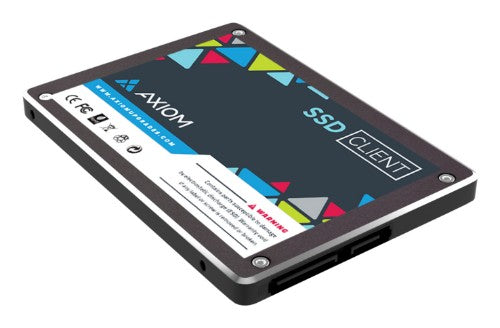

Axiom SSD2558X1TB-AX internal solid state drive 1 TB Serial ATA III 3D TLC
Part number
SSD2558X1TB-AX
$136.92 CAD
1TB, 3D TLC, SATA-III, C550n Series Mobile SSD, DEVSLP
Key Features
- Silicon Motion 3D TLC Flash controller
- StaticDataRefresh technology ensures data integrity
- SLC caching accelerates burst performance
- Device Sleep mode (DEVSLP) supported for ultra low idle power consumption
- SATA 3.0 (6Gb/s) interface (backwards compatible with SATA 2.0 (3Gb/s) and SATA 1.0 (1.5Gb/s))
- Supports Security Erase
- TRIM support (OS/driver support required)
- High-reliability 3D TLC NAND flash
- S.M.A.R.T. support
- Temperature sensor
Description
The Axiom C550n is a high-performance SATA 6Gb/s SSD ideally suited for cost-effective, small form factor and low power client and industrial storage solutions for PCs, Ultrabooks, Tablet PCs, and other embedded applications. Featuring the Silicon Motion SM2258 controller and quality 3D TLC NAND, these SSDs are loaded with enhancements to promote a high performing and reliable computing environment. TRIM, Wear Leveling, StaticDataRefresh, and LDPC ECC functions optimize data processing efficiency. S.M.A.R.T. and a built-in temperature sensor assist with monitoring drive health.The 3D TLC SSD provides outstanding transfer speeds. Improved system startup, data access, application loading, and backup times are typically realized when upgrading systems from a traditional spinning disk hard drive to a 3D TLC SSD. SLC Cache is included and further enhances read/write and IOPS ratings. The 3D TLC SSD is an ultra-low-power storage solution with DevSleep support, providing improved notebook battery life and lower cooling costs in datacenters. 3D TLC SSDs are compatible with any operating system and work in both SATA and SAS environments.
Reduced Power Requirements
• No moving parts
• Super-low operating and standby power needs
• Power requirements notably reduced over a typical HD
Fast Performance
• Virtually zero spin up or seek times
• Zero rotational latency
• High sustained data transfer rate Reliable
• No volatile memory elements
• Improved resistance to shock & vibration
• Predictable and manageable failure modes reduce IT costs
Improved Operation
• Noise and vibration free
• Virtually no heat emissions
Specifications
| Features | |
|---|---|
| Interface | Serial ATA III |
| Component for | Laptop |
| SSD capacity | 1 TB |
| Read speed | 550 MB/s |
| Write speed | 505 MB/s |
| Memory type | 3D TLC |
| Data transfer rate | 6 Gbit/s |
| Random read (4KB) | 73000 IOPS |
| Random write (4KB) | 80000 IOPS |
| S.M.A.R.T. support | Yes |
| TRIM support | Yes |
| Controller type | SMI SM2258 |
| ECC | Yes |
| DevSlp (device sleep) support | Yes |
| Mean time between failures (MTBF) | 1500000 h |
| Certification | TAA |
| Power | |
| Power consumption (max) | 2.1 W |
| Power consumption (idle) | 0.09 W |
| Performance | |
| Interface | Serial ATA III |
| Component for | Laptop |
| SSD capacity | 1 TB |
| Read speed | 550 MB/s |
| Write speed | 505 MB/s |
| Memory type | 3D TLC |
| Data transfer rate | 6 Gbit/s |
| Random read (4KB) | 73000 IOPS |
| Random write (4KB) | 80000 IOPS |
| S.M.A.R.T. support | Yes |
| TRIM support | Yes |
| Controller type | SMI SM2258 |
| ECC | Yes |
| DevSlp (device sleep) support | Yes |
| Mean time between failures (MTBF) | 1500000 h |
| Design | |
| Component for | Laptop |
| Certification | TAA |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating shock | 1500 G |
| Operating vibration | 3.1 G |
| Technical details | |
| Interface | Serial ATA III |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating shock | 1500 G |
| Operating vibration | 3.1 G |
| Compliance certificates | RoHS |
| Other features | |
| Compliance certificates | RoHS |
