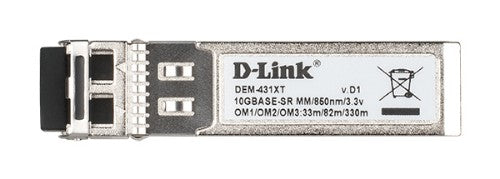

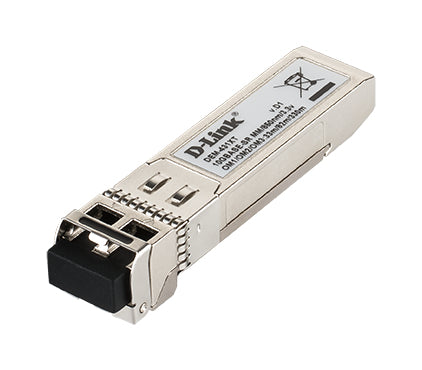

D-Link DEM-431XT network transceiver module Fiber optic 10000 Mbit/s SFP+ 850 nm
70.54 CAD
Skip to product information
Out of stock
D-Link DEM-431XT network transceiver module Fiber optic 10000 Mbit/s SFP+ 850 nm
Part number
DEM-431XT
70.54 CAD
Taxes and shipping calculated at checkout.
Enjoy Free Shipping on orders over 2000 CAD
Shipping time varies based your on location.
Specifications
Weight
0.064 kg
Shipping + Returns
Shipping Policy
Ships to: Canada & USA via UPS, DHL, & Canada Post.
Fast Dispatch: Orders before 2 PM EST process same-day.
Options: Standard (Ground) and Express (Air) shipping available.
Heavy Items: Heavy freight usually requires1-2 extra days for Processing
Returns & Refunds
Return Period: Request a return within 14 days of delivery.
Restocking Fee: 20% fee applies to non-defective/change-of-mind returns.
Condition: Items must be returned in original packaging (New or Like New).
Final Sale: Software, licenses, and special orders cannot be returned.
- Cost-effective solution for 10G fiber connection
- Small form factor, allowing higher port densities for 10G connections
- Lower power dissipation
- Hot-pluggable
- Compliant with Ethernet 802.3ae
- Compliant with fiber MSA (Multiple Source Agreement)
Designed to support distances up to 550 metres, the DEM-431XT is a high performance 850nm Multi-Mode SFP+ transceiver. Supporting Full-duplex, 10 Gigabit speeds on Multi-Mode fibre cables. The DEM-431XT is 802.3ae 10GBASE-SR compliant and supports Full-duplex 802.3x Flow control. The DEM-431XT provides the necessary signal amplification for data to be transmitted to the network cable from the port, and vice versa.
D-Link’s 10G SFP+ Module series are hot-swappable SFP+ transceivers that plug into SFP+ slots on switches and support 10G Ethernet. The D-Link 10GBASE SFP+ Module Series transceivers offer customers a wide variety of 10G Ethernet connectivity options for data centers, enterprise wiring closets, and service provider transport applications.
Enhanced Small Form-factor Pluggable Format
The transceivers use the Enhanced Small Formfactor Pluggable format (SFP+). The SFP+ form factor is smaller than other form factors such as Xenpak, X2, and 10G XFP, ensuring lower costs, lower power disruption, and higher port density. They provide the necessary signal amplification for data to be transmitted to the network cable from the port, and vice versa, for the port to receive data from the network cable.
Hot Pluggable
All D-Link transceivers are hot-pluggable. You can connect a transceiver while the system is powered on without causing any problems. This permits modules to be added or removed without interrupting the network.
10G Ethernet speeds
The transceivers all support 10G Ethernet, which results in very fast data transmissions of up to 10 Gbit/s. This is 10 times faster than Gigabit Ethernet and enables the switch to handle faster and higher data transmissions, making it very suitable for business needs.
D-Link’s 10G SFP+ Module series are hot-swappable SFP+ transceivers that plug into SFP+ slots on switches and support 10G Ethernet. The D-Link 10GBASE SFP+ Module Series transceivers offer customers a wide variety of 10G Ethernet connectivity options for data centers, enterprise wiring closets, and service provider transport applications.
Enhanced Small Form-factor Pluggable Format
The transceivers use the Enhanced Small Formfactor Pluggable format (SFP+). The SFP+ form factor is smaller than other form factors such as Xenpak, X2, and 10G XFP, ensuring lower costs, lower power disruption, and higher port density. They provide the necessary signal amplification for data to be transmitted to the network cable from the port, and vice versa, for the port to receive data from the network cable.
Hot Pluggable
All D-Link transceivers are hot-pluggable. You can connect a transceiver while the system is powered on without causing any problems. This permits modules to be added or removed without interrupting the network.
10G Ethernet speeds
The transceivers all support 10G Ethernet, which results in very fast data transmissions of up to 10 Gbit/s. This is 10 times faster than Gigabit Ethernet and enables the switch to handle faster and higher data transmissions, making it very suitable for business needs.
| Performance | |
|---|---|
| SFP transceiver type | Fiber optic |
| Interface type | SFP+ |
| Maximum data transfer rate | 10000 Mbit/s |
| Link budget | 10.1 dB |
| Fiber optic connector | LC |
| Networking standards | IEEE 802.3ae |
| Maximum transfer distance | 21653.5" (550 m) |
| Wavelength | 850 nm |
| Fiber cable diameters supported (core/cladding) | 50/125,62.5/125 µm |
| Tx power (min) | -6.5 dBmW |
| Tx power (max) | -1 dBmW |
| Rx power (min) | -11.1 dBmW |
| Rx power (max) | -1 dBmW |
| Duplex system | Full |
| Single-mode fiber (SMF) supported | No |
| Multi-mode fiber (MMF) supported | Yes |
| SFP transceiver standard | SR |
| Fiber ethernet cabling technology | 10GBASE |
| Product colour | Gold, Metallic |
| Hot-Plug support | Yes |
| Mean time between failures (MTBF) | 3960000 h |
| Harmonized System (HS) code | 85369010 |
| Features | |
| Product colour | Gold, Metallic |
| Hot-Plug support | Yes |
| Mean time between failures (MTBF) | 3960000 h |
| Certification | CE, FCC, VCCI, C-Tick, MSA |
| Safety | UL, TUV, CDRH |
| Power | |
| Maximum voltage | 3.3 V |
| Maximum current | 300 A |
| Certificates | |
| Certification | CE, FCC, VCCI, C-Tick, MSA |
| Safety | UL, TUV, CDRH |
| Compliance certificates | RoHS |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 85% |
| Storage relative humidity (H-H) | 5 - 95% |
| Network | |
| SFP transceiver type | Fiber optic |
| Interface type | SFP+ |
| Maximum data transfer rate | 10000 Mbit/s |
| Fiber optic connector | LC |
| Networking standards | IEEE 802.3ae |
| Weight & dimensions | |
| Width | 0.583" (14.8 mm) |
| Depth | 0.467" (11.8 mm) |
| Height | 2.22" (56.5 mm) |
| Weight | 0.635 oz (18 g) |
| Package width | 2.91" (74 mm) |
| Package depth | 5.16" (131 mm) |
| Package height | 1.93" (49 mm) |
| Package weight | 2.26 oz (64 g) |
| Packaging data | |
| Package width | 2.91" (74 mm) |
| Package depth | 5.16" (131 mm) |
| Package height | 1.93" (49 mm) |
| Package weight | 2.26 oz (64 g) |
| Technical details | |
| Shipping (inner) case width | 10.2" (26 cm) |
| Shipping (inner) case net weight | 7.05 lbs (3.2 kg) |
| Shipping (inner) case length | 14.2" (36 cm) |
| Shipping (inner) case height | 12.2" (31 cm) |
| Products per shipping (inner) case | 50 pc(s) |
| Products per pallet (sea) | 3000 pc(s) |
| Products per pallet (air) | 3000 pc(s) |
| Pallet gross width | 48" (122 cm) |
| Pallet gross length | 40.2" (102 cm) |
| Pallet height (sea) | 78.3" (199 cm) |
| Pallet height (air) | 78.3" (199 cm) |
| Pallet gross weight (sea) | 599.7 lbs (272 kg) |
| Pallet gross weight (air) | 599.7 lbs (272 kg) |
| Master (outer) cases per pallet (sea) | 60 pc(s) |
| Master (outer) cases per pallet (air) | 60 pc(s) |
| Compliance certificates | RoHS |
| Logistics data | |
| Harmonized System (HS) code | 85369010 |
| Shipping (inner) case width | 10.2" (26 cm) |
| Shipping (inner) case net weight | 7.05 lbs (3.2 kg) |
| Shipping (inner) case length | 14.2" (36 cm) |
| Shipping (inner) case height | 12.2" (31 cm) |
| Products per shipping (inner) case | 50 pc(s) |
| Products per pallet (sea) | 3000 pc(s) |
| Products per pallet (air) | 3000 pc(s) |
| Pallet gross width | 48" (122 cm) |
| Pallet gross length | 40.2" (102 cm) |
| Pallet height (sea) | 78.3" (199 cm) |
| Pallet height (air) | 78.3" (199 cm) |
| Pallet gross weight (sea) | 599.7 lbs (272 kg) |
| Pallet gross weight (air) | 599.7 lbs (272 kg) |
| Master (outer) cases per pallet (sea) | 60 pc(s) |
| Master (outer) cases per pallet (air) | 60 pc(s) |
| Shipping (inner) case gross weight | 9.26 lbs (4.2 kg) |
