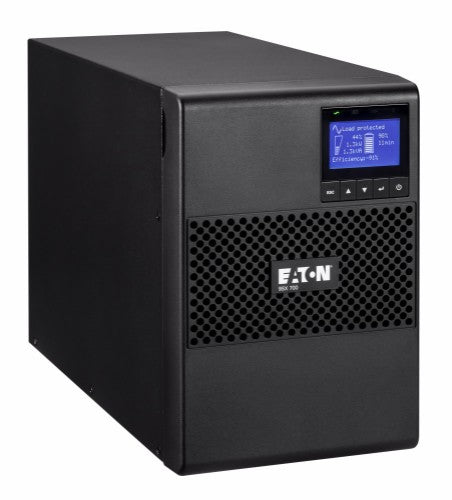

Eaton 9SX700 uninterruptible power supply (UPS) Double-conversion (Online) 0.9 kVA 630 W 6 AC outlet(s)
Part number
9SX700
$1,063.62 CAD
Eaton 9SX online, extended runtime UPS, 700 VA, 630 W, 5-15P input, Outputs: (6) 5-15R, 9.9"Hx6.3"Wx15.1"D, 26.5 lb.
Description
Eaton 9SX UPS 700VA 630 WattSpecifications
| Power | |
|---|---|
| Output power capacity | 0.9 kVA |
| Output power | 630 W |
| Input operation voltage (min) | 120 V |
| Input operation voltage (max) | 120 V |
| Output operation voltage (min) | 200 V |
| Output operation voltage (max) | 240 V |
| Power factor | 0.9 |
| Output power factor | 0.9 |
| Output frequency | 50/60 Hz |
| Input frequency | 40/70 Hz |
| Performance | |
| UPS topology | Double-conversion (Online) |
| Number of output phases | 1 |
| Number of input phases | 1 |
| Waveform | Sine |
| Power protection features | Overdischarge |
| Features | |
| UPS topology | Double-conversion (Online) |
| Output power capacity | 0.9 kVA |
| Number of output phases | 1 |
| Number of input phases | 1 |
| Output power | 630 W |
| Input operation voltage (min) | 120 V |
| Input operation voltage (max) | 120 V |
| Output operation voltage (min) | 200 V |
| Output operation voltage (max) | 240 V |
| Waveform | Sine |
| Power protection features | Overdischarge |
| Power factor | 0.9 |
| Output power factor | 0.9 |
| Output frequency | 50/60 Hz |
| Input frequency | 40/70 Hz |
| Ports & interfaces | |
| AC outlets quantity | 6 AC outlet(s) |
| USB port | Yes |
| Serial interface | Yes |
| Serial interface type | RS-232 |
| USB port type | USB Type-B |
| Battery | |
| Hot-swap battery | Yes |
| Design | |
| Form factor | Tower |
| Product colour | Black |
| Certification | cULus Listed |
| Display type | LCD |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Technical details | |
| Output frequency | 50/60 Hz |
| Weight & dimensions | |
| Width | 6.3" (160 mm) |
| Depth | 13.9" (353.1 mm) |
| Height | 9.9" (251.5 mm) |
| Weight | 26.5 lbs (12 kg) |
| Certificates | |
| Certification | cULus Listed |
