USB-C Docking Station Turns Your Device’s USB-C or Thunderbolt 3 Port into a Workstation
This multiport USB-C dock with PD Charging expands the potential of your Windows laptop, Chromebook, tablet or other device with a USB-C or Thunderbolt 3 port. It’s ideal for transmitting 4K video and digital audio to multiple large displays, adding a thumb drive and other USB peripherals, powering and charging a PD Charging-compliant mobile device, and connecting to a Gigabit Ethernet network—all at the same time.

Supports USB-C DisplayPort Alternate Mode for Transmitting Audio/Video Signals
By connecting the built-in USB-C cable to a source device that supports USB DisplayPort Alt Mode, you can output 4K video and digital audio to a compatible monitor, television or projector without installing special software drivers. Note: only one 4K display can be extended in an application. See the owner’s manual for various configurations and maximum resolutions.

Transmits Crystal-Clear 4K Video and Digital Audio
The HDMI and Mini DisplayPort (mDP) outputs support true 4K resolutions up to 4096 x 2160 at 30 Hz. The VGA port supports HD resolutions up to 1920 x 1200, including 1080p, at 60 Hz.

Extends High-Definition Video Across All 3 External Displays at the Same Time
By connecting the self-storing USB-C cable to a source that supports DisplayPort MST (Multi-Stream Transport) mode, you may connect up to three monitors simultaneously. With a Windows source device, you can display the same image on all connected monitors, extend the host desktop across them with different windows open on each, or combine them into one large display as a video wall. Note: macOS laptops or computers will only extend to one monitor. The other monitors will be mirrored. See the owner’s manual for various configurations and maximum resolutions.

USB Ports Connect Keyboards, Thumb Drives and Other Peripherals
A USB-A port and a USB-C port accept USB peripherals, such as flash drives, mice, keyboards and printers. Both support fast USB 3.2 Gen 1 data transfer rates up to 5 Gbps and are backward compatible with USB 2.0 and USB 1.1 devices. Note: Host must support USB OTG (On-the-Go).

PD Charging Port Charges the Connected Notebook, Tablet or Other Device
The USB-C Power Delivery port supports power output up to 20V 3A (60W), which is sufficient for charging and powering the connected source device, such as an Android smartphone or Chromebook. Just connect the device’s AC wall charger to the USB-C PD port.
This port, as mentioned above, can also be used for transferring data up to 5 Gbps. Note: USB-C PD port does not support Quick Charge (QC).

Accesses a Wired Gigabit Ethernet Network
The RJ45 port offers access to a Gigabit Ethernet network when Wi-Fi is unavailable or when a wired connection offers faster speeds. Connect using a UTP cable (N201-Series Cat6 cables sold separately), and enjoy true 10/100/1000 Mbps Ethernet speeds for fast data transfers.

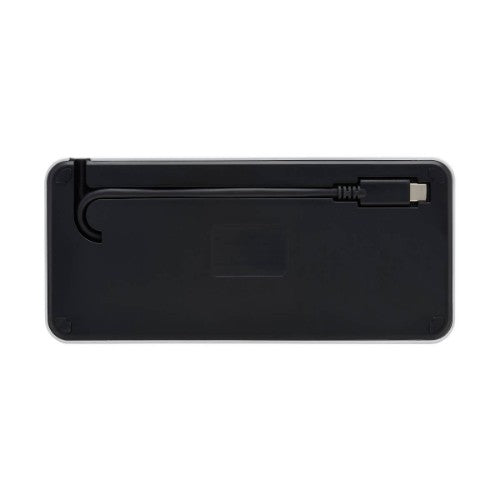

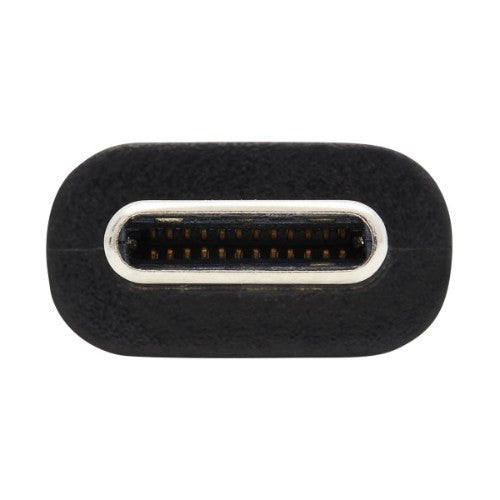

Self-Storing USB-C Connector Attaches in Either Direction
Unlike traditional USB cables that connect in only one direction, the reversible USB-C male connector plugs into a USB-C or Thunderbolt 3 port in either direction for an instant connection every time. The built-in cable fits within the base of the dock for convenient storage.

Ready to Use Right Out of the Package
The plug-and-play USB-C dock is specifically designed for use with Windows laptops and other notebooks, smartphones, tablets and devices equipped with a USB-C or Thunderbolt 3 port. It requires no software or external power source. It’s slightly larger than an average smartphone, but compact enough to fit easily into your desk space without taking up much valuable room.

Ports & interfaces
Connectivity technology	Wired
USB 2.0 ports quantity	0
Host interface	USB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
HDMI version	1.4
VGA (D-Sub) ports quantity	1
Mini DisplayPorts quantity	1
Microphone in	No
Headphone outputs	1
USB Power Delivery (USB PD)	Yes
USB Power Delivery revision	3.0
USB Power Delivery up to	60 W
Network
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Ethernet LAN (RJ-45) ports	1
Performance
Product colour	Gray
Card reader integrated	No
Number of displays supported	3
Country of origin	China
Maximum digital resolution	4096 x 2160 pixels
LED indicators	Power
Data transfer rate	5 Gbit/s
Certification	CE, FCC, REACH
HD type	4K Ultra HD
Housing material	Aluminum
Storage
Card reader integrated	No
Power
Power source type	USB
Output current	3 A
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	0 - 95%
Weight & dimensions
Weight	2.47 oz (70 g)
Package width	7.87" (199.9 mm)
Package depth	3.94" (100.1 mm)
Package height	1.5" (38.1 mm)
Package weight	8.11 oz (230 g)
Design
Product colour	Gray
Country of origin	China
LED indicators	Power
Certification	CE, FCC, REACH
Packaging data
Package width	7.87" (199.9 mm)
Package depth	3.94" (100.1 mm)
Package height	1.5" (38.1 mm)
Package weight	8.11 oz (230 g)
Packaging content
Manual	Yes
Technical details
Master (outer) case GTIN (EAN/UPC)	10037332253627
Harmonized System (HS) code	84733020
Compliance certificates	RoHS
Products per master (outer) case	10 pc(s)
Master (outer) case width	11" (279.9 mm)
Master (outer) case gross weight	5.73 lbs (2.6 kg)
Master (outer) case length	8.66" (220 mm)
Master (outer) case height	4.53" (115.1 mm)
Logistics data
Products per master (outer) case	10 pc(s)
Master (outer) case width	11" (279.9 mm)
Master (outer) case gross weight	5.73 lbs (2.6 kg)
Master (outer) case length	8.66" (220 mm)
Master (outer) case height	4.53" (115.1 mm)
Harmonized System (HS) code	84733020
