Tripp Lite PDU3XEVSRHWB power distribution unit (PDU) 30 AC outlet(s) 0U Black
2,441.13 CAD
Skip to product information
Out of stock
Tripp Lite PDU3XEVSRHWB power distribution unit (PDU) 30 AC outlet(s) 0U Black
Part number
PDU3XEVSRHWB
2,441.13 CAD
Taxes and shipping calculated at checkout.
Enjoy Free Shipping on orders over 2000 CAD
Shipping time varies based your on location.
Specifications
Weight
8.26 kg
Shipping + Returns
Shipping Policy
Ships to: Canada & USA via UPS, DHL, & Canada Post.
Fast Dispatch: Orders before 2 PM EST process same-day.
Options: Standard (Ground) and Express (Air) shipping available.
Heavy Items: Heavy freight usually requires1-2 extra days for Processing
Returns & Refunds
Return Period: Request a return within 14 days of delivery.
Restocking Fee: 20% fee applies to non-defective/change-of-mind returns.
Condition: Items must be returned in original packaging (New or Like New).
Final Sale: Software, licenses, and special orders cannot be returned.
- 28.8kW 220-240V 3-phase switched 1.8m 0U PDU

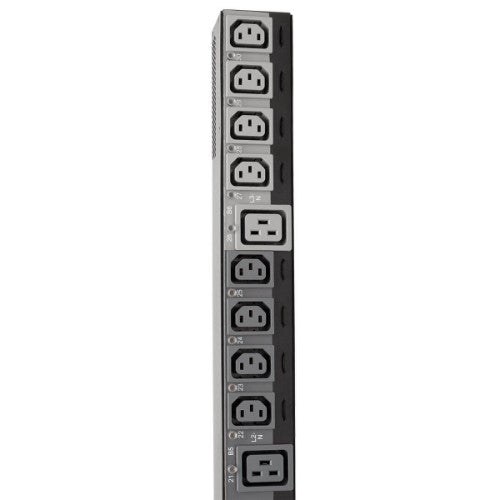

- 30 individually controllable outlets—24 C13, 6 C19
- Compatible with Eaton Tripp Lite power cords to simplify deployment and enhance reliability
- Pre-installed GbE-capable WEBCARDLX with latest version of PADM20 for IP-based Auto Probe feature

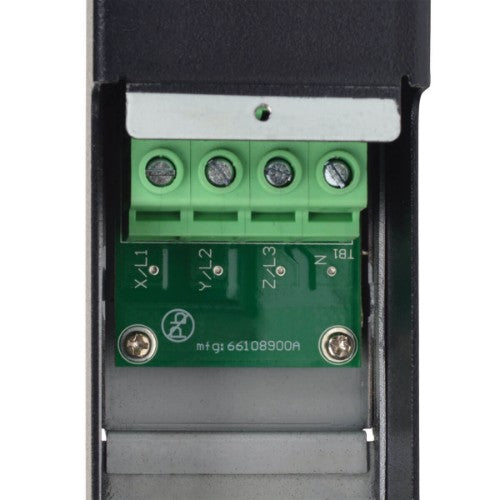

- Hardwire 380-415V input
- Touchscreen LCD with mobile access option via QR code
The PDU3XEVSRHWB 28.8kW 3-Phase Switched Power Distribution Unit provides advanced network control and remote power monitoring with the ability to turn on, turn off, reboot or lock out power to each outlet. By reducing the frequency of on-site visits, these advanced remote capabilities can save you money and reduce downtime.
The 0U PDU features 30 switched 220-240V outlets (24 C13 and 6 C19) with included plug-lock insert sleeves to prevent cables from becoming accidentally disconnected. Hardwire 380-415V input connects the PDU to a compatible AC power source, generator or protected UPS.

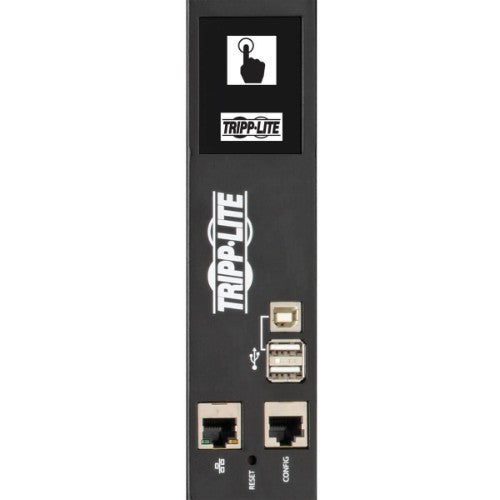

The built-in Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP.

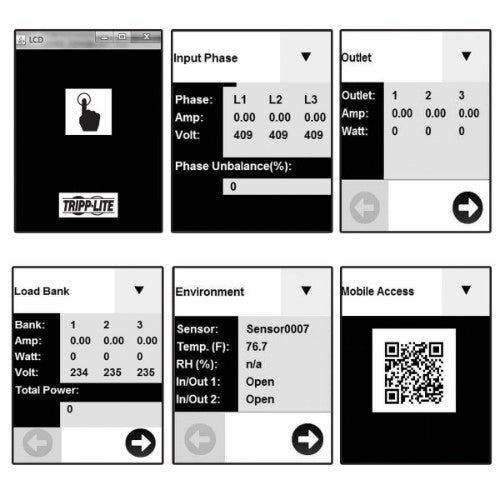

A color touchscreen LCD lets you toggle between menus to monitor input current level per phase, output current per load bank and per outlet with ±1% billing-grade accuracy, environmental sensor data and network information. It also generates a unique QR code to allow access to the switchable PDU through a mobile device.
The 0U PDU features 30 switched 220-240V outlets (24 C13 and 6 C19) with included plug-lock insert sleeves to prevent cables from becoming accidentally disconnected. Hardwire 380-415V input connects the PDU to a compatible AC power source, generator or protected UPS.
The built-in Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP.
A color touchscreen LCD lets you toggle between menus to monitor input current level per phase, output current per load bank and per outlet with ±1% billing-grade accuracy, environmental sensor data and network information. It also generates a unique QR code to allow access to the switchable PDU through a mobile device.
| Design | |
|---|---|
| PDU types | Switched |
| Mounting | Vertical |
| Type | Three-phase |
| Display | LCD |
| Product colour | Black |
| Certification | UL60950-1: 2007 R12.11, IEC 60950-1: 2005+A1:2009, CAN/CSA-C22.2 NO. 60950-1-07+A1:2011, NOM, CE (EN 60950-1), FCC/CE, RoHS, TAA |
| Rack capacity | 0U |
| Housing material | Metal |
| Ports & interfaces | |
| Power plug | IEC309 |
| AC outlets quantity | 30 AC outlet(s) |
| AC outlet types | C13 coupler, C19 coupler |
| Features | |
| LED indicators | Yes |
| Cable length | 72" (1.83 m) |
| Certification | UL60950-1: 2007 R12.11, IEC 60950-1: 2005+A1:2009, CAN/CSA-C22.2 NO. 60950-1-07+A1:2011, NOM, CE (EN 60950-1), FCC/CE, RoHS, TAA |
| Ergonomics | |
| Display | LCD |
| LED indicators | Yes |
| Cable length | 72" (1.83 m) |
| Power | |
| Nominal input voltage | 380-415 V |
| Maximum power | 28800 W |
| Maximum current | 40 A |
| Nominal output voltage | 220-240 V |
| AC input frequency | 50 - 60 Hz |
| Certificates | |
| Certification | UL60950-1: 2007 R12.11, IEC 60950-1: 2005+A1:2009, CAN/CSA-C22.2 NO. 60950-1-07+A1:2011, NOM, CE (EN 60950-1), FCC/CE, RoHS, TAA |
| Compliance certificates | RoHS |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -15 - 60 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 118110.2" (0 - 3000 m) |
| Weight & dimensions | |
| Weight | 13.4 lbs (6.1 kg) |
| Width | 2.17" (55.1 mm) |
| Depth | 2.52" (64 mm) |
| Height | 70" (1778 mm) |
| Package width | 9.69" (246 mm) |
| Package depth | 75.9" (1928 mm) |
| Package height | 6.89" (175 mm) |
| Package weight | 18.2 lbs (8.26 kg) |
| Packaging content | |
| Cables included | AC |
| Manual | Yes |
| Packaging data | |
| Package width | 9.69" (246 mm) |
| Package depth | 75.9" (1928 mm) |
| Package height | 6.89" (175 mm) |
| Package weight | 18.2 lbs (8.26 kg) |
| Technical details | |
| Compliance certificates | RoHS |
| Logistics data | |
| Master (outer) case width | 14.4" (365.8 mm) |
| Master (outer) case length | 77" (1955.8 mm) |
| Master (outer) case height | 6.4" (162.6 mm) |
| Master (outer) case gross weight | 41.4 lbs (18.8 kg) |
| Products per master (outer) case | 1 pc(s) |
| Country of origin | Taiwan |
