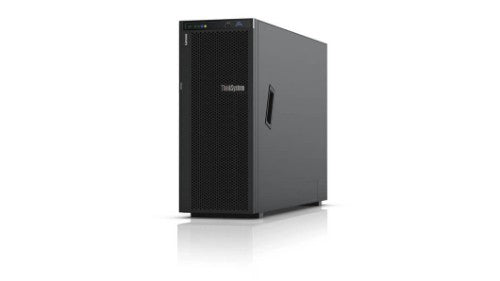

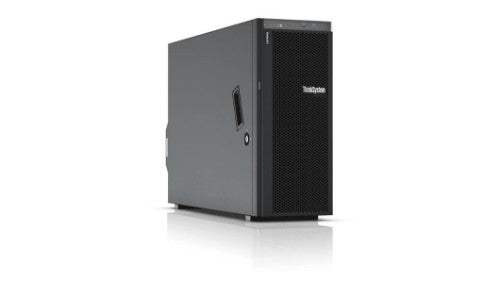

Lenovo ThinkSystem ST550 server Rack (4U) Intel Xeon Bronze 3204 1.9 GHz 16 GB DDR4-SDRAM 750 W
3,120.61 CAD
Skip to product information
Out of stock
Lenovo ThinkSystem ST550 server Rack (4U) Intel Xeon Bronze 3204 1.9 GHz 16 GB DDR4-SDRAM 750 W
Part number
7X10A0APNA
3,120.61 CAD
Taxes and shipping calculated at checkout.
Enjoy Free Shipping on orders over 2000 CAD
Shipping time varies based your on location.
Specifications
Weight
27.343 kg
Shipping + Returns
Shipping Policy
Ships to: Canada & USA via UPS, DHL, & Canada Post.
Fast Dispatch: Orders before 2 PM EST process same-day.
Options: Standard (Ground) and Express (Air) shipping available.
Heavy Items: Heavy freight usually requires1-2 extra days for Processing
Returns & Refunds
Return Period: Request a return within 14 days of delivery.
Restocking Fee: 20% fee applies to non-defective/change-of-mind returns.
Condition: Items must be returned in original packaging (New or Like New).
Final Sale: Software, licenses, and special orders cannot be returned.
- No OS
- Intel Xeon Bronze 3204 (8.25MB Cache, 1.9GHz)
- 16GB (2666MHz) DDR4-SDRAM (1 x 16)
Workload-optimized support
New second-generation Intel® Xeon® Scalable family CPUs offer increased performance of 36% over the previous generation*, support for faster 2933MHz TruDDR4 memory and Intel’s Vector Neural Network Instruction (VNNI) which accelerates processor performance for the needs of growing higher data transmitting speed and advanced computing performance. Up to 6% increases in per-core performance and hardware security mitigations round out the enhanced capabilities featured in this next-generation processor technology from Intel.*
* Based on Intel internal testing, August 2018.
Accelerate data insights
ThinkSystem ST550 supports up to two NVIDIA graphic processing unit (GPUs) cards up to 250W. Processing is offloaded to the GPU to maximize computing power and application performance, and the server is optimized to process large blocks of data in parallel. This high-performance parallel computing makes the ST550 ideal for virtualization, VDI, and private cloud.
Flexible storage
Lenovo AnyBay design features a choice of drive interface type in the same drive bay: SAS drives, SATA drives, or U.2 NVMe PCIe drives. Freedom to configure some of the bays with PCIe SSDs and still use the remaining bays for capacity SAS drives provides the ability to upgrade to more PCIe SSDs in the future as needed.
New second-generation Intel® Xeon® Scalable family CPUs offer increased performance of 36% over the previous generation*, support for faster 2933MHz TruDDR4 memory and Intel’s Vector Neural Network Instruction (VNNI) which accelerates processor performance for the needs of growing higher data transmitting speed and advanced computing performance. Up to 6% increases in per-core performance and hardware security mitigations round out the enhanced capabilities featured in this next-generation processor technology from Intel.*
* Based on Intel internal testing, August 2018.
Accelerate data insights
ThinkSystem ST550 supports up to two NVIDIA graphic processing unit (GPUs) cards up to 250W. Processing is offloaded to the GPU to maximize computing power and application performance, and the server is optimized to process large blocks of data in parallel. This high-performance parallel computing makes the ST550 ideal for virtualization, VDI, and private cloud.
Flexible storage
Lenovo AnyBay design features a choice of drive interface type in the same drive bay: SAS drives, SATA drives, or U.2 NVMe PCIe drives. Freedom to configure some of the bays with PCIe SSDs and still use the remaining bays for capacity SAS drives provides the ability to upgrade to more PCIe SSDs in the future as needed.
| Processor | |
|---|---|
| Processor generation | 2nd Generation Intel® Xeon® Scalable |
| Processor frequency | 1.9 GHz |
| Processor family | Intel Xeon Bronze |
| Processor model | 3204 |
| Processor cores | 6 |
| Number of processors installed | 1 |
| Thermal Design Power (TDP) | 85 W |
| Tcase | 77 °C |
| Supported instruction sets | AVX-512 |
| Scalability | 2S |
| Processor threads | 6 |
| Processor package size | 76.0 x 56.5 mm |
| Processor operating modes | 64-bit |
| Processor lithography | 14 nm |
| Processor codename | Cascade Lake |
| Memory types supported by processor | DDR4-SDRAM |
| Memory clock speeds supported by processor | 2133 MHz |
| Maximum number of PCI Express lanes | 48 |
| Maximum internal memory supported by processor | 1024 GB |
| Execute Disable Bit | Yes |
| Embedded options available | No |
| Processor cache | 8.25 MB |
| Processor socket | LGA 3647 (Socket P) |
| Processor manufacturer | Intel |
| Processor boost frequency | 1.9 GHz |
| Memory | |
| Internal memory | 16 GB |
| Maximum internal memory | 768 GB |
| Internal memory type | DDR4-SDRAM |
| Memory slots | 12 |
| Memory layout (slots x size) | 1 x 16 GB |
| Memory clock speed | 2666 MHz |
| Storage | |
| Supported RAID controllers | 530-8i |
| Supported storage drive interfaces | SAS, Serial ATA |
| RAID support | Yes |
| RAID levels | 0,1,5,10,50 |
| Supported HDD sizes | 3.5" |
| Optical drive type | No |
| Hot-swap | Yes |
| Graphics | |
| On-board graphics adapter model | Not available |
| Network | |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Cabling technology | 10/100/1000Base-T(X) |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 2.0 ports quantity | 5 |
| VGA (D-Sub) ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| Expansion slots | |
| PCI Express slots version | 3.0 |
| Design | |
| Chassis type | Rack (4U) |
| Rack mounting | Yes |
| Optical drive type | No |
| Product colour | Black |
| Performance | |
| Performance management | XClarity Advanced |
| Operating system installed | No |
| Compatible operating systems | Microsoft Windows Server 2016/2012 R2 Red Hat Enterprise Linux 6/7 x64 Linux Enterprise Server 12 SP2/11 SP4 VMware vSphere (ESXi) 6.5/6.0 U3 |
| Trusted Platform Module (TPM) version | 1.2 |
| Trusted Platform Module (TPM) | Yes |
| Software | |
| Operating system installed | No |
| Compatible operating systems | Microsoft Windows Server 2016/2012 R2 Red Hat Enterprise Linux 6/7 x64 Linux Enterprise Server 12 SP2/11 SP4 VMware vSphere (ESXi) 6.5/6.0 U3 |
| Processor special features | |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel® Turbo Boost Technology | No |
| Intel TSX-NI | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel 64 | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Processor ARK ID | 193381 |
| Enhanced Intel SpeedStep Technology | Yes |
| Power | |
| Redundant power supply (RPS) support | Yes |
| Number of redundant power supplies installed | 1 |
| Power supply | 750 W |
| Technical details | |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Sustainability certificates | ENERGY STAR |
| Weight & dimensions | |
| Width | 6.93" (176 mm) |
| Height | 17.2" (438 mm) |
| Depth | 26.4" (670 mm) |
