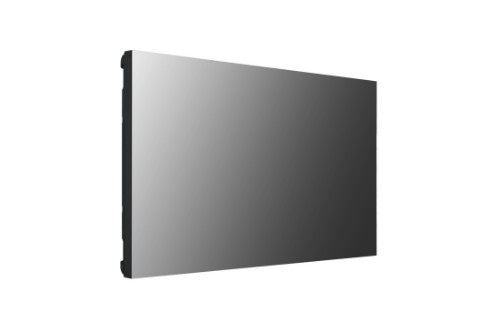

0.44mm Video Wall with External Power Supply
The 55SPH7PF Even Bezel Video Wall using LG’s leading IPS display technology, creates a virtually seamless view with vivid color throughout the assembled large screen. Also, designed with an external power box, it can be installed with minimal impact to the surrounding environment and provides virtually seamless “hot-swapping” power supply redundancy. This is optimal for Mission Critical Environments, where continuous, stable and reliable power supply is required.

Groundbreaking 0.44mm Even Bezel
The unprecedented razor-thin bezel – 0.44mm EVEN BEZEL and 0.88mm BEZEL TO BEZEL – creates a virtually borderless image. The 55SVH7PF-H makes content look more realistic, depicting a subject without any distortions. Seamlessly assembled on a large video wall screen, the 55SVH7PF-H will provide an even more immersive experience for viewers. This video wall has been verified by Nemko.

HIGHER PRODUCT RELIABILITY
Power Redundancy Support
The 55SVH7PF-H Series is designed to ensure uninterrupted power supply with external power box, providing users with efficiency and continuity in operation.

VIVID AND DYNAMIC PICTURE QUALITY
Smart Calibration
Smart Calibration is a solution that enables virtually error-free calibration while dramatically reducing time and costs compared to existing sensor calibration methods. It analyzes not only the color property differences within each individual display, but also the property differences between the connected displays.

VIVID AND DYNAMIC PICTURE QUALITY
Clear View with Non-glare Panel
Viewers can be annoyed by unnecessary light reflection when watching a screen under bright conditions. The 55SVH7PF-H series has resolved such inconveniences by increasing the level of haze to 28, which enhanced visibility and text readability.

VIVID AND DYNAMIC PICTURE QUALITY
Uniform Color Expression
Poor uniformity around bezel boundaries can produce a dark appearance to corners, which doesn’t look good on a large screen. However, the 55SVH7PF-H has enhanced uniformity, including the four corners of the display, to deliver vivid and consistent color throughout the screen.

Vivid and Dynamic Picture Quality
Higher Viewing Angle
Large screens are usually positioned higher than human-eye level, making uniform picture quality essential for video walls. The viewing angle of the VM5E series is high enough to display vivid colors throughout the screen with no distortion.

VIVID AND DYNAMIC PICTURE QUALITY
Image Gap Reduction
The 55SVH7PF-H includes an image improvement algorithm that can reduce image gaps among tiled displays when playing videos. Objects located on the bezel boundaries are adjusted for a seamless viewing experience.

webOS SMART SIGNAGE PLATFORM
Intuitive Menu Structure
The menu structure has been optimized for commercial use. It simplifies approach flows and groups similar functions together, adopting a more intuitive GUI for ease of use. This way, users can avoid having to do trial-and-error when exploring desired functions and managing displays.

webOS SMART SIGNAGE PLATFORM
Dedicated GUI For Portrait Orientation
The conventional Graphic User Interface (GUI) was designed based on landscape-oriented consumer TV usage, so On Screen Display (OSD) wasn’t well-suited for screens in portrait mode. The OSD of the 55SVH7F-A, however, consists of a long range menu with bigger font sizes and a 9:16 ratio, creating a comfortable business environment.

USER CONVENIENCE
Real-Time Care Service
Easier and faster maintenance are available with our optional cloud service solution Signage365Care*. It remotely manages status of displays in client workplaces for fault diagnosis and remote-control services, ensuring the stable operation of a client’s business.

USER CONVENIENCE
Daisy Chain Capability
A LAN daisy chain allows you to control and monitor video walls and even update their firmwares at once. Also, through UHD daisy chain using HDMI and DisplayPort, you can easily set up a UHD video wall without the need of DisplayPort MST or Matrox graphics card.

Display
Display technology	LCD
Display diagonal	55"
Display resolution	1920 x 1080 pixels
HD type	Full HD
Display brightness	700 cd/m²
Contrast ratio (typical)	1100:1
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Operating hours (hours/days)	24/7
Panel life	60000 h
Design
Placement supported	Indoor
Orientation	Horizontal/Vertical
Bezel width (top)	0.0173" (0.44 mm)
Bezel width (side)	0.0173" (0.44 mm)
Bezel width (bottom)	0.0173" (0.44 mm)
VESA mounting	Yes
Panel mounting interface	600 x 400 mm
Product colour	Black
Purpose	Universal
Ports & interfaces
HDMI ports quantity	2
DVI port	Yes
DVI-D ports quantity	1
DisplayPorts quantity	1
Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	1
USB port	Yes
RS-232C	Yes
Wi-Fi	No
Power
Power consumption (typical)	188 W
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 80%
Sustainability
Certification	FCC "A" / CE / KC
Weight & dimensions
Width	47.7" (1210.5 mm)
Depth	3.41" (86.5 mm)
Height	26.8" (681.2 mm)
Weight	35.7 lbs (16.2 kg)
Packaging data
Cables included	DisplayPort, LAN (RJ-45), RS-232
Mounting kit	Yes
Remote control included	Yes
Package width	53.3" (1353 mm)
Package depth	10.4" (263 mm)
Package height	33.7" (855 mm)
Package weight	51.1 lbs (23.2 kg)
