In stock
10-POINT MULTI-TOUCH
With 10-point multi-touch capabilities, multiple users can simultaneously write or draw on the display's surface using styluses or their fingers – or both at the same time.
SUPERCLEAR ® MVA PANEL TECHNOLOGY
Enjoy accurate and vivid colors with consistent levels of brightness no matter the vantage point. With SuperClear MVA panel technology, this monitor delivers the same image quality whether you are looking at the screen from above, below, the front, or the side.
ERGONOMIC DUAL-HINGE DESIGN
A dual-hinge stand allows the screen to be tilted and adjusted, or rest flat on a desk or table. This sturdy ergonomic design maximizes comfort and productivity, and makes this touch display well suited to a variety of touch scenarios in the home, school or office.
VERSATILE CONNECTIVITY
DisplayPort, HDMI, and VGA inputs give you the freedom to connect your display to a variety of devices.
CONTROL MULTIPLE DEVICES
RS232 offers local control for set-top boxes and other RS232 connected devices, directly with the display’s remote controller. HDMI CEC functionality offers local control of DVD players, sound systems, and other HDMI connected devices, directly with the display’s remote controller.

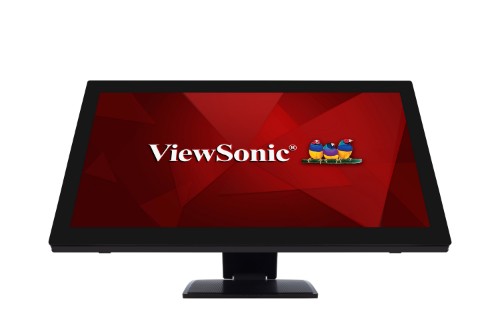

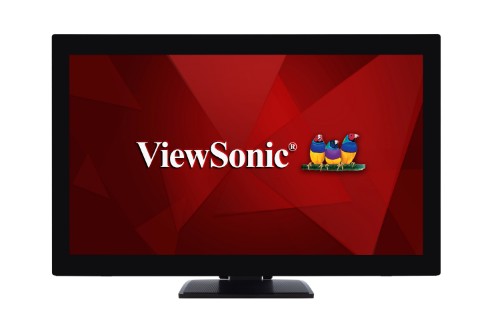

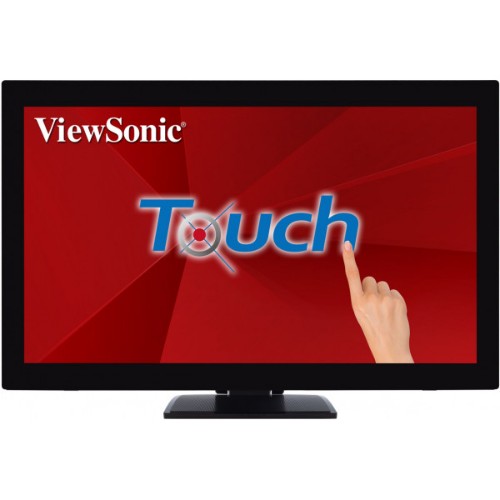

Viewsonic TD2760 computer monitor 27" 1920 x 1080 pixels Full HD LED Touchscreen Multi-user Black
Part number
TD2760
$648.53 CAD
27", 1920x1080, 16:9, MVA, 3000:1, 12ms, 230 cd/m2, 16.7M, 2xUSB 3.1 Typw-A, 1xUSB 3.1 Typw-B, 3.5mm Audio in, 3.5mm Audio out, VGA, HDMI 1.4, RS232, Display Port, 32W, VESA 100 x 100, 660x443x239 mm, 17400g
Description
The ViewSonic® TD2760 is an ideal solution for both commercial and consumer touch-screen applications. With an intuitive 10-point multi-touch display and a Full 1080p HD resolution, the 27-inch TD2760 delivers a versatile solution for use in the office or at home, as well as for use as an information kiosk in public areas, retail, and corporate sectors. SuperClear® IPS Panel technology with ultra-wide viewing angles and 50M:1 MEGA Dynamic Contrast Ratio bring greater definition and clarity to multimedia content. For added convenience, cross-platform compatibility works with operating systems such as Windows 10, Linux, Chrome, and Android. Built-in connectivity options include DisplayPort, HDMI, and VGA ports along with a VESA compatible mount design, offering additional convenience for use as a wall-mount display. With serial port RS232 and HDMI CEC, the TD2760 can directly control connected devices. Even more, the ergonomic stand makes it easy for the user to tilt, raise, and lay the monitor flat for the most natural position, and create a comfortable working environment. Lastly, low power consumption with ENERGY STAR certification saves energy costs while reducing carbon emissions.10-POINT MULTI-TOUCH
With 10-point multi-touch capabilities, multiple users can simultaneously write or draw on the display's surface using styluses or their fingers – or both at the same time.
SUPERCLEAR ® MVA PANEL TECHNOLOGY
Enjoy accurate and vivid colors with consistent levels of brightness no matter the vantage point. With SuperClear MVA panel technology, this monitor delivers the same image quality whether you are looking at the screen from above, below, the front, or the side.

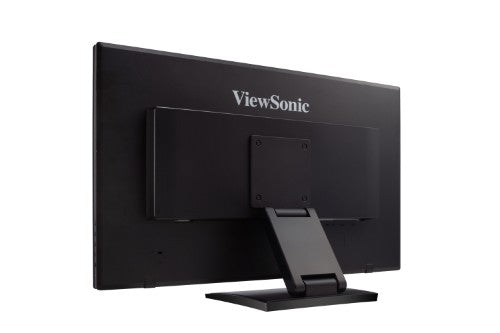

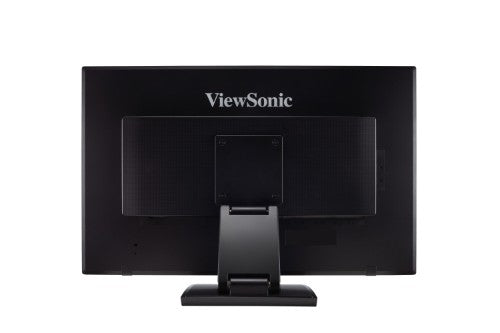

ERGONOMIC DUAL-HINGE DESIGN
A dual-hinge stand allows the screen to be tilted and adjusted, or rest flat on a desk or table. This sturdy ergonomic design maximizes comfort and productivity, and makes this touch display well suited to a variety of touch scenarios in the home, school or office.

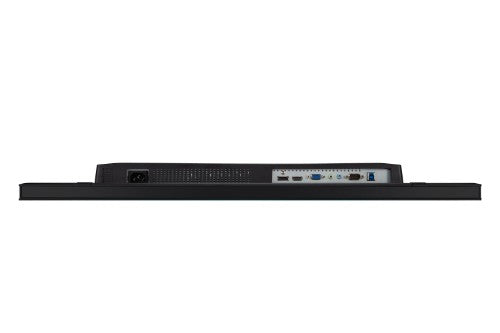

VERSATILE CONNECTIVITY
DisplayPort, HDMI, and VGA inputs give you the freedom to connect your display to a variety of devices.
CONTROL MULTIPLE DEVICES
RS232 offers local control for set-top boxes and other RS232 connected devices, directly with the display’s remote controller. HDMI CEC functionality offers local control of DVD players, sound systems, and other HDMI connected devices, directly with the display’s remote controller.
Specifications
| Display | |
|---|---|
| HDCP | Yes |
| Display diagonal | 27" |
| Response time | 6 ms |
| Display resolution | 1920 x 1080 pixels |
| Display technology | LED |
| Screen shape | Flat |
| Display number of colours | 16.78 million colors |
| Native aspect ratio | 16:9 |
| Contrast ratio (typical) | 3000:1 |
| Contrast ratio (dynamic) | 50000000:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Pixel pitch | 0.0122 x 0.0122" (0.311 x 0.311 mm) |
| Horizontal scan range | 15 - 90 kHz |
| Vertical scan range | 50 - 76 Hz |
| Aspect ratio | 16:9 |
| Viewable size, horizontal | 23.5" (59.8 cm) |
| Viewable size, vertical | 13.2" (33.6 cm) |
| Separate H/V sync | Yes |
| HD type | Full HD |
| Backlight type | LED |
| Surface hardness | 6H |
| Touchscreen type | Multi-user |
| Touchscreen | Yes |
| Number of simultaneous touchpoints | 10 |
| Panel type | VA |
| Display diagonal (metric) | 27" (68.6 cm) |
| Touch technology | Multi-touch |
| Touchscreen technology | Projected capacitive system |
| LED backlight | Yes |
| Display brightness | 300 cd/m² |
| Anti-glare screen | Yes |
| Performance | |
| Mean time between failures (MTBF) | 30000 h |
| AMD FreeSync | No |
| NVIDIA G-SYNC | No |
| Multimedia | |
| Built-in speaker(s) | Yes |
| Built-in camera | No |
| Number of speakers | 2 |
| RMS rated power | 4 W |
| Built-in microphone | No |
| Design | |
| Product colour | Black |
| Certification | MX-CoC, Mexico Energy, CE, CE EMC, CB |
| Glass thickness | 0.0740" (1.88 mm) |
| Mean time between failures (MTBF) | 30000 h |
| Ports & interfaces | |
| Built-in USB hub | Yes |
| USB hub version | 3.2 Gen 1 (3.1 Gen 1) |
| USB upstream port type | USB Type-B |
| Number of upstream ports | 1 |
| USB Type-A downstream ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| RS-232 ports | 1 |
| HDCP | Yes |
| Audio input | 1 |
| Audio output | 1 |
| HDMI | Yes |
| HDMI version | 1.4 |
| DisplayPort version | 1.2 |
| Number of USB Type-B upstream ports quantity | 1 |
| Ergonomics | |
| Wall mountable | Yes |
| Cable lock slot | Yes |
| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
| Tilt angle range | -4 - 90° |
| On Screen Display (OSD) | Yes |
| Number of OSD languages | 14 |
| Cable lock slot type | Kensington |
| Tilt adjustment | Yes |
| Power | |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (standby) | 0.3 W |
| Power consumption (typical) | 26 W |
| Power consumption (off) | 0.3 W |
| Power supply type | AC |
| Energy efficiency class (SDR) | F |
| Energy consumption (SDR) per 1000 hours | 19 kWh |
| European Product Registry for Energy Labelling (EPREL) code | 384384 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 20 - 90% |
| Weight & dimensions | |
| Width (with stand) | 26" (660 mm) |
| Depth (with stand) | 9.41" (239 mm) |
| Height (with stand) | 17.4" (443 mm) |
| Width (without stand) | 26" (660 mm) |
| Height (without stand) | 16.1" (410 mm) |
| Depth (without stand) | 2.28" (58 mm) |
| Weight (with stand) | 17.4 lbs (7.9 kg) |
| Weight (without stand) | 12.1 lbs (5.5 kg) |
| Package width | 29.6" (753 mm) |
| Package depth | 8.03" (204 mm) |
| Package height | 20.7" (525 mm) |
| Package weight | 22.5 lbs (10.2 kg) |
| Packaging data | |
| Package width | 29.6" (753 mm) |
| Package depth | 8.03" (204 mm) |
| Package height | 20.7" (525 mm) |
| Package weight | 22.5 lbs (10.2 kg) |
| Quick start guide | Yes |
| Packaging content | |
| Quick start guide | Yes |
| Sustainability | |
| European Product Registry for Energy Labelling (EPREL) code | 384384 |
| Other features | |
| Mean time between failures (MTBF) | 30000 h |
| Connection to PC | Yes |
| Certification | MX-CoC, Mexico Energy, CE, CE EMC, CB |
| Accessories included | Power Cable, VGA Cable, HDMI Cable, USB Cable, Audio Cable |
| Width (without stand) | 26" (660 mm) |
| Quick start guide | Yes |
| Height (without stand) | 16.1" (410 mm) |
| HDMI | Yes |
| Depth (without stand) | 2.28" (58 mm) |
| Surface hardness | 6H |
| Power supply type | AC |
| Touchscreen type | Multi-user |
| Touchscreen | Yes |
| Number of simultaneous touchpoints | 10 |
| Certificates | |
| Certification | MX-CoC, Mexico Energy, CE, CE EMC, CB |
| Logistics data | |
| Harmonized System (HS) code | 85285210 |
| Technical details | |
| Power supply type | AC |
| Weight (with stand) | 17.4 lbs (7.9 kg) |
| Surface hardness | 6H |
| Touchscreen type | Multi-user |
| Touchscreen | Yes |
| Number of simultaneous touchpoints | 10 |
