We’ve redesigned our UniFi Switches from the ground up.
Near Silent Cooling
Our new airflow design reduces the need for fan usage.
Redundant Power System
UniFi SmartPower RPS, USP-RPS, is our PSU failover system.
Power Supply Failure
In the event of a UniFi switch power supply failure, the USP-RPS automatically supplies redundant power to the failed device.
UniFi SmartPower
One UniFi SmartPower device can support up to 6 devices until the failed device is replaced.
Touchscreen Display
The 1.3" touchscreen display allows easy monitoring and quick troubleshooting.

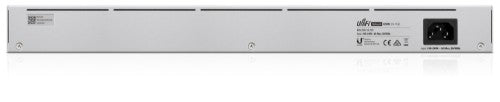

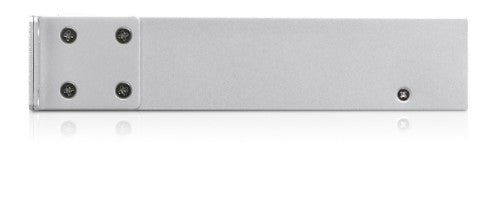

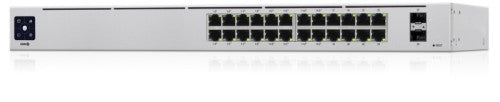

Ubiquiti UniFi 24-Port PoE Managed L2/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Silver
Part number
USW-24-POE
$519.45 CAD
USW-24-POE Gen 2, AC/DC, Internal, 120W, (24) 10/100/1000 RJ45 Ports, (2) 1G SFP, 442.4 x 200 x 43.7 mm
Description
Second-Generation UniFi SwitchingWe’ve redesigned our UniFi Switches from the ground up.
Near Silent Cooling
Our new airflow design reduces the need for fan usage.
Redundant Power System
UniFi SmartPower RPS, USP-RPS, is our PSU failover system.
Power Supply Failure
In the event of a UniFi switch power supply failure, the USP-RPS automatically supplies redundant power to the failed device.
UniFi SmartPower
One UniFi SmartPower device can support up to 6 devices until the failed device is replaced.
Touchscreen Display
The 1.3" touchscreen display allows easy monitoring and quick troubleshooting.
Specifications
| Management features | |
|---|---|
| Switch layer | L2/L3 |
| Switch type | Managed |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| SFP module slots quantity | 2 |
| Network | |
| Networking standards | IEEE 802.3af, IEEE 802.3at |
| Full duplex | Yes |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Port mirroring | Yes |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| Data transmission | |
| Switching capacity | 52 Gbit/s |
| Throughput | 26000 Mpps |
| Jumbo frames support | Yes |
| Static route | Yes |
| Forwarding rate | 38.69 Mpps |
| Security | |
| Authentication type | IEEE 802.1x, RADIUS |
| Design | |
| Rack mounting | Yes |
| Product colour | Silver |
| Form factor | 1U |
| LED indicators | Activity, Link, PoE, Speed, System |
| Certification | CE, FCC, IC |
| Power | |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| DC input voltage | 44 - 57 V |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) power per port | 32 W |
| Power over Ethernet plus (PoE+) ports quantity | 16 |
| Total Power over Ethernet (PoE) budget | 92 W |
| Operational conditions | |
| Operating temperature (T-T) | -5 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Virtual LAN features | |
| VLAN support | Yes |
| Weight & dimensions | |
| Width | 17.4" (442.4 mm) |
| Depth | 7.87" (200 mm) |
| Height | 1.72" (43.7 mm) |
| Weight | 6.61 lbs (3 kg) |
| Performance | |
| Harmonized System (HS) code | 85176990 |
| Certificates | |
| Certification | CE, FCC, IC |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
