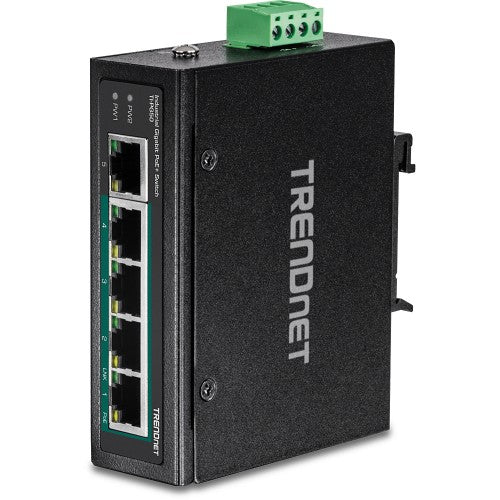

TRENDnet’s 5-Port Industrial Gigabit PoE+ DIN-Rail Switch, model TI-PG50, has four gigabit PoE+ ports with a 120W PoE power budget. Users are able to connect four PoE+ devices to this industrial switch, while simultaneously providing a non-PoE gigabit port for connectivity to the network. The TI-PG50 industrial switch is equipped with an IP30 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° – 75° C (-40° – 167° F) for industrial environments.


PoE Power
A 120W PoE+ power budget for up to four Power over Ethernet devices with PoE+ power.

Fault Tolerance
The industrial switch features redundant power inputs with overload current protection.

Industrial Design
Equipped with a rugged IP30 rated housing, designed to withstand a high degree of vibration and shock, and operate within a wide temperature range of -40° – 75° C (-40° – 167° F).

PoE+ Power Budget
Supplies up to 30W of PoE/PoE+ power per port on the industrial PoE switch with a 120W PoE power budget

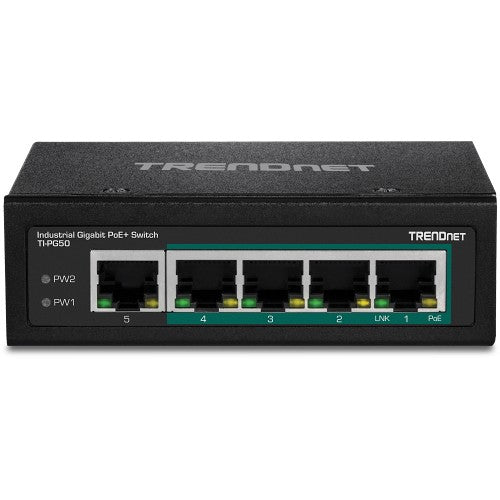

Network Ports
4 x Gigabit PoE+ ports and 1 x Gigabit port

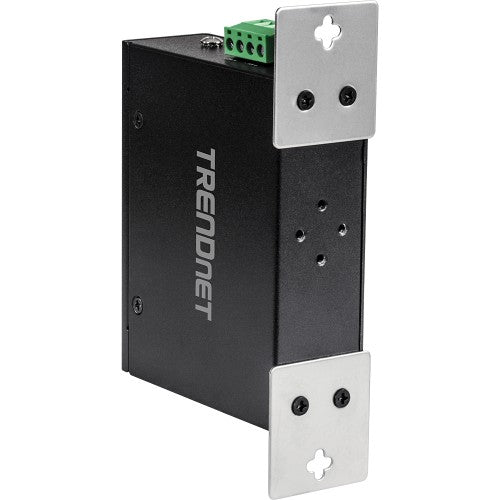

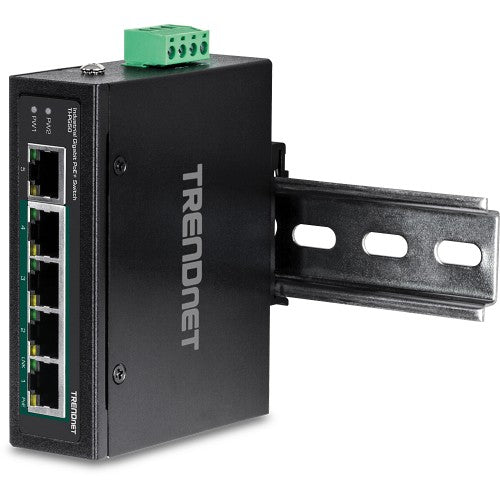

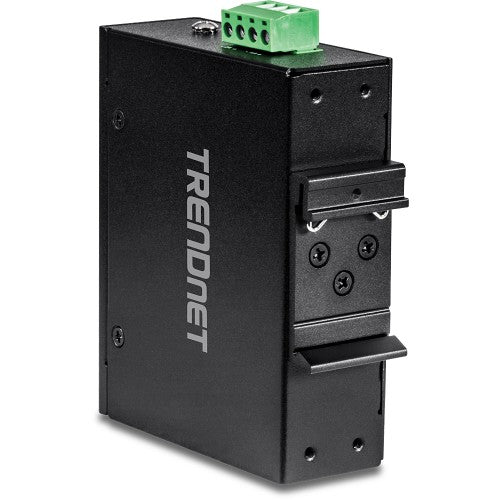

DIN-Rail/Wall Mounts
IP30 rated metal enclosure with included DIN-Rail and wall mount hardware

Switching Capacity
10Gbps switching capacity

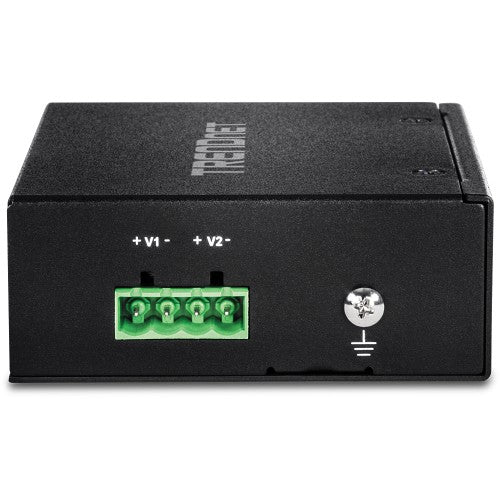

Redundant Power
Redundant power inputs with overload current protection (compatible power supply sold separately models: TI-S12048 / TI-S24048)

Jumbo Frame
Sends larger packets, or Jumbo Frames (up to 9KB), for increased performance

Extreme Temperatures
Industrial switch rated for an operating temperature range of -40° – 75° C (-40° – 167° F)

Shock and Vibration Resistant
Rated for shock (EN 60068-2-27), freefall (EN 60068-2-32), and vibration (EN 60068-2-6)

Grounding Point
Grounding point on the industrial switch protects equipment from external electrical surges

Management features
Switch type	Unmanaged
System event log	Yes
Quality of Service (QoS) support	Yes
User operation log	Yes
Configuring Location Settings (CLI)	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	4
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Copper ethernet cabling technology	1000BASE-T
Network
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Full duplex	Yes
Copper ethernet cabling technology	1000BASE-T
VLAN support	Yes
Port mirroring	Yes
Link aggregation	Yes
IP routing	Yes
Flow control support	Yes
Ethernet LAN data rates	10,100,480,800,1000 Mbit/s
Auto MDI/MDI-X	Yes
10G support	No
Auto-negotiation	Yes
Policy-based routing	Yes
IGMP snooping	Yes
Data transmission
MAC address table	2000 entries
Switching capacity	10 Gbit/s
Jumbo frames	9000
Store-and-forward	Yes
Jumbo frames support	Yes
Packet buffer memory	0.128 MB
Static route	Yes
Forwarding rate	7.44 Mpps
Security
IP-MAC-Port binding	Yes
IGMP snooping	Yes
Access Control List (ACL)	Yes
Password protection	Yes
DHCP features	DHCP client, DHCP server
Design
Rack mounting	Yes
Stackable	No
Product colour	Black
Wall mountable	Yes
LED indicators	Yes
Certification	CE, FCC, UL, Shock (IEC 60068-2-27), Freefall (IEC 60068-2-32), Vibration (IEC 60068-2-6), IEC 61000-4-2, IEC 61000-4-4, IEC 61000-4-5
Performance
Mean time between failures (MTBF)	538451 h
Stackable	No
Packet buffer memory	0.128 MB
Auto-negotiation	Yes
Harmonized System (HS) code	85176990
Power
Power supply included	No
Power consumption (max)	2.24 W
DC input voltage	48 - 56 V
Power over Ethernet (PoE)
Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) power per port	30 W
Power over Ethernet plus (PoE+) ports quantity	4
Total Power over Ethernet (PoE) budget	120 W
Power over Ethernet (PoE) type supported	Active PoE
Operational conditions
Operating temperature (T-T)	-40 - 75 °C
Operating relative humidity (H-H)	10 - 95%
Virtual LAN features
VLAN support	Yes
Weight & dimensions
Width	4.09" (104 mm)
Depth	1.26" (32 mm)
Height	3.23" (82 mm)
Weight	6.7 oz (190 g)
Packaging content
Rack mount kit	Yes
Quick start guide	Yes
Certificates
Certification	CE, FCC, UL, Shock (IEC 60068-2-27), Freefall (IEC 60068-2-32), Vibration (IEC 60068-2-6), IEC 61000-4-2, IEC 61000-4-4, IEC 61000-4-5
Packaging data
Rack mount kit	Yes
Quick start guide	Yes
Other features
Ethernet LAN data rates	10,100,480,800,1000 Mbit/s
Logistics data
Harmonized System (HS) code	85176990
