Trendnet TI-E100 network extender Network transmitter Black 10, 100, 1000 Mbit/s
121.80 CAD
Skip to product information
Out of stock
Trendnet TI-E100 network extender Network transmitter Black 10, 100, 1000 Mbit/s
Part number
TI-E100
121.80 CAD
Taxes and shipping calculated at checkout.
Enjoy Free Shipping on orders over 2000 CAD
Shipping time varies based your on location.
Specifications
Weight
0.158 kg
Shipping + Returns
Shipping Policy
Ships to: Canada & USA via UPS, DHL, & Canada Post.
Fast Dispatch: Orders before 2 PM EST process same-day.
Options: Standard (Ground) and Express (Air) shipping available.
Heavy Items: Heavy freight usually requires1-2 extra days for Processing
Returns & Refunds
Return Period: Request a return within 14 days of delivery.
Restocking Fee: 20% fee applies to non-defective/change-of-mind returns.
Condition: Items must be returned in original packaging (New or Like New).
Final Sale: Software, licenses, and special orders cannot be returned.
- Easy installation
- Extends 100m for a total distance of up to 200m (656 ft.)
- Daisy chain up to 2 units for a total PoE network extension of up to 300m (984 ft.)*
- Supports PoE (15.4W) and PoE+ (30W)
- Wide operating temperature range of -40°– 75° C (-40° – 167° F)
- Durable IP30 rated metal housing

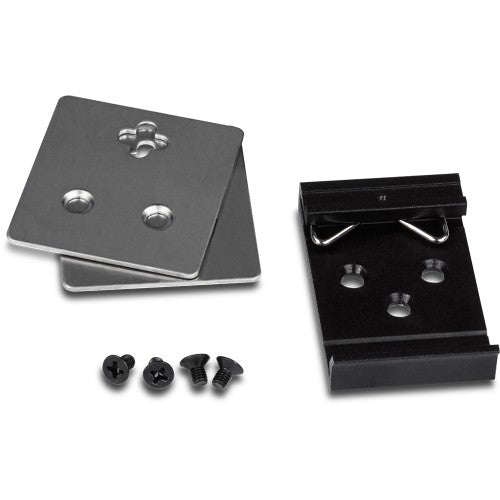

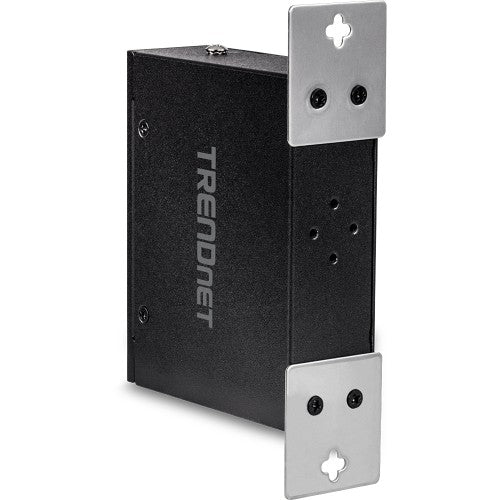

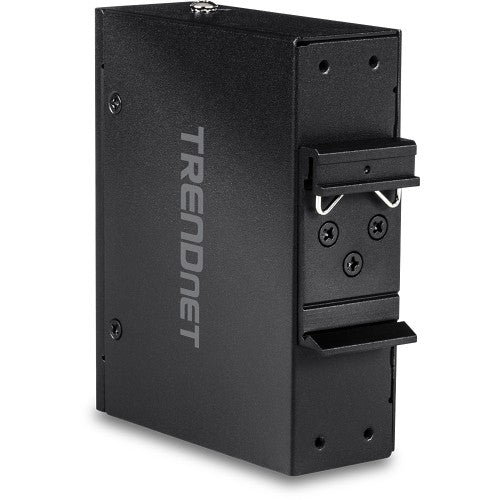

- Convenient wall mountable design
- No external power adapter required

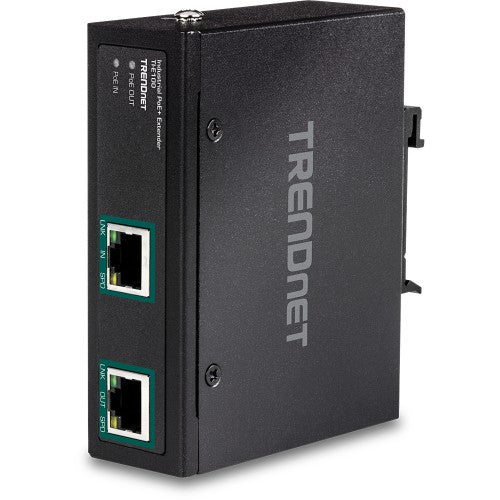

TRENDnet's Industrial Gigabit PoE+ Extender, model TI-E100, takes a single PoE+ connection and extends it an additional 100m (328 ft.) for remote PoE/PoE+ device installation. The industrial PoE+ extender auto-detects a PoE or PoE+ connection, and then extends it for a total distance of up to 200m (656 ft.) from the PoE+ power source equipment. The TI-E100 industrial PoE+ extender features a convenient wall mountable design for installation flexibility. Daisy-chain up to two industrial PoE+ extenders for a total PoE+ network extension of 300m (984 ft.).
PoE Powered
Extends a single PoE/PoE+ network connection up to an additional 100m (328 ft.) for a remote PoE or PoE+ device installation.
Daisy-Chainable
Daisy-chain up to two industrial PoE+ extenders for a total PoE+ network extension of 300m (984 ft.).
Industrial Grade Design
Built for harsh environments, with an IP30 enclosure rating, and a wide operating temperature range of -40°– 75° C (-40° – 167° F).
Extension Distance
Extends a PoE/PoE+ network connection an additional 100m for a total distance of up to 200m (656 ft.) from the PoE power source equipment
PoE/PoE+
Auto-sensing technology conveniently delivers the correct wattage needed to power your PoE (15.4W) or PoE+ (30W) device

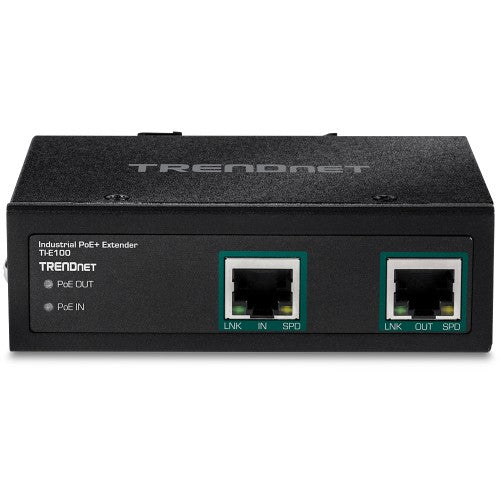

Gigabit Ports
The industrial PoE+ extender features one gigabit PoE+ input port and one gigabit PoE+ output port
PoE Powered
No external power required—saves on cost installation time
Daisy-Chain
Connect up to two TI-E100 industrial PoE+ extenders for a total PoE+ network extension of up to 300m (984 ft.)
Industrial Grade Design
Built for harsh environments, with an IP30 enclosure rating, and a wide operating temperature range of -40°– 75° C (-40° – 167° F)
LED Indicators
LED indicators to convey status
PoE Powered
Extends a single PoE/PoE+ network connection up to an additional 100m (328 ft.) for a remote PoE or PoE+ device installation.
Daisy-Chainable
Daisy-chain up to two industrial PoE+ extenders for a total PoE+ network extension of 300m (984 ft.).
Industrial Grade Design
Built for harsh environments, with an IP30 enclosure rating, and a wide operating temperature range of -40°– 75° C (-40° – 167° F).
Extension Distance
Extends a PoE/PoE+ network connection an additional 100m for a total distance of up to 200m (656 ft.) from the PoE power source equipment
PoE/PoE+
Auto-sensing technology conveniently delivers the correct wattage needed to power your PoE (15.4W) or PoE+ (30W) device
Gigabit Ports
The industrial PoE+ extender features one gigabit PoE+ input port and one gigabit PoE+ output port
PoE Powered
No external power required—saves on cost installation time
Daisy-Chain
Connect up to two TI-E100 industrial PoE+ extenders for a total PoE+ network extension of up to 300m (984 ft.)
Industrial Grade Design
Built for harsh environments, with an IP30 enclosure rating, and a wide operating temperature range of -40°– 75° C (-40° – 167° F)
LED Indicators
LED indicators to convey status
| Performance | |
|---|---|
| Type | Network transmitter |
| Maximum transfer distance | 3937" (100 m) |
| MAC address table | 2000 entries |
| Duplex system | Full, Half |
| International Protection (IP) code | IP30 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Power over Ethernet (PoE) | Yes |
| Data transfer rate | 2000 Mbit/s |
| Jumbo frames support | Yes |
| Network | |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x |
| Design | |
| Certification | CE, FCC IEC EN60950-1 IEC 60068-2-27 IEC 60068-2-32 IEC 60068-2-6 |
| LED indicators | Yes |
| Housing material | Metal |
| Product colour | Black |
| Power | |
| Power over Ethernet (PoE) | Yes |
| Power consumption (max) | 3.5 W |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 75 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Weight & dimensions | |
| Width | 6.22" (158 mm) |
| Depth | 3.15" (80 mm) |
| Height | 1.26" (32 mm) |
| Weight | 5.57 oz (158 g) |
| Packaging content | |
| Wall mounting kit | Yes |
| Quick start guide | Yes |
| Technical details | |
| Type | Network transmitter |
| Maximum transfer distance | 3937" (100 m) |
| MAC address table | 2000 entries |
| Duplex system | Full, Half |
| International Protection (IP) code | IP30 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Power over Ethernet (PoE) | Yes |
| Data transfer rate | 2000 Mbit/s |
| LED indicators | Yes |
| Jumbo frames support | Yes |
| Harmonized System (HS) code | 85176990 |
| Certificates | |
| Certification | CE, FCC IEC EN60950-1 IEC 60068-2-27 IEC 60068-2-32 IEC 60068-2-6 |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
