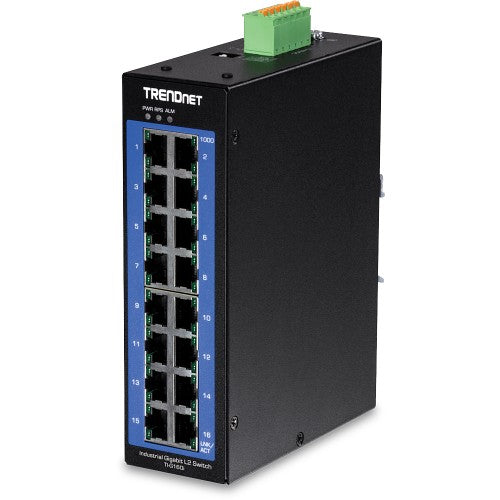

TRENDnet’s 16-Port Industrial Gigabit L2 Managed DIN-Rail Switch, model TI-G160i, delivers advanced management features with a 32Gbps switching capacity. Users are able to connect sixteen devices to the switch for high speed gigabit network connections. The switch is equipped with an IP30 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° – 75° C (-40° – 167° F) for industrial environments. Advanced traffic management controls, troubleshooting, and SNMP monitoring support make this a powerful solution for SMB networks.

Shock and Vibration Resistant
The industrial layer 2 managed switches are rated for shock (EN 60068-2-27), freefall (EN 60068-2-32), and vibration (EN 60068-2-6).

Integration Flexibility
Managed layer 2 features include VLAN, IGMP snooping, QoS, RMON, SNMP trap, and syslog for monitoring and flexible network integration.

Industrial Design
Equipped with an IP30 rated metal enclosure, the industrial layer 2 managed switch operates within a wide temperature range of -40° – 75° C (-40° – 167° F).

Network Ports
16 Gigabit Ports

Traffic Management
A broad range of network configurations are supported by: 802.3ad link aggregation, Private VLAN, 802.1Q VLAN, RTSP, Loopback Detection, 802.1p Class of Service (CoS), port bandwidth management, and QoS queue scheduling

Access Control
Features such as ACL, MAC/port filtering, 802.1X, and RADIUS are compatible with layered access controls

Monitoring
RMON, SNMP, SNMP Trap, and Port Mirroring support administrator monitoring solutions

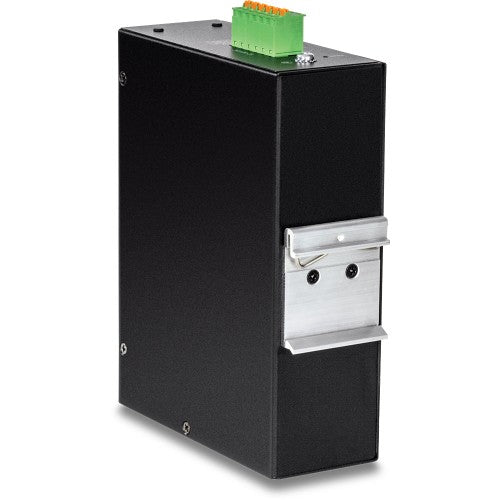

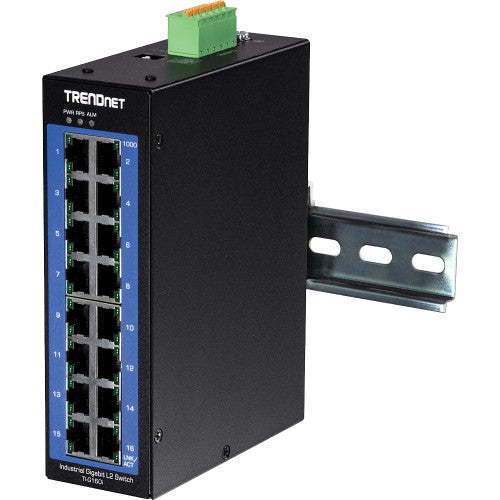

DIN-Rail Mount
IP30 rated metal enclosure includes DIN-rail mounting bracket

Switching Capacity
32Gbps switching capacity

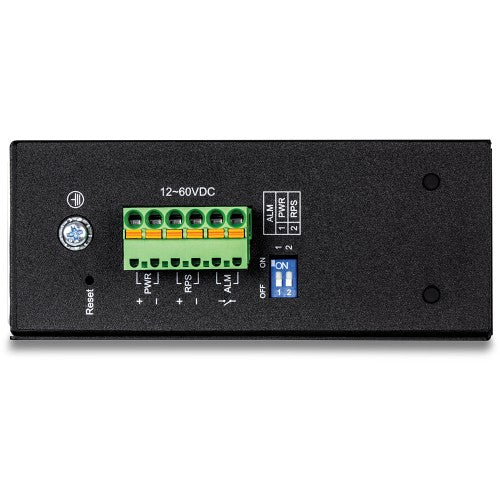

Redundant Power
Redundant power inputs with overload current protection (power supply sold separately: TI-M6024)

Alarm Relay
Alarm relay triggered by power failure of primary and/or redundant power

Jumbo Frame
Sends larger packets, or Jumbo Frames (up to 10KB), for increased performance

Extreme Temperatures
Industrial switch is rated for a wide operating temperature range of -40 – 75° C (-40 – 167° F)

Shock and Vibration Resistant
Rated for shock (EN 60068-2-27), freefall (EN 60068-2-32), and vibration (EN 60068-2-6)

Grounding Point
Grounding point protects equipment from external electrical surges

Management features
Switch layer	L2
Switch type	Managed
Web-based management	Yes
System event log	Yes
Quality of Service (QoS) support	Yes
Multicast support	Yes
MIB support	II RFC 1213, RFC 1493
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	16
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Network
Networking standards	IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Full duplex	Yes
Number of VLANs	4094
VLAN support	Yes
Spanning tree protocol	Yes
Port mirroring	Yes
Link aggregation	Yes
Broadcast storm control	Yes
10G support	No
Virtual LAN features	MAC address-based VLAN, Tagged VLAN
IGMP snooping	Yes
Data transmission
MAC address table	8000 entries
Switching capacity	32 Gbit/s
Jumbo frames	10000
Store-and-forward	Yes
Jumbo frames support	Yes
Packet buffer memory	128 MB
Forwarding rate	23.8 Mpps
Multicast MAC address table	256 entries
Number of VLANs	4094
Security
BPDU filtering/protection	Yes
Security algorithms	SNMP, SNMPv3, SSH-2
IGMP snooping	Yes
Access Control List (ACL)	Yes
Queue scheduling algorithms	SP, WFQ, Weighted Round Robin (WRR)
DHCP features	DHCP relay, DHCP server, DHCP snooping
Multicast features
Multicast MAC address table	256 entries
Multicast support	Yes
Design
Rack mounting	No
Product colour	Black
DIN rail mounting	Yes
LED indicators	Yes
International Protection (IP) code	IP30
Housing material	Metal
Certification	CE, FCC IEC 60068-2-27, IEC 60068-2-32, IEC 60068-2-6
Performance
Mean time between failures (MTBF)	1072674 h
Packet buffer memory	128 MB
Harmonized System (HS) code	85176990
Power
Power consumption (max)	12 W
DC input voltage	12 - 60 V
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Operational conditions
Operating temperature (T-T)	-40 - 75 °C
Operating relative humidity (H-H)	0 - 95%
Virtual LAN features
Number of VLANs	4094
VLAN support	Yes
Virtual LAN features	MAC address-based VLAN, Tagged VLAN
Weight & dimensions
Width	6.3" (160 mm)
Depth	4.72" (120 mm)
Height	1.97" (50 mm)
Weight	31.2 oz (884 g)
Packaging content
Quick start guide	Yes
Certificates
Certification	CE, FCC IEC 60068-2-27, IEC 60068-2-32, IEC 60068-2-6
Packaging data
Quick start guide	Yes
Logistics data
Harmonized System (HS) code	85176990
