Trendnet TI-PE50 network switch Unmanaged Fast Ethernet (10/100) Power over Ethernet (PoE) Black
129.41 CAD
Skip to product information
Out of stock
Trendnet TI-PE50 network switch Unmanaged Fast Ethernet (10/100) Power over Ethernet (PoE) Black
Part number
TI-PE50
129.41 CAD
Taxes and shipping calculated at checkout.
Enjoy Free Shipping on orders over 2000 CAD
Shipping time varies based your on location.
Specifications
Weight
0.16 kg
Shipping + Returns
Shipping Policy
Ships to: Canada & USA via UPS, DHL, & Canada Post.
Fast Dispatch: Orders before 2 PM EST process same-day.
Options: Standard (Ground) and Express (Air) shipping available.
Heavy Items: Heavy freight usually requires1-2 extra days for Processing
Returns & Refunds
Return Period: Request a return within 14 days of delivery.
Restocking Fee: 20% fee applies to non-defective/change-of-mind returns.
Condition: Items must be returned in original packaging (New or Like New).
Final Sale: Software, licenses, and special orders cannot be returned.
- 4 x Fast Ethernet PoE+ ports
- 1 x Fast Ethernet port
- 90W PoE power budget
- 1Gbps switching capacity
- Hardened IP30 rated metal switch

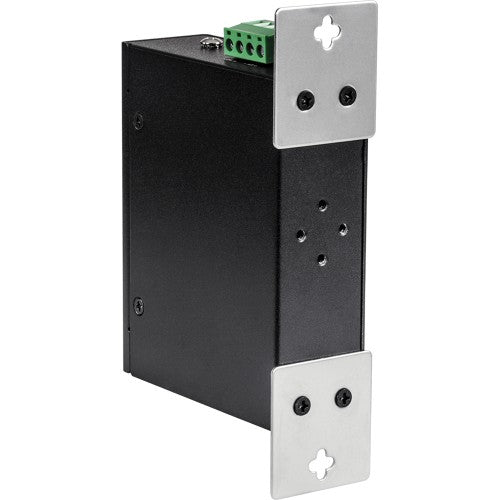

- Includes DIN-Rail mount and wall mount brackets
- Wide operating temperature range of -40° – 75°C (-40° – 167°F)

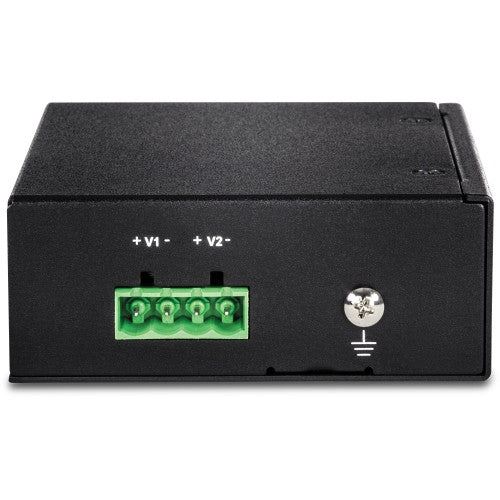

- Dual inputs provide redundant power with overload current protection
- Power supply sold separately (model: TI-S12048)
TRENDnet’s Industrial Fast Ethernet PoE+ DIN-Rail Switches feature a rugged IP30 rated metal enclosure. These industrial unmanaged PoE+ switches are designed to withstand a high degree of vibration and shock, while operating in both high and low temperatures for industrial environments within -40° – 75° C (-40° – 167° F). Redundant power inputs with overload current protection on each industrial unmanaged PoE+ switch minimizes network downtime.
Installers and integrators can save on equipment costs and reduce installation time with TRENDnet’s Industrial Fast Ethernet Switches by delivering up to 30W per port of PoE power and data over existing Ethernet cables. With PoE technology, users only need one set of cables to deliver both data and power from the industrial unmanaged PoE+ switch. With these industrial unmanaged PoE+ switches, easily network PoE devices such as high-power wireless access points, PTZ and other advanced IP cameras, VoIP phone systems, IPTV decoders, access controls, and more.
Installers and integrators can save on equipment costs and reduce installation time with TRENDnet’s Industrial Fast Ethernet Switches by delivering up to 30W per port of PoE power and data over existing Ethernet cables. With PoE technology, users only need one set of cables to deliver both data and power from the industrial unmanaged PoE+ switch. With these industrial unmanaged PoE+ switches, easily network PoE devices such as high-power wireless access points, PTZ and other advanced IP cameras, VoIP phone systems, IPTV decoders, access controls, and more.
| Management features | |
|---|---|
| Switch type | Unmanaged |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Fast Ethernet (copper) ports quantity | 5 |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX |
| Network | |
| Networking standards | IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x |
| Full duplex | Yes |
| MAC address auto-learning supported | Yes |
| MAC address auto-aging supported | Yes |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX |
| 10G support | No |
| Auto-negotiation | Yes |
| Data transmission | |
| MAC address table | 1024 entries |
| Switching capacity | 1 Gbit/s |
| Store-and-forward | Yes |
| Forwarding rate | 0.1488 Mpps |
| Design | |
| Rack mounting | No |
| Product colour | Black |
| DIN rail mounting | Yes |
| Wall mountable | Yes |
| LED indicators | Yes |
| International Protection (IP) code | IP30 |
| Housing material | Metal |
| Certification | CE, FCC |
| Performance | |
| Mean time between failures (MTBF) | 708903 h |
| Auto-negotiation | Yes |
| Harmonized System (HS) code | 85176990 |
| Power | |
| Power protection features | Overload |
| Power consumption (max) | 2.24 W |
| Redundant power supply (RPS) support | Yes |
| DC input voltage | 48 - 56 V |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 4 |
| Total Power over Ethernet (PoE) budget | 90 W |
| Power protection features | Overload |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 75 °C |
| Weight & dimensions | |
| Width | 4.06" (103 mm) |
| Depth | 3.23" (82 mm) |
| Height | 1.22" (31 mm) |
| Weight | 5.64 oz (160 g) |
| Packaging content | |
| Quick start guide | Yes |
| Certificates | |
| Certification | CE, FCC |
| Packaging data | |
| Quick start guide | Yes |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
