PoE Power
The industrial variable voltage PoE switch features a 200W PoE+ power budget, and supplies up to eight Power over Ethernet devices with PoE+ power.
Fault Tolerance
The industrial variable voltage PoE switch features dual 24V – 56V DC power inputs for redundancy with overload current protection.
Industrial Design
Equipped with a rugged IP30 rated housing, resistant to a high degree of vibration and shock, and operates within a wide temperature range of -40° – 75° C (-40° – 167° F).
PoE+ Power Budget
Supplies up to 30W of PoE power per port on the industrial variable voltage switch with a 200W PoE power budget
Network Ports
8 x Gigabit PoE+ ports
DIN-Rail/Wall Mounts
IP30 rated metal enclosure with DIN-Rail and wall mount hardware included
Switching Capacity
16Gbps switching capacity

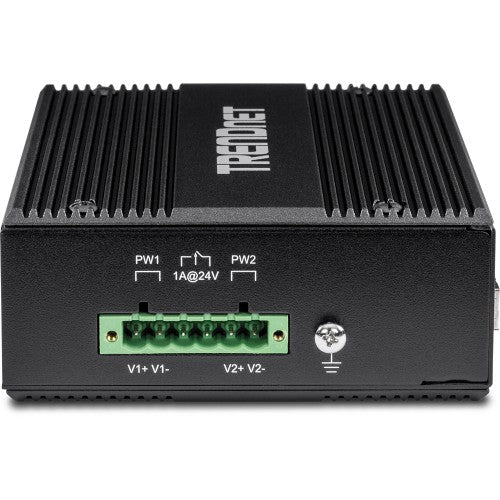

Redundant Power
Dual 24V – 56V DC power inputs with overload current protection (compatible power supplies for this industrial variable voltage PoE+ switch sold separately, models: TI-S24048, TI-S12024)
Jumbo Frame
Sends larger packets, or Jumbo Frames (up to 9KB), for increased performance on the variable voltage switch
Wide Operating Temperature
Industrial variable voltage switch rated for an operating temperature range of -40° – 75° C (-40° – 167° F)
Shock and Vibration Resistant
Rated for shock (EN 60068-2-27), freefall (EN 60068-2-32), and vibration (EN 60068-2-6)
Grounding Point
Grounding point on the industrial variable voltage switch protects equipment from external electrical surges

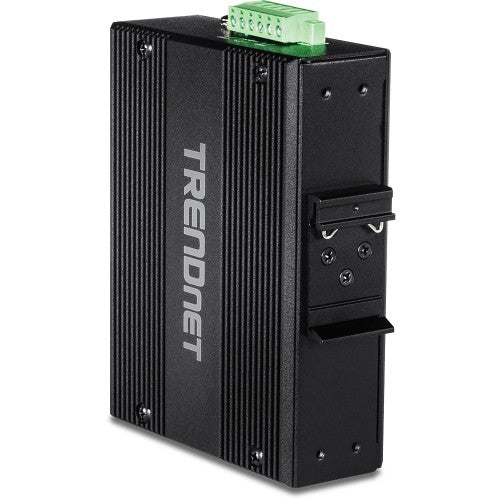

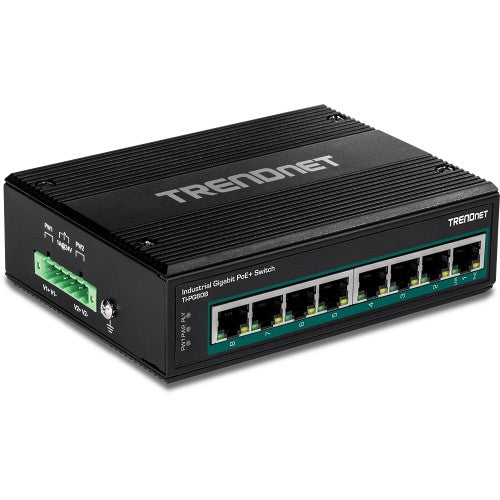

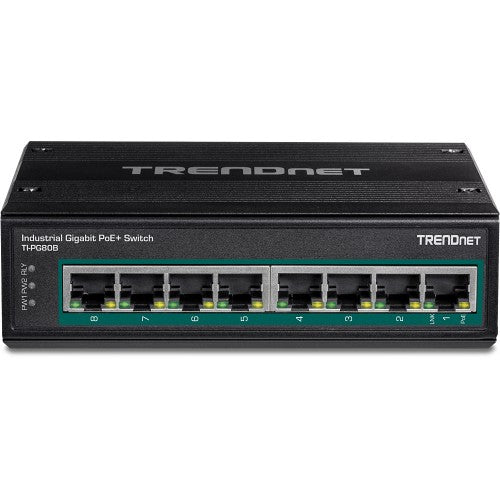

Trendnet TI-PG80B network switch Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
Part number
TI-PG80B
$350.14 CAD
16Gbps, 11.9Mpps, 8x 1G RJ-45, PoE+, IP30, 142x105x36 mm
Key Features
- 8 x Gigabit PoE+ ports
- PoE power budget 120W@24V – 200W@48V
- 16Gbps switching capacity
- Hardened IP30 rated metal switch
- Includes DIN-Rail and wall mounts
- Operating temperature range of -40° – 75° C (-40° – 167° F)
- Dual 24 – 56V DC power inputs for redundancy
- Power supply sold separately (models: TI-S24048, TI-S12024)
Description
TRENDnet's 8-Port Industrial Gigabit PoE+ DIN-Rail Switch, model TI-PG80B, is an industrial variable voltage switch with eight gigabit PoE+ ports and a 200W PoE power budget. Users are able to connect eight PoE+ devices to this industrial variable voltage PoE+ switch for high-speed connectivity to the network. The industrial variable voltage PoE+ switch is equipped with a rugged IP30 rated metal enclosure, and designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° – 75° C (-40° – 167° F) for industrial environments. Dual 24 – 56V DC power inputs on the industrial variable voltage switch provide redundancy with power failure alarm relay.PoE Power
The industrial variable voltage PoE switch features a 200W PoE+ power budget, and supplies up to eight Power over Ethernet devices with PoE+ power.
Fault Tolerance
The industrial variable voltage PoE switch features dual 24V – 56V DC power inputs for redundancy with overload current protection.
Industrial Design
Equipped with a rugged IP30 rated housing, resistant to a high degree of vibration and shock, and operates within a wide temperature range of -40° – 75° C (-40° – 167° F).
PoE+ Power Budget
Supplies up to 30W of PoE power per port on the industrial variable voltage switch with a 200W PoE power budget
Network Ports
8 x Gigabit PoE+ ports

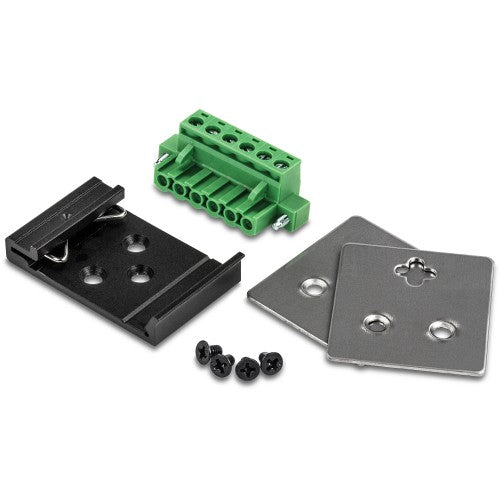

DIN-Rail/Wall Mounts
IP30 rated metal enclosure with DIN-Rail and wall mount hardware included
Switching Capacity
16Gbps switching capacity
Redundant Power
Dual 24V – 56V DC power inputs with overload current protection (compatible power supplies for this industrial variable voltage PoE+ switch sold separately, models: TI-S24048, TI-S12024)
Jumbo Frame
Sends larger packets, or Jumbo Frames (up to 9KB), for increased performance on the variable voltage switch
Wide Operating Temperature
Industrial variable voltage switch rated for an operating temperature range of -40° – 75° C (-40° – 167° F)
Shock and Vibration Resistant
Rated for shock (EN 60068-2-27), freefall (EN 60068-2-32), and vibration (EN 60068-2-6)
Grounding Point
Grounding point on the industrial variable voltage switch protects equipment from external electrical surges
Specifications
| Ports & interfaces | |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Network | |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x |
| Full duplex | Yes |
| 10G support | No |
| Half duplex | Yes |
| Data transmission | |
| MAC address table | 4000 entries |
| Switching capacity | 16 Gbit/s |
| Jumbo frames | 9000 |
| Jumbo frames support | Yes |
| Packet buffer memory | 1 MB |
| Forwarding rate | 11.9 Mpps |
| Design | |
| Rack mounting | No |
| Product colour | Black |
| DIN rail mounting | Yes |
| Wall mountable | Yes |
| LED indicators | Yes |
| International Protection (IP) code | IP30 |
| Housing material | Metal |
| Certification | CE FCC IEC 60068-2-27 IEC 60068-2-32 IEC 60068-2-6 IEC 61000-4-2 IEC 61000-4-4 IEC 61000-4-5 |
| Performance | |
| Mean time between failures (MTBF) | 529765 h |
| Packet buffer memory | 1 MB |
| Harmonized System (HS) code | 85176990 |
| Power | |
| Power consumption (max) | 5.3 W |
| DC input voltage | 24 - 56 V |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Total Power over Ethernet (PoE) budget | 200 W |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 75 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Weight & dimensions | |
| Width | 5.59" (142 mm) |
| Depth | 4.13" (105 mm) |
| Height | 1.42" (36 mm) |
| Weight | 21.9 oz (622 g) |
| Packaging content | |
| Quick start guide | Yes |
| Certificates | |
| Certification | CE FCC IEC 60068-2-27 IEC 60068-2-32 IEC 60068-2-6 IEC 61000-4-2 IEC 61000-4-4 IEC 61000-4-5 |
| Packaging data | |
| Quick start guide | Yes |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
