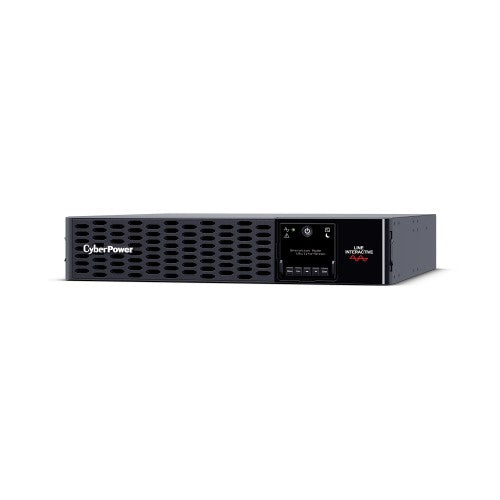

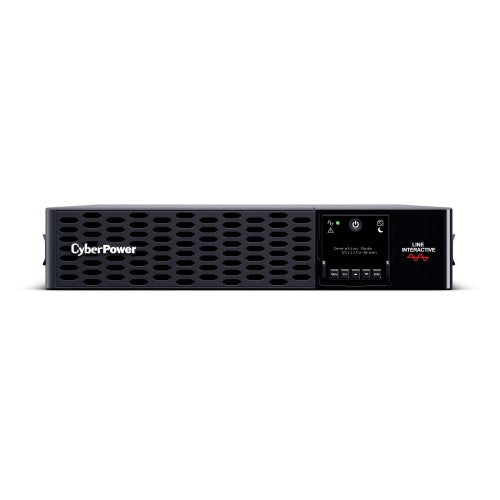

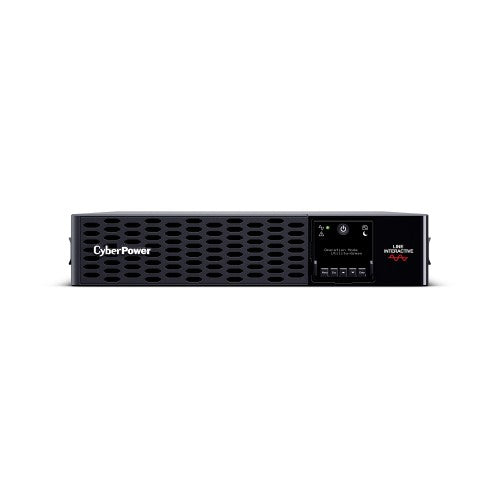

The PR2200RTXL2UAN is a Smart App Sinewave rack/tower convertible UPS with line-interactive topology, surge protection, and battery backup. CyberPower’s Smart App Sinewave series creates a sine wave output devoid of power gaps which could cause unexpected shutdowns of sensitive equipment.

The Smart App Sinewave PR2200RTXL2UAN improves battery life through battery equalization technology and Automatic Voltage Regulation (AVR), which corrects minor power fluctuations without switching to battery power. The enhanced chassis design with an easy-to-access toolless front panel, captive screws for battery panel access, and color-coded rear panel make battery changes and installations simple and fast. The PR2200RTXL2UAN also has an innovative LCD panel that rotates 90°, tilts for a better viewing angle, and provides information on 47 different settings including UPS stats, UPS setup and control management, and testing options.

This model accepts the BP48VP2U03 Extended Battery Module (EBM) for expanded runtime during power outages and includes pre-installed RMCARD205 network management card for remote management and control via a standard web browser or network management system.

With a $400,000 connected equipment guarantee and a three-year warranty, you can trust CyberPower’s commitment to the quality of the PR2200RTXL2UAN.

Battery Backup
Supplies power long enough for equipment to properly shut down when utility power fails. Helps prevent loss of data and minimizes the component stress caused by a hard shutdown.

Line-Interactive Topology
Exists when a line-interactive UPS has an autotransformer that regulates low voltages (e.g., brownouts) and over voltages (e.g., spikes) without having to switch to battery.

Automatic Voltage Regulation (AVR)
Provides clean, consistent AC power by automatically increasing (boosting) low voltage without using battery power when incoming utility power experiences minor fluctuations.

Sine Wave Output
Provides power protection to ENERGY STAR® 6.0 systems with Active PFC power supplies.

Battery Equalization Technology
Battery Equalization is an advanced charging process that maintains the voltages of the batteries at the same level to increase battery life.

Fast Charge Technology
Allows UPS batteries to return to full capacity more rapidly by using a built-in charger inside of each UPS or EBM.

Rotatable Multifunction LCD Panel
Tilts to provide a better viewing angle when the Smart App Sinewave is mounted low. Rotates 90° when placed in a tower format for horizontal viewing. Provides information on 47 different settings that include UPS status, UPS setup and control management, and testing options.

Toolless Battery Panel Access
Makes battery replacement fast and simple. The faceplate features side latches for easy removal, and captive screws can be loosened by hand to open the battery cover.

Extended Battery Modules (EBMs)
Use Fast Charge Technology to quickly restore full backup power to a UPS system. They also extend runtime.

Surge Protection
Diverts excess voltage away from sensitive electronic equipment during an AC power surge or power spike to prevent damage.

Data-Line Protection
Prevents power surges that travel through Ethernet lines from causing damage to electronics.

GreenPower UPS™ Bypass Design
Is a patented design that allows utility power to bypass the UPS transformer, when AC power is stable, which reduces energy consumption, noise, and heat buildup.

Rack/Tower Versatility
Allows for horizontal rack or vertical tower installation.

PowerPanel® Business Edition Software
Provides IT professionals with tools for monitoring and managing the UPS and backup power. This software offers remote management functionality. Free software download available. See the Resources tab.
ENERGY STAR
This model is an ENERGY STAR® certified Uninterruptible Power Supply (UPS) system. ENERGY STAR is the trusted, government-backed symbol for energy-efficient products and practices that help save money and protect the environment.

Power
Output power capacity	2.2 kVA
Output power	2200 W
Input operation voltage (min)	70 V
Input operation voltage (max)	155 V
Output operation voltage (min)	100 V
Output operation voltage (max)	120 V
Surge energy rating	2430 J
Maximum current	30 A
Output voltage regulation	1%
Output frequency	50/60 Hz
Input frequency	47/63 Hz
Ports & interfaces
Cable length	118.1" (3 m)
AC outlets quantity	8 AC outlet(s)
Power plug	NEMA L5-30P
Emergency Power Off (EPO) connector	Yes
USB port	Yes
Serial interface	Yes
Ethernet LAN (RJ-45) ports	1
Performance
UPS topology	Line-Interactive
Audible alarm modes	Low battery alarm, Overload alarm
Response time	4 ms
EMI/RFI noise filtering	Yes
Waveform	Sine
Automatic Voltage Regulation (AVR)	Yes
Noise level	57.5 dB
LED indicators	Yes
Audible alarm(s)	Yes
Features
UPS topology	Line-Interactive
Output power capacity	2.2 kVA
Audible alarm modes	Low battery alarm, Overload alarm
Response time	4 ms
Output power	2200 W
Input operation voltage (min)	70 V
Input operation voltage (max)	155 V
Output operation voltage (min)	100 V
Output operation voltage (max)	120 V
Surge energy rating	2430 J
Maximum current	30 A
EMI/RFI noise filtering	Yes
Waveform	Sine
Output voltage regulation	1%
Output frequency	50/60 Hz
Automatic Voltage Regulation (AVR)	Yes
Noise level	57.5 dB
Audible alarm(s)	Yes
Input frequency	47/63 Hz
Battery
Battery technology	Sealed Lead Acid (VRLA)
Number of battery cells	8
Battery recharge time	3 h
Typical backup time at half load	16.1 min
Typical backup time at full load	6.3 min
Hot-swap battery	Yes
Battery voltage	12 V
Battery capacity	6 Ah
Replacement battery cartridge	RB1260X8
Design
Form factor	Tower
Rack capacity	2U
Product colour	Black
Safety	UL1778, cUL107.1, FCC Class A
Cable length	118.1" (3 m)
LED indicators	Yes
Housing material	Metal
Display type	LCD
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 45 °C
Operating relative humidity (H-H)	0 - 90%
Storage relative humidity (H-H)	0 - 95%
Technical details
Output frequency	50/60 Hz
Sustainability certificates	ENERGY STAR
Compliance certificates	RoHS
Weight & dimensions
Width	1.71" (43.4 mm)
Depth	2.48" (63 mm)
Height	0.34" (8.64 mm)
Weight	93 lbs (42.2 kg)
Package width	2.25" (57.1 mm)
Package depth	2.98" (75.6 mm)
Package height	1.05" (26.7 mm)
Package weight	111.1 lbs (50.4 kg)
Packaging data
Cables included	Input power cable
Package width	2.25" (57.1 mm)
Package depth	2.98" (75.6 mm)
Package height	1.05" (26.7 mm)
Package weight	111.1 lbs (50.4 kg)
Certificates
Safety	UL1778, cUL107.1, FCC Class A
Packaging content
Cables included	Input power cable
