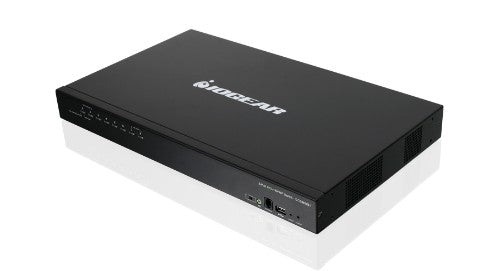

iogear GCS1808H KVM switch Rack mounting Black
666.03 CAD
Skip to product information
2 left
iogear GCS1808H KVM switch Rack mounting Black
Part number
GCS1808H
666.03 CAD
Taxes and shipping calculated at checkout.
Enjoy Free Shipping on orders over 2000 CAD
Shipping time varies based your on location.
Specifications
Weight
5.18 kg
Shipping + Returns
Shipping Policy
Ships to: Canada & USA via UPS, DHL, & Canada Post.
Fast Dispatch: Orders before 2 PM EST process same-day.
Options: Standard (Ground) and Express (Air) shipping available.
Heavy Items: Heavy freight usually requires1-2 extra days for Processing
Returns & Refunds
Return Period: Request a return within 14 days of delivery.
Restocking Fee: 20% fee applies to non-defective/change-of-mind returns.
Condition: Items must be returned in original packaging (New or Like New).
Final Sale: Software, licenses, and special orders cannot be returned.
- Controls up to 8 HDMI® sources while sharing 2 additional USB 2.0 devices
- Supports up to 1080p (1920 x 1200) HD video resolution
- Cascade up to 3 levels - Control up to 512 computers from a single console
- Features 2 built-in USB 2.0 ports for USB peripheral sharing
- Multi-display feature allows viewing of up to 8 monitors when stacking up to (8) GCS1808H together
8-Port HDMI KVMP Switch
IOGEAR's 8-port USB HDMI KVMP Switch allows you to control and access up to 8 computers from a single USB keyboard, USB mouse, and an HDMI monitor console. Experience high definition video resolution to 1080p (1920 x 1200) while sharing USB 2.0 peripherals and listening to 2.1 stereo surround sound.
Expanded Connectivity
IOGEAR's 8-Port USB HDMI KVMP Switch is designed to control up to 512 computers by cascading three levels of the GCS1808H. The built-in USB 2.0 hub allows peripheral sharing between the connected system and is backwards compatible with USB 1.1. Administrators can easily broadcast messages, announcements, firmware updates, or notifications to all connected sources.
EDID Support
IOGEAR's Video DynaSync™ technology optimizes the display resolution by reading and remembering the monitor's parameters (EDID) so there is no delay or change in video resolution when switching between, or booting computers.
Simple Switching Methods

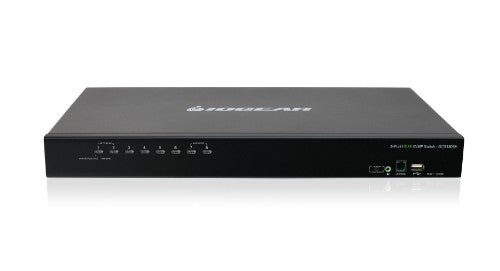

Easily switch between connected computers by either manually pressing the front panel push-buttons, entering hotkey combinations from the keyboard, or via the On-Screen Display (OSD) system. The KVM's convenient Auto-Scan feature permits automatic scanning and monitoring of activities on all connected devices.
2.1 Surround Sound
This 8-port HDMI KVMP switch provides 2.1 audio support allowing you to enjoy stereo surround sound through connected speakers.
Multi-Display Setup
Enhance productivity and view all connected sources on up to eight displays by stacking eight (8) IOGEAR GCS1808H together.
IOGEAR's 8-port USB HDMI KVMP Switch allows you to control and access up to 8 computers from a single USB keyboard, USB mouse, and an HDMI monitor console. Experience high definition video resolution to 1080p (1920 x 1200) while sharing USB 2.0 peripherals and listening to 2.1 stereo surround sound.
Expanded Connectivity
IOGEAR's 8-Port USB HDMI KVMP Switch is designed to control up to 512 computers by cascading three levels of the GCS1808H. The built-in USB 2.0 hub allows peripheral sharing between the connected system and is backwards compatible with USB 1.1. Administrators can easily broadcast messages, announcements, firmware updates, or notifications to all connected sources.
EDID Support
IOGEAR's Video DynaSync™ technology optimizes the display resolution by reading and remembering the monitor's parameters (EDID) so there is no delay or change in video resolution when switching between, or booting computers.
Simple Switching Methods
Easily switch between connected computers by either manually pressing the front panel push-buttons, entering hotkey combinations from the keyboard, or via the On-Screen Display (OSD) system. The KVM's convenient Auto-Scan feature permits automatic scanning and monitoring of activities on all connected devices.
2.1 Surround Sound
This 8-port HDMI KVMP switch provides 2.1 audio support allowing you to enjoy stereo surround sound through connected speakers.
Multi-Display Setup
Enhance productivity and view all connected sources on up to eight displays by stacking eight (8) IOGEAR GCS1808H together.
| Video | |
|---|---|
| HD type | Full HD |
| Video bandwidth | 60 Hz |
| Maximum resolution | 1920 x 1200 pixels |
| Ports & interfaces | |
| Number of computers controlled | 8 |
| Keyboard port type | USB |
| USB connector type | USB Type-A |
| Mouse port type | USB |
| Video port type | HDMI |
| Audio connections | Yes |
| Headphone outputs | 10 |
| HDMI ports quantity | 9 |
| HDCP | Yes |
| DC-in jack | Yes |
| Console USB ports quantity | 2 |

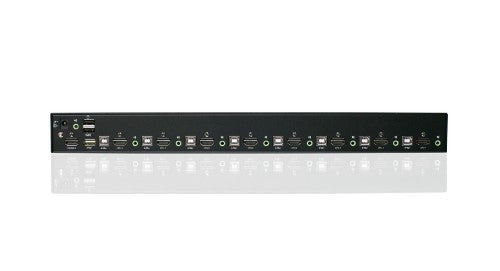

| Console ports | 3.5mm headphone, HDMI, USB A |
| USB 2.0 Type-B ports quantity | 8 |
| USB 2.0 Type-A hub ports quantity | 2 |
| Performance | |
| HD type | Full HD |
| Video bandwidth | 60 Hz |
| Maximum resolution | 1920 x 1200 pixels |
| Scan interval | 1,255 s |
| HDCP | Yes |
| Daisy chain | Yes |
| Design | |
| Product colour | Black |
| Rack mounting | Yes |
| LED indicators | Yes |
| Cascadable | Yes |
| Rack capacity | 1U |
| Housing material | Metal |
| Display | |
| Built-in display | No |
| On Screen Display (OSD) | Yes |
| Power | |
| Power source | DC |
| Power consumption (typical) | 12.2 W |
| System requirements | |
| Windows operating systems supported | Windows 10, Windows 7, Windows 8, Windows 8.1, Windows Vista |
| Linux operating systems supported | Yes |
| Mac operating systems supported | Mac OS 9.0, Mac OS 9.1, Mac OS 9.2, Mac OS X 10.0 Cheetah, Mac OS X 10.1 Puma, Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.2 Jaguar, Mac OS X 10.3 Panther, Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks |
| Technical details | |
| Cascadable | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Width | 17" (431.8 mm) |
| Depth | 10" (254 mm) |
| Height | 1.75" (44.5 mm) |
| Weight | 7.76 lbs (3.52 kg) |
| Package width | 19.8" (501.7 mm) |
| Package depth | 5.24" (133 mm) |
| Package height | 12.8" (323.9 mm) |
| Package weight | 11.4 lbs (5.18 kg) |
| Packaging data | |
| Package width | 19.8" (501.7 mm) |
| Package depth | 5.24" (133 mm) |
| Package height | 12.8" (323.9 mm) |
| Package weight | 11.4 lbs (5.18 kg) |

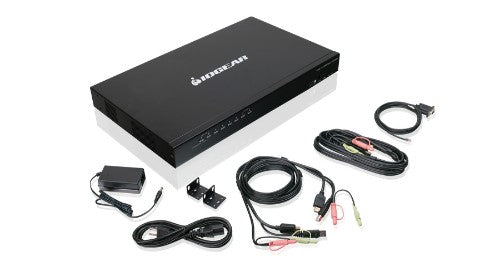

| Packaging content | |
| Rack mount kit | Yes |
| Cables included | KVM |
| Quick installation guide | Yes |
| AC adapter included | Yes |
| Logistics data | |
| Master (outer) case width | 20.5" (520 mm) |
| Master (outer) case length | 17" (431.8 mm) |
| Master (outer) case height | 14" (355.6 mm) |
| Master (outer) case gross weight | 34.8 lbs (15.8 kg) |
| Products per master (outer) case | 3 pc(s) |
